NFYB21003U Fluid Mechanics

Introduction to Dynamical Systems and Chaos

Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7

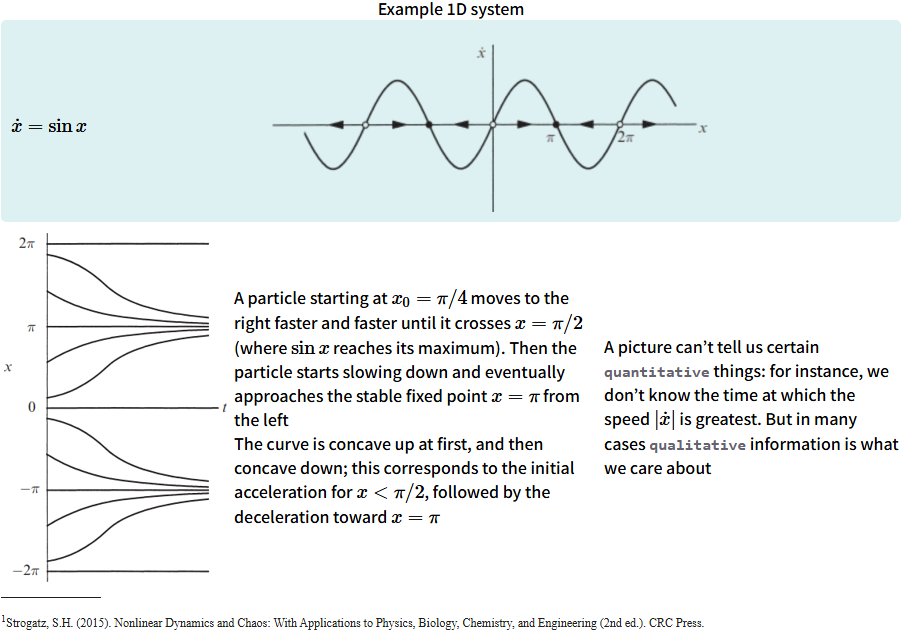

Slide 8

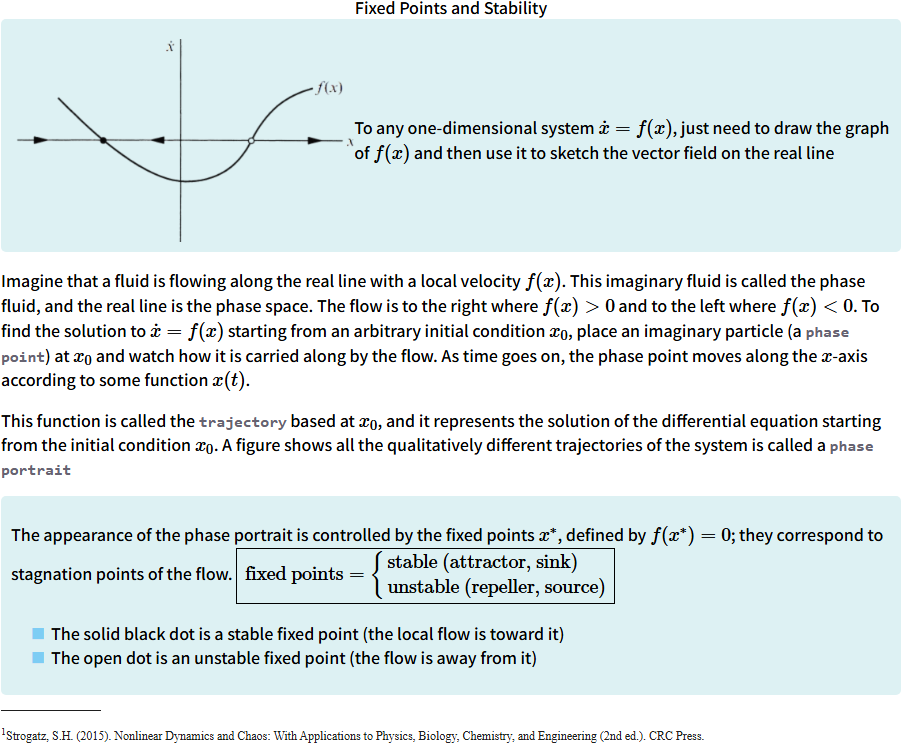

Slide 9

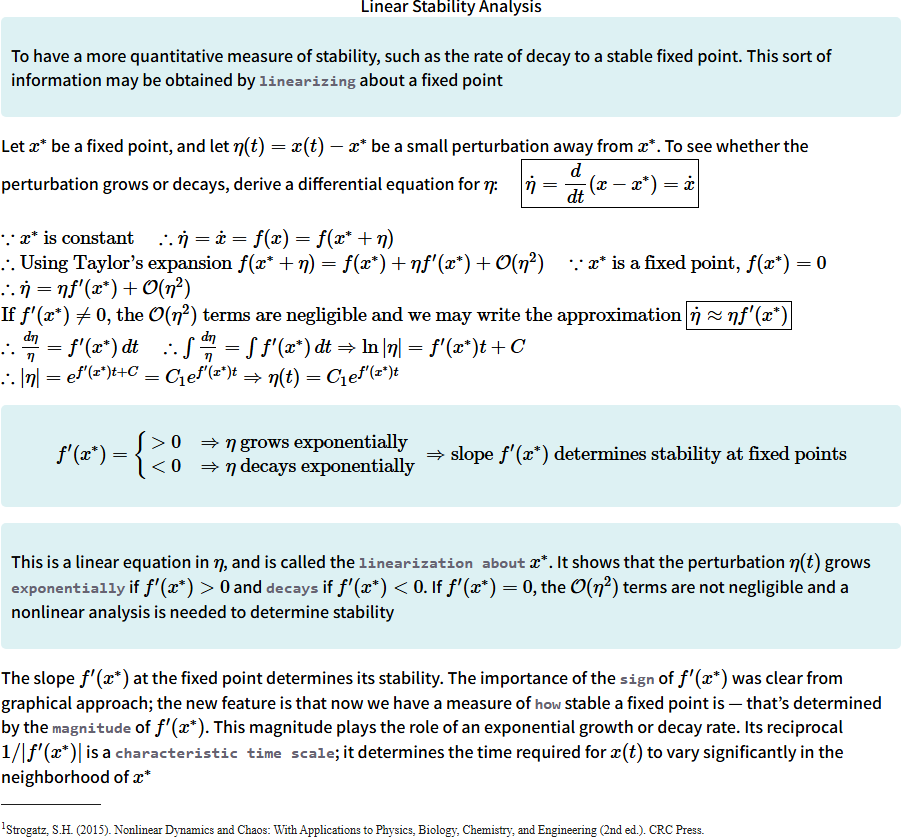

Slide 10

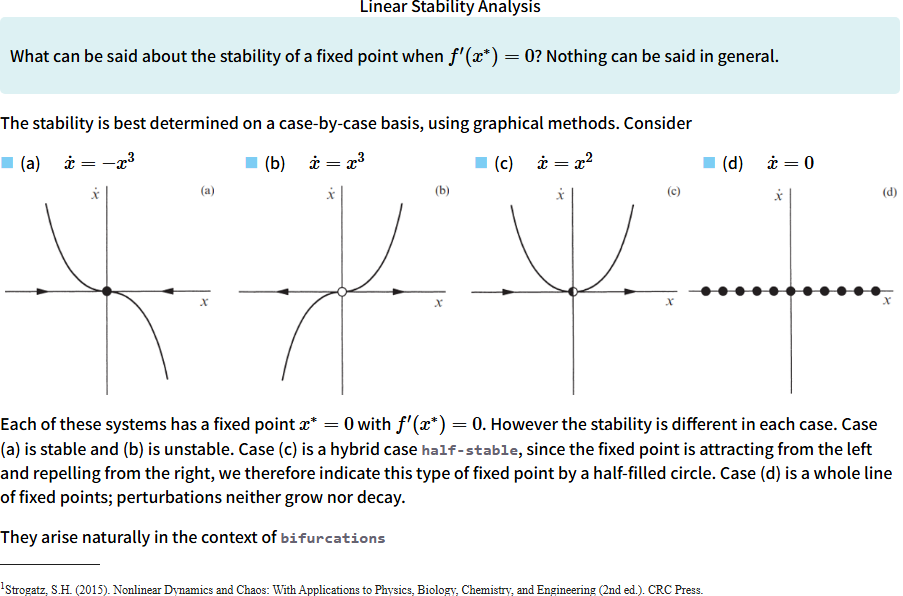

Slide 11

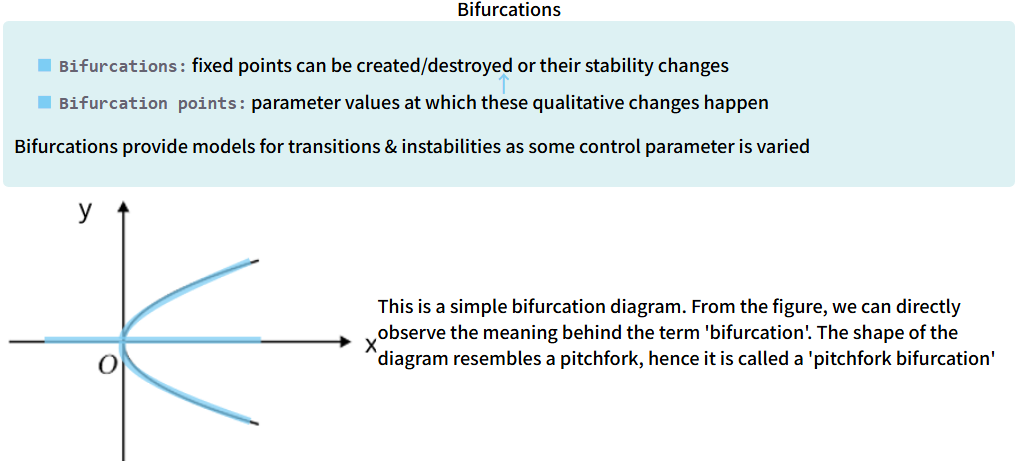

Slide 12

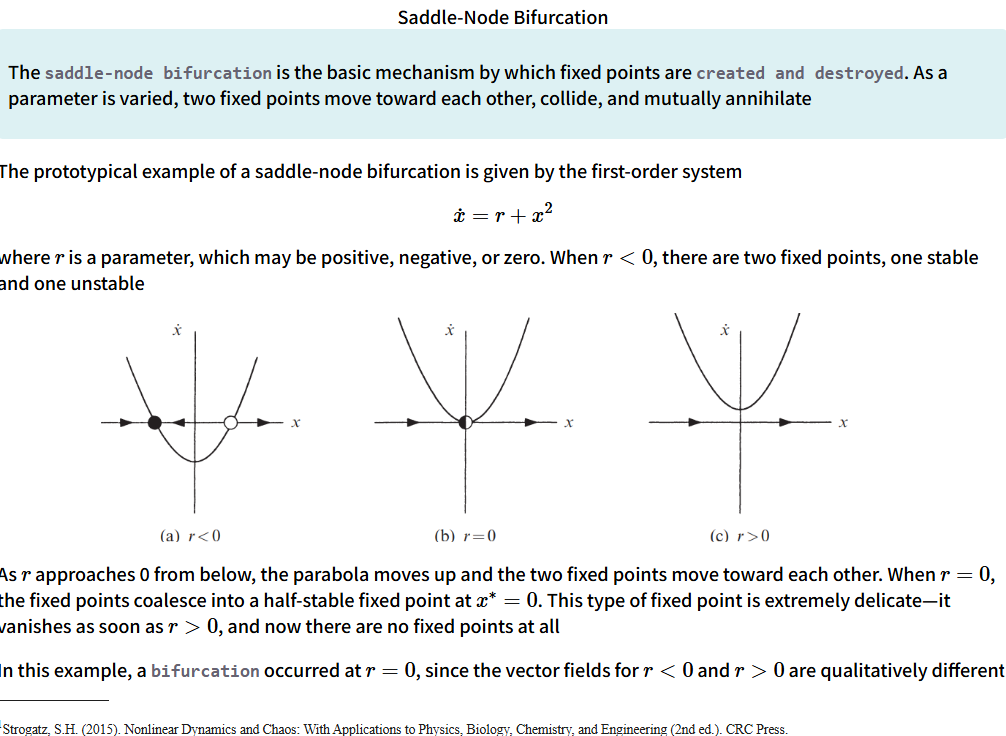

Slide 13

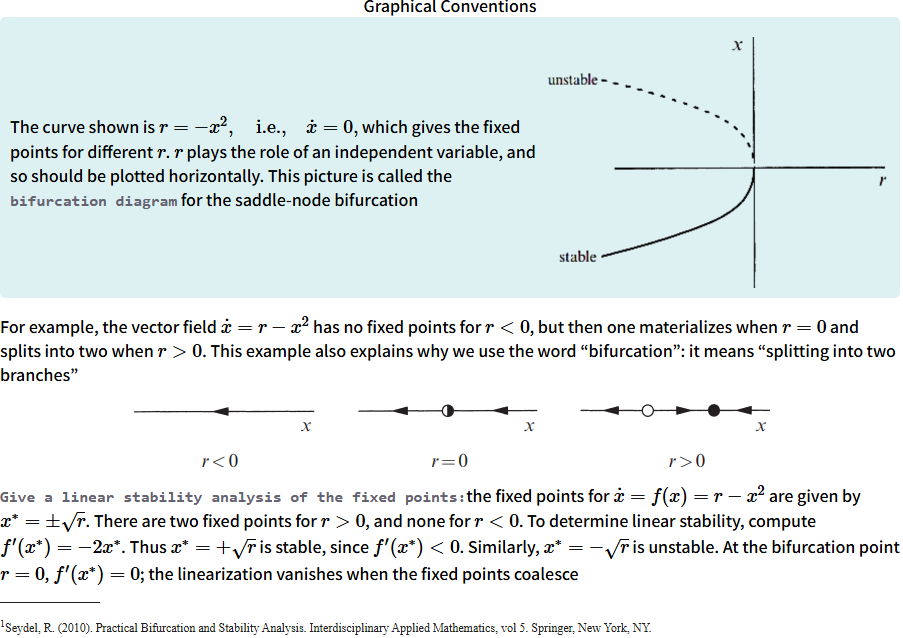

Slide 14

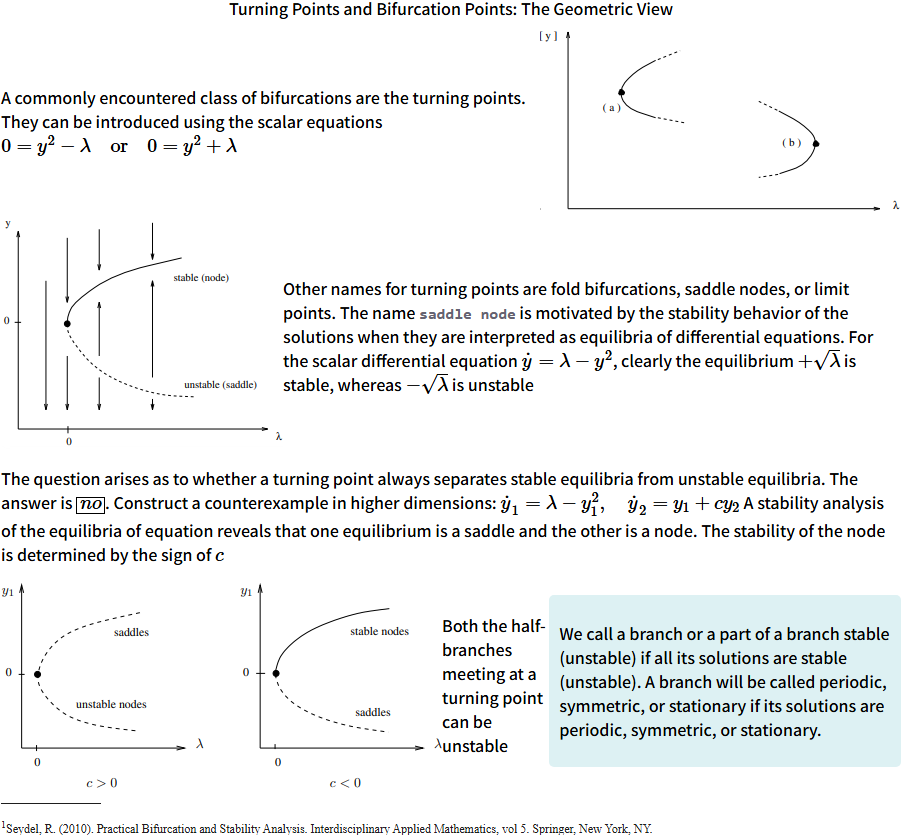

Slide 15

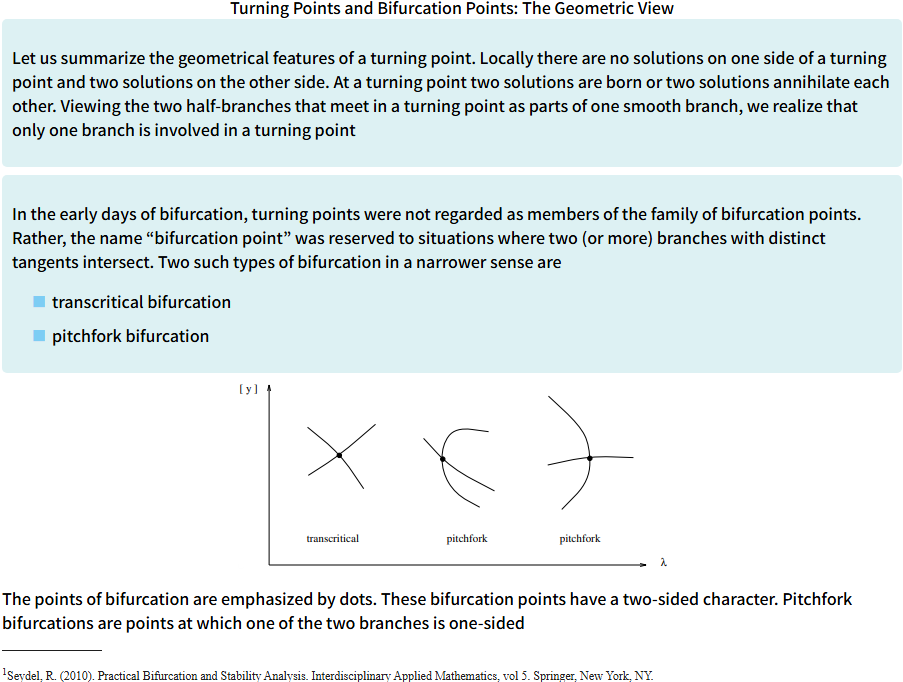

Slide 16

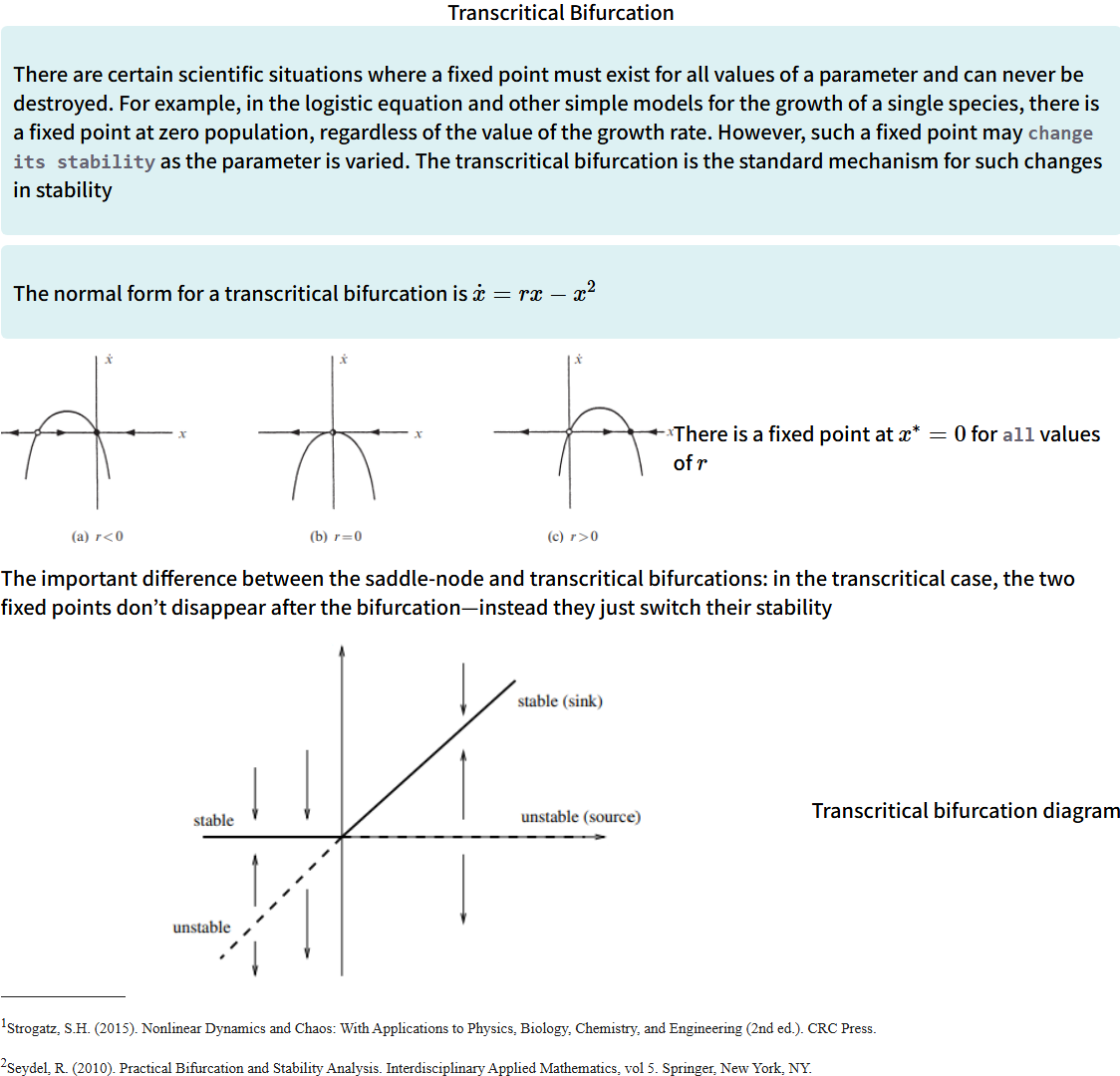

Slide 17

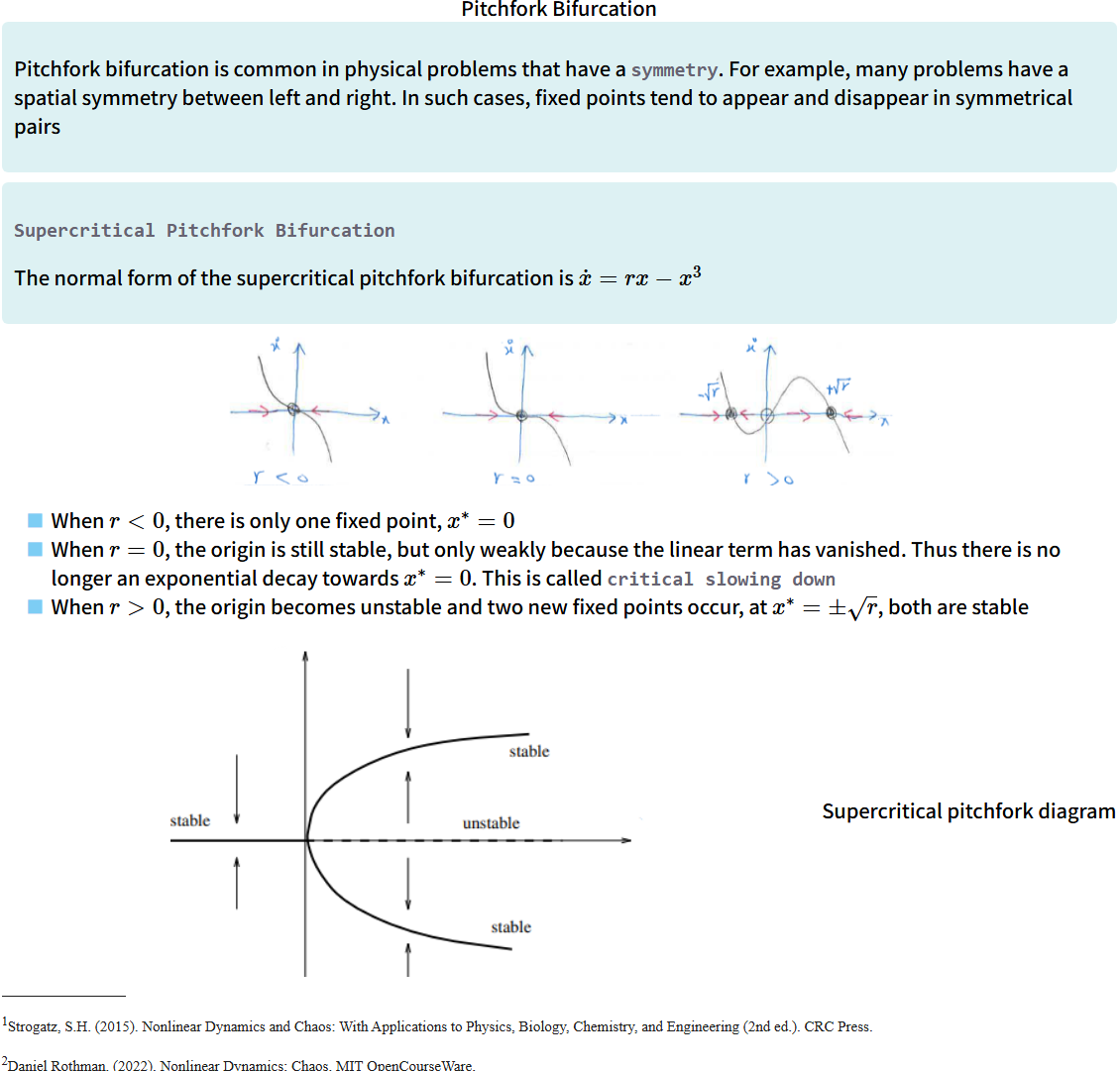

Slide 18

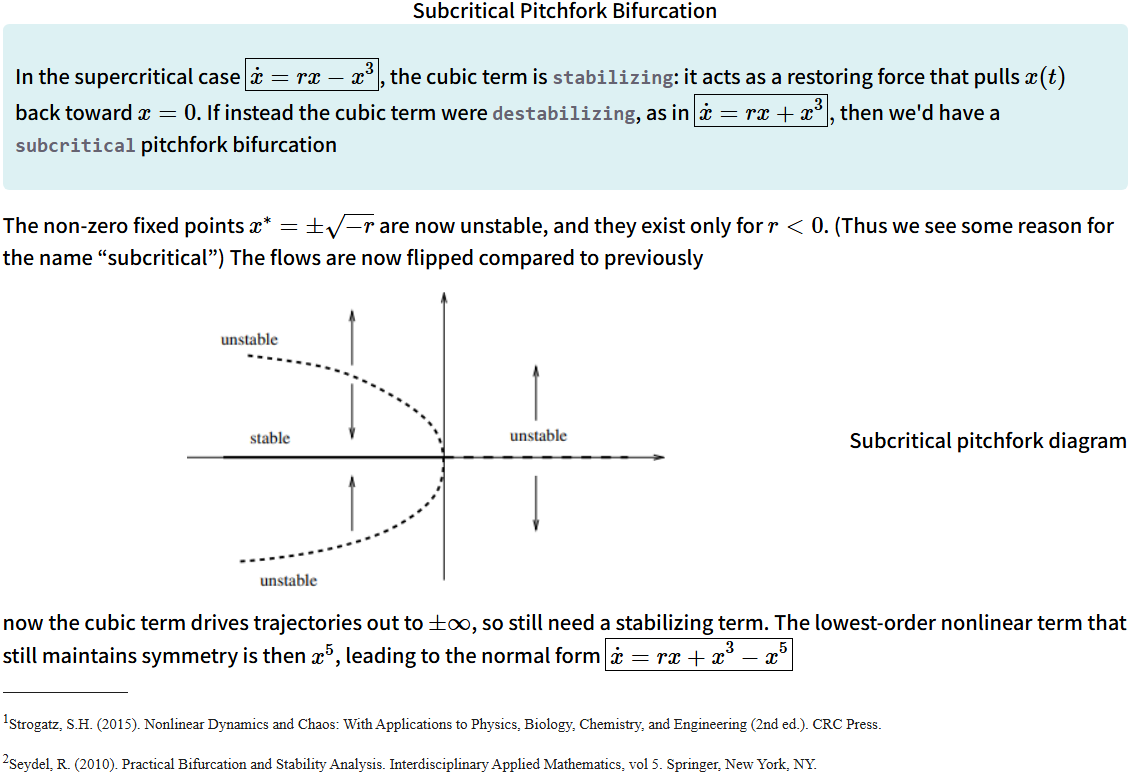

Slide 19

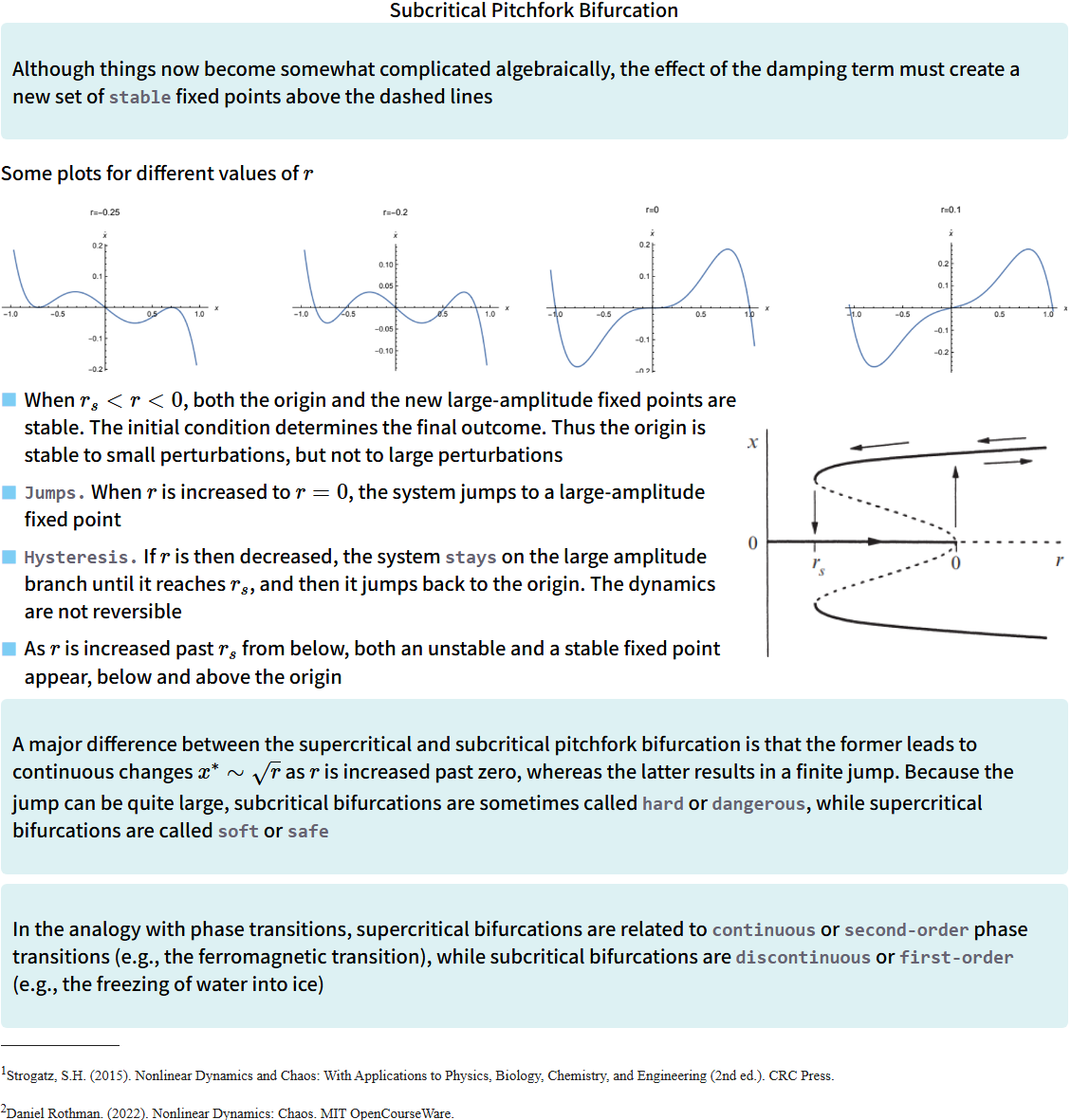

Slide 20

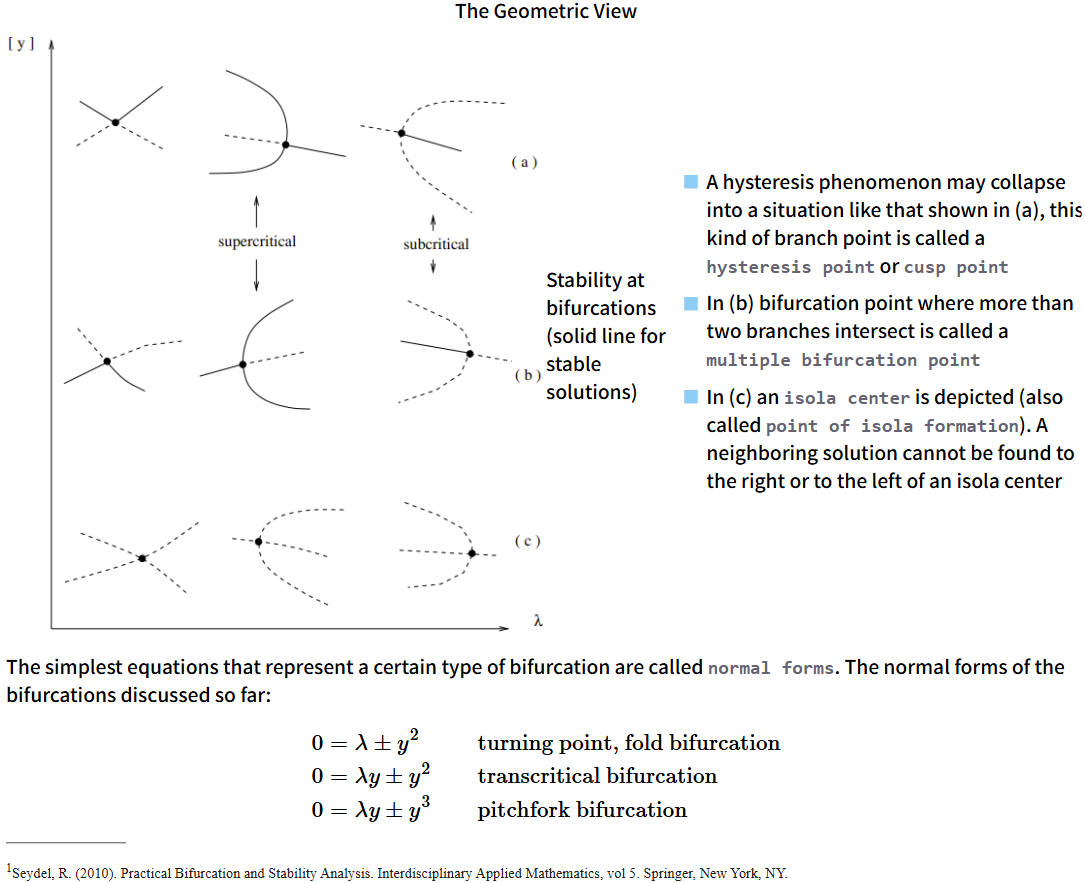

Slide 21

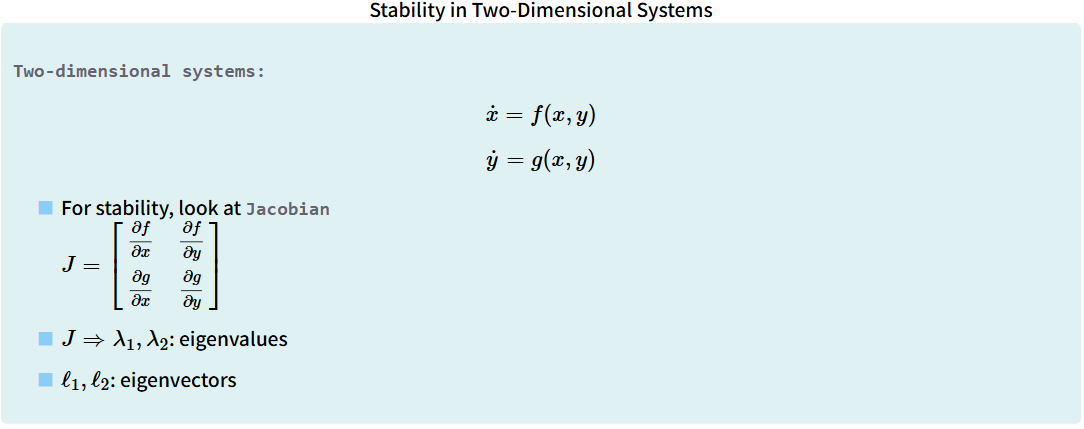

Slide 22

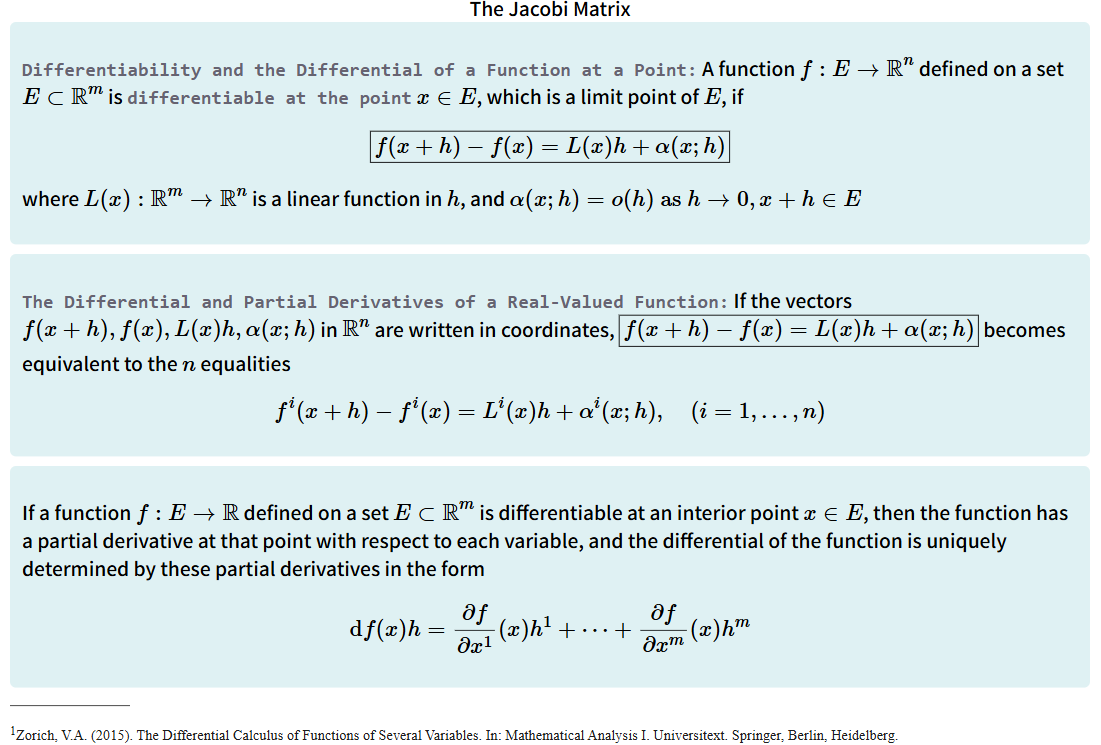

Slide 23

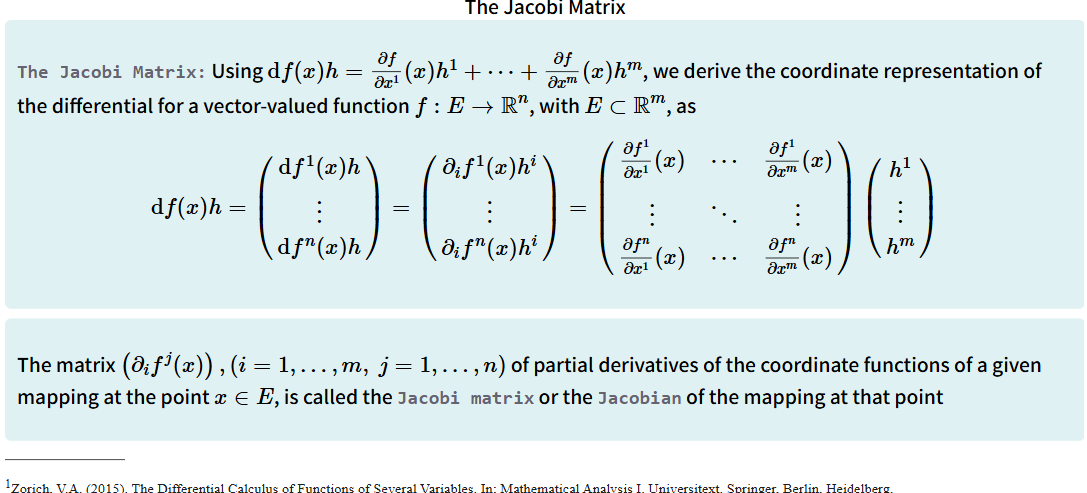

Slide 24

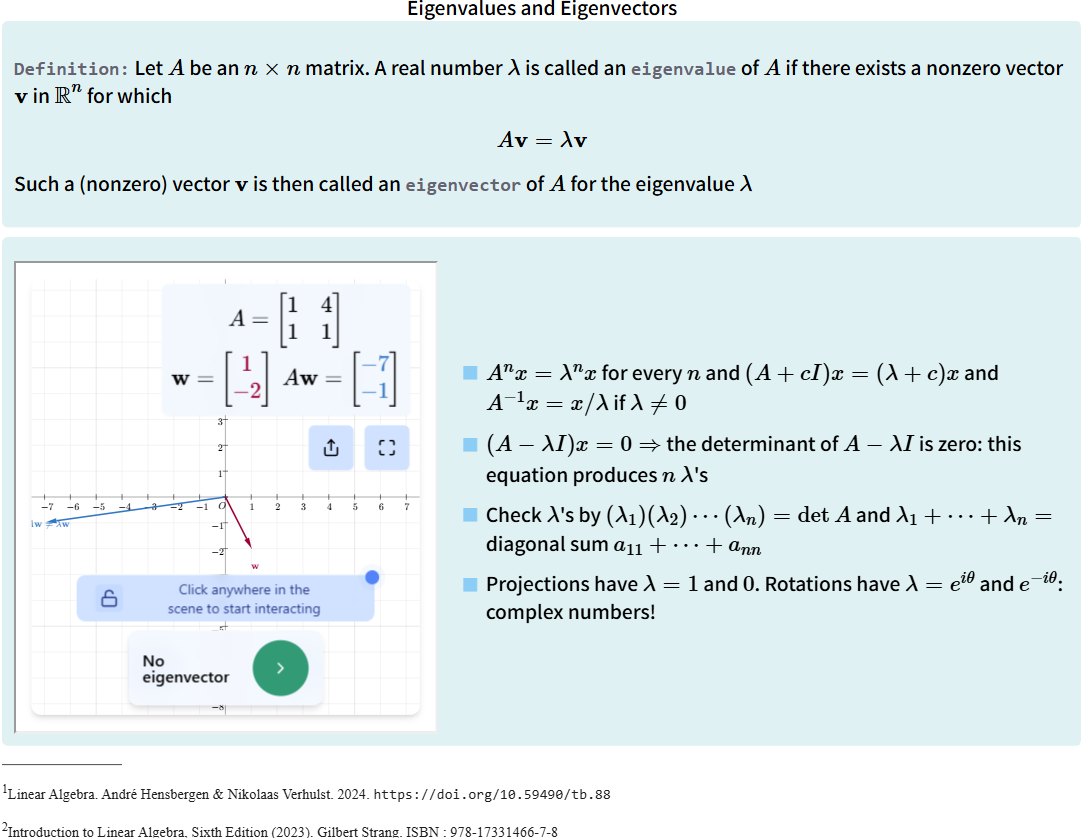

Slide 25

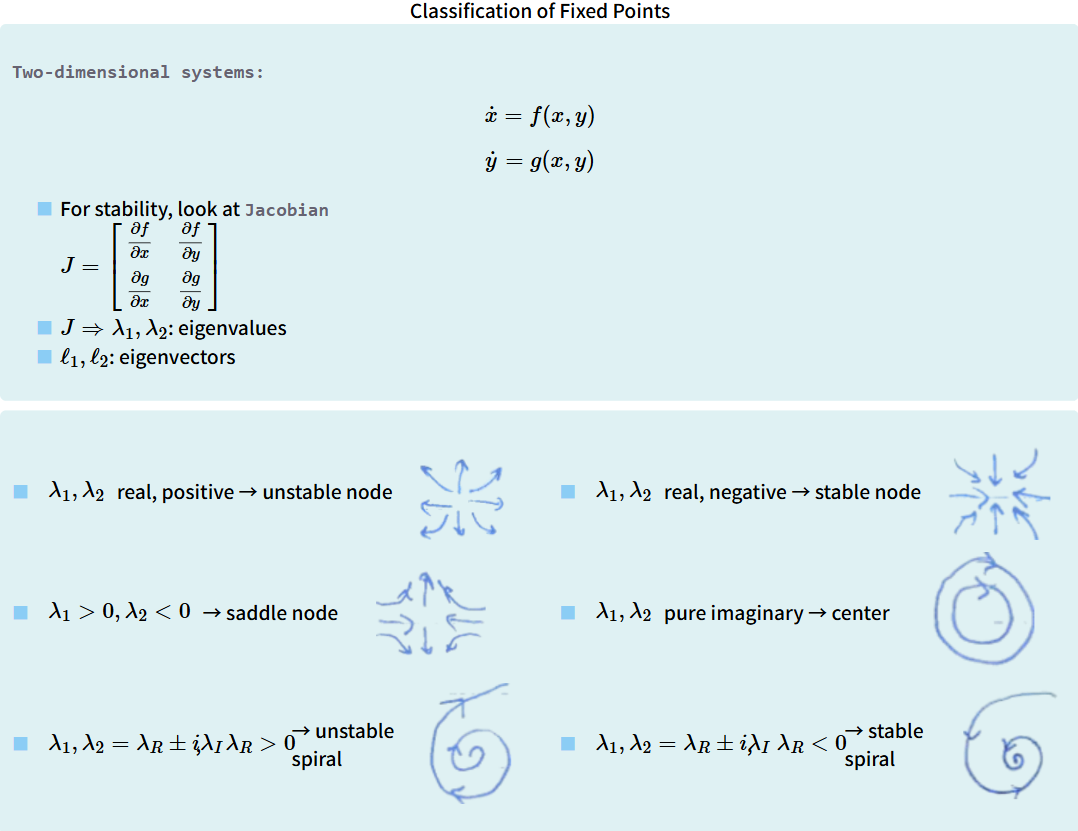

Slide 26
Slide 27

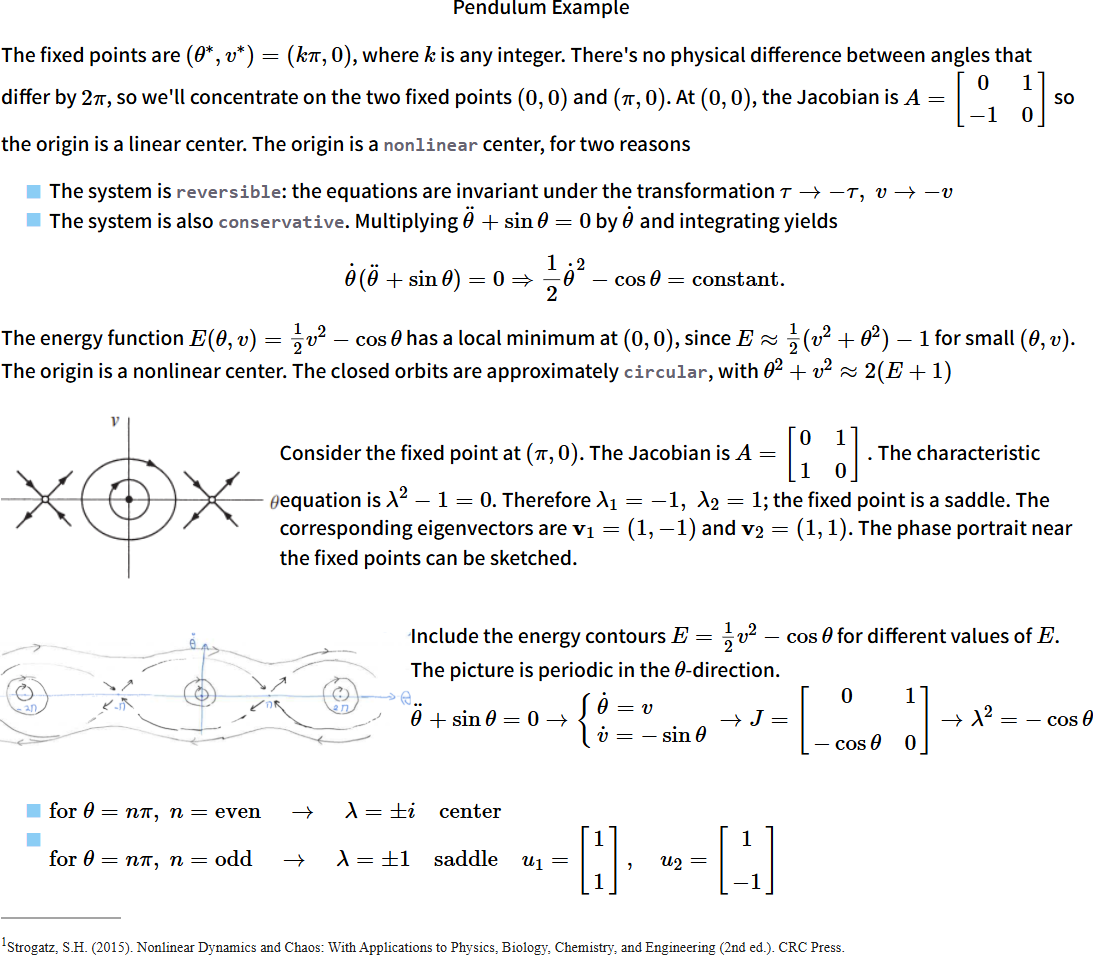

Slide 28

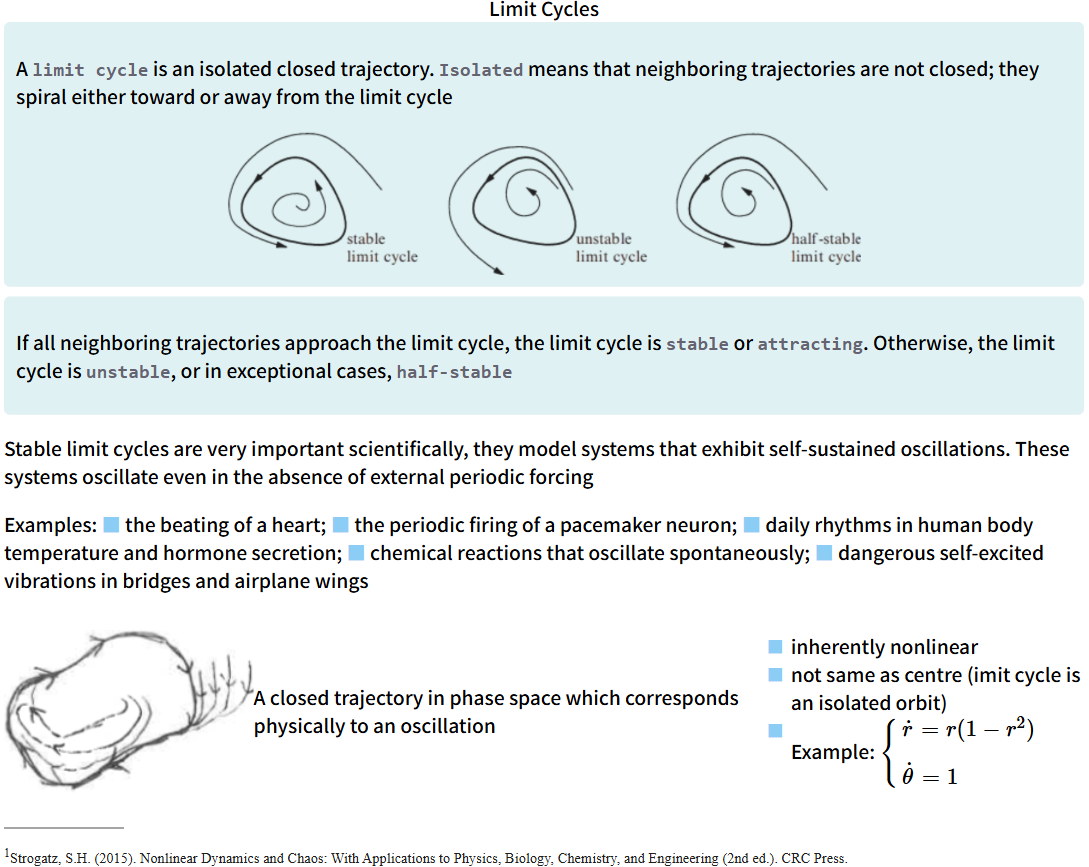

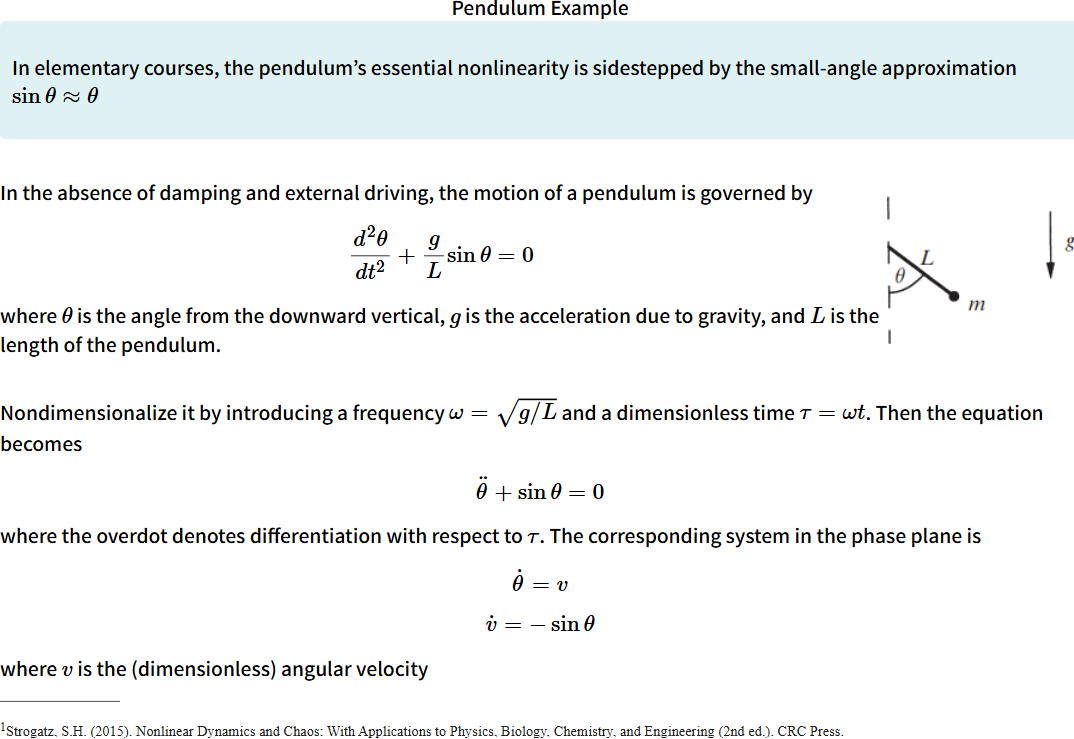

Slide 29

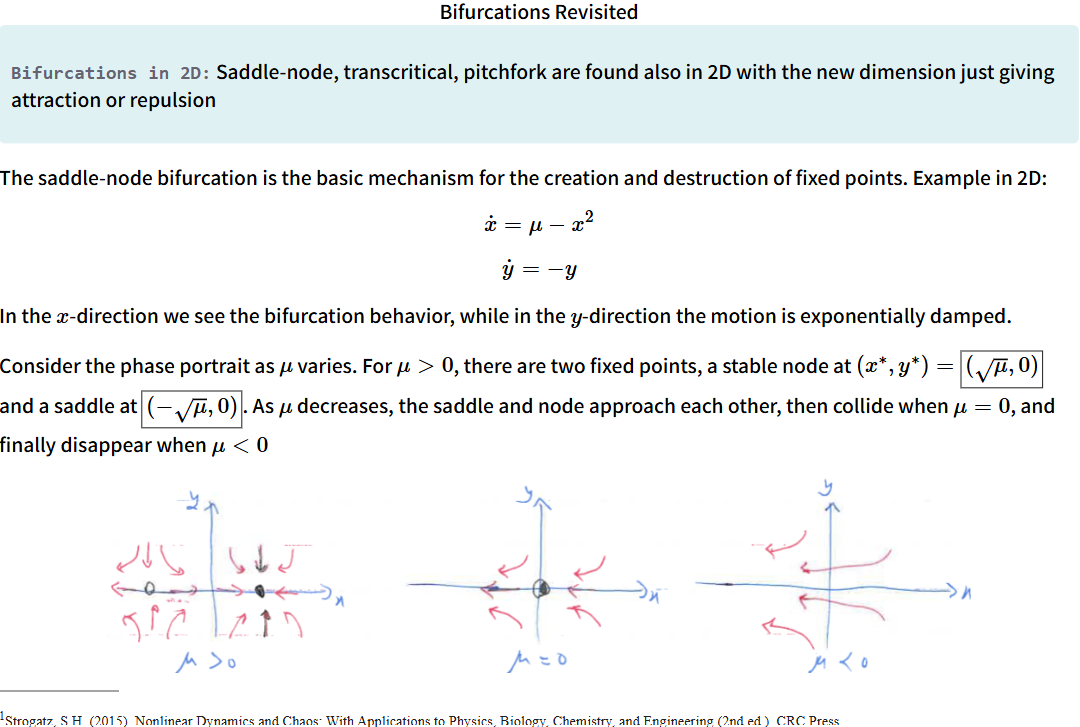

Slide 30

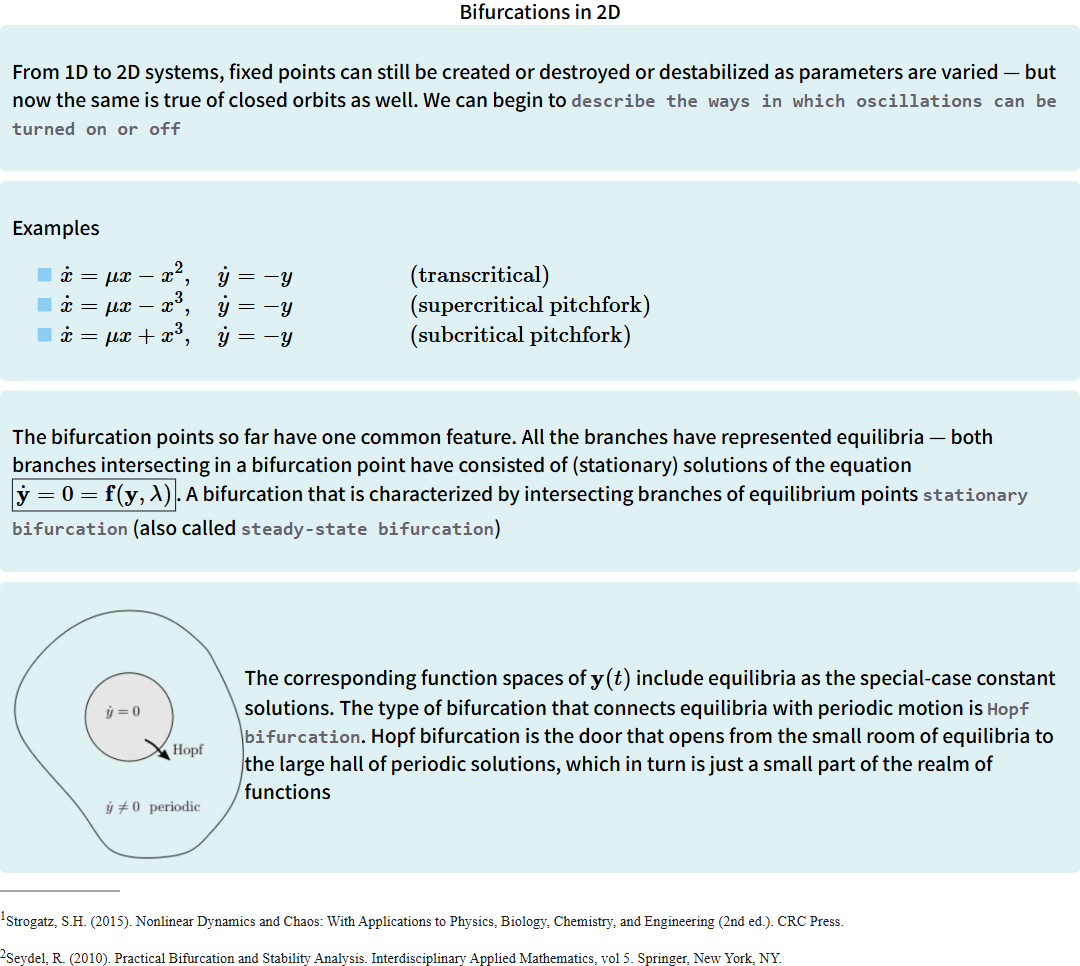

Slide 31

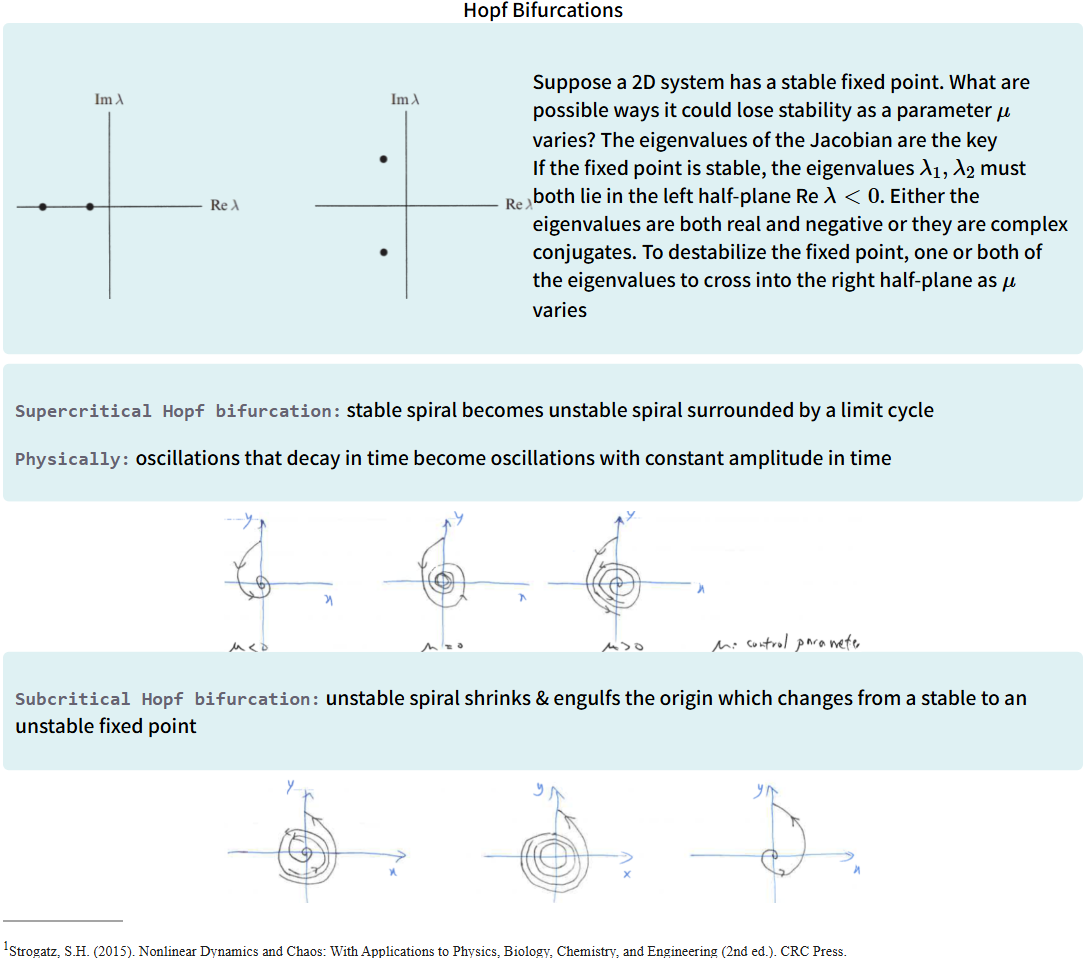

Slide 32

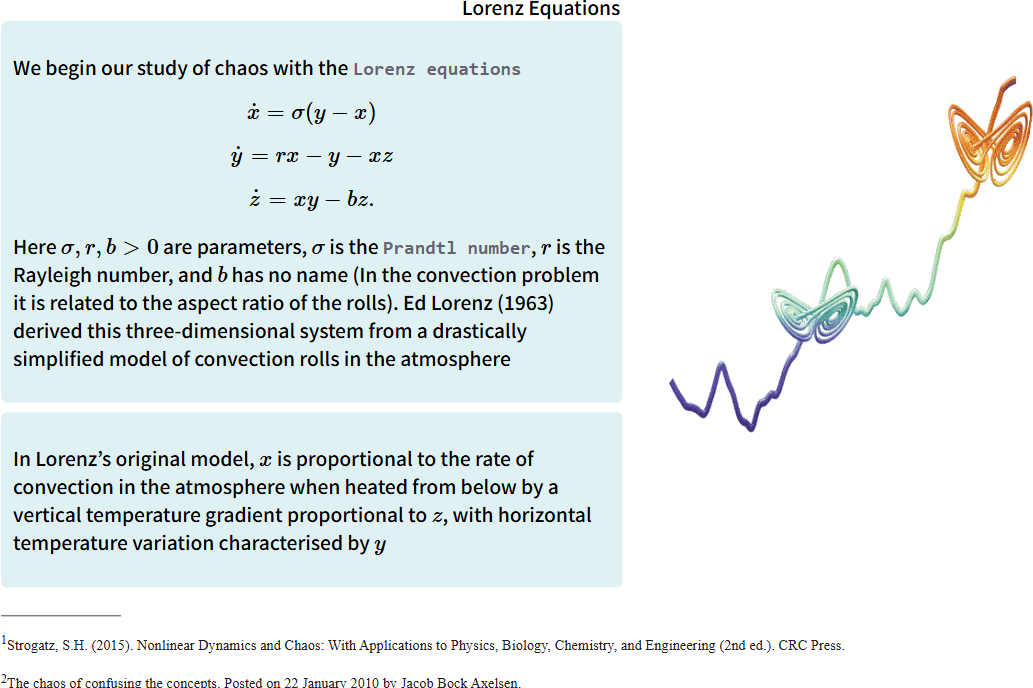

Slide 33
Slide 34

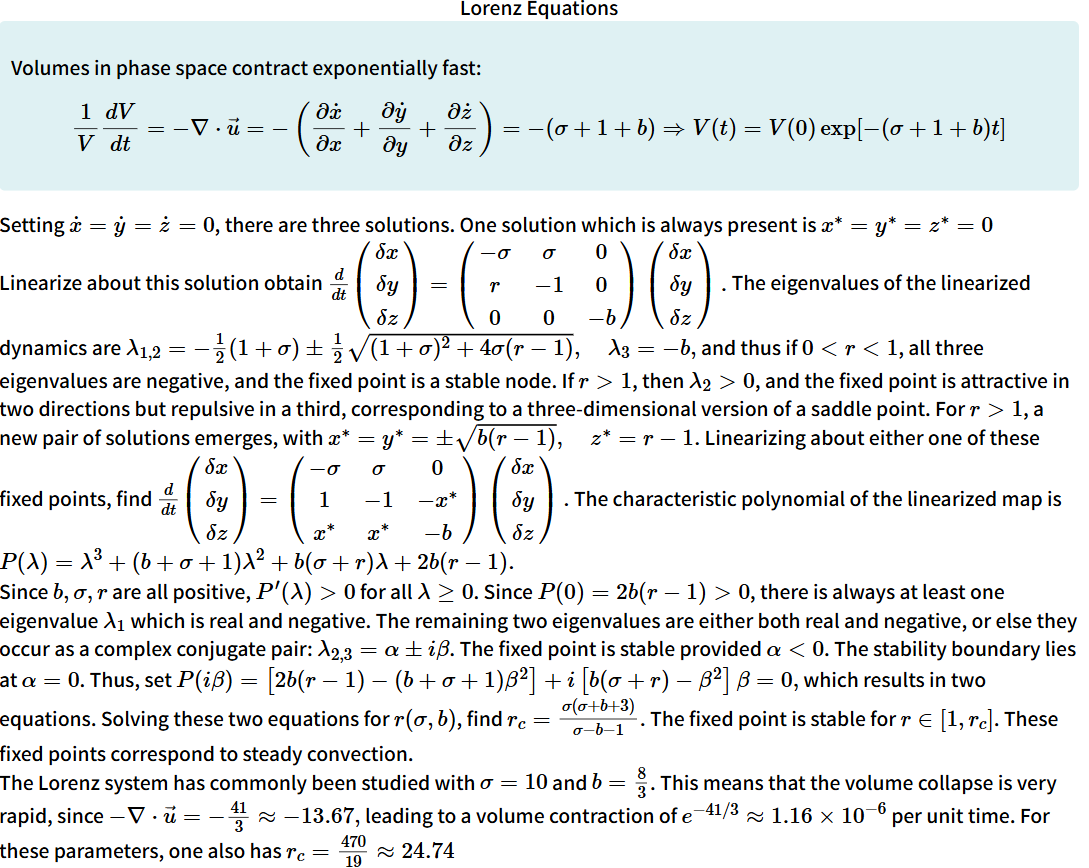

Slide 35

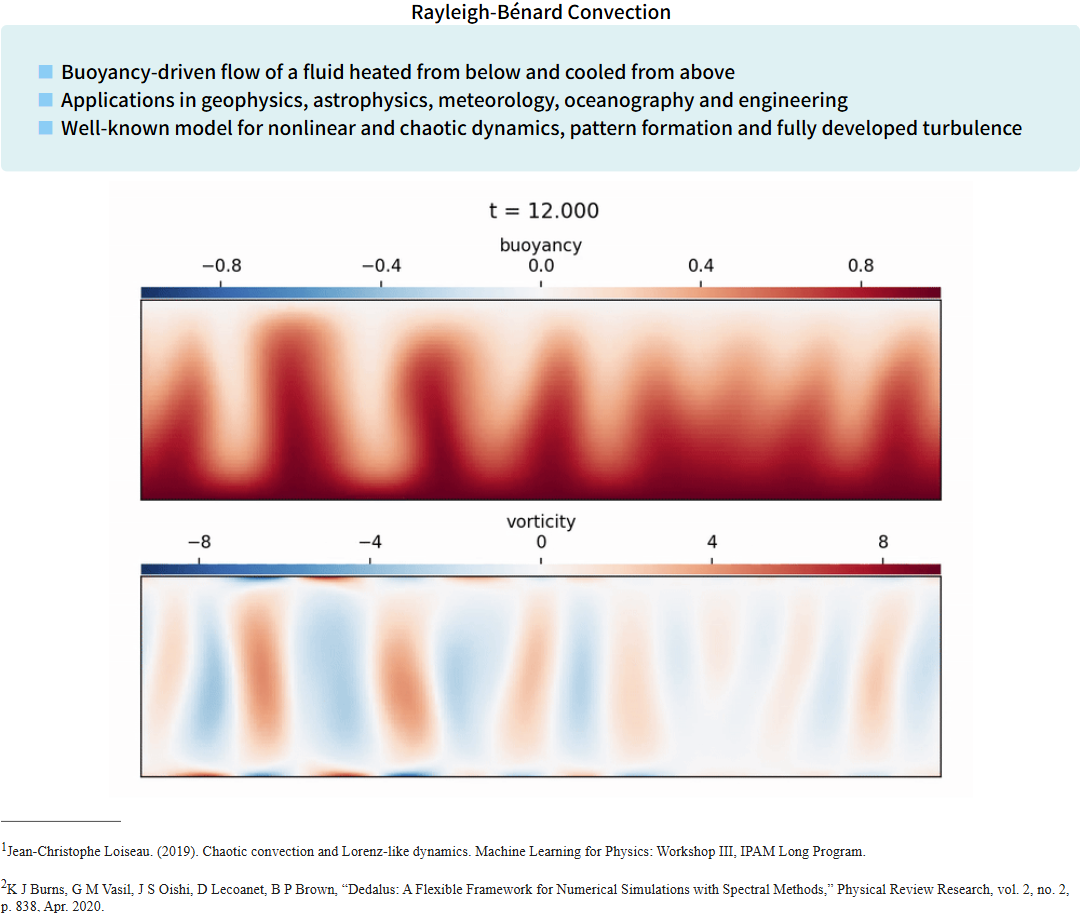

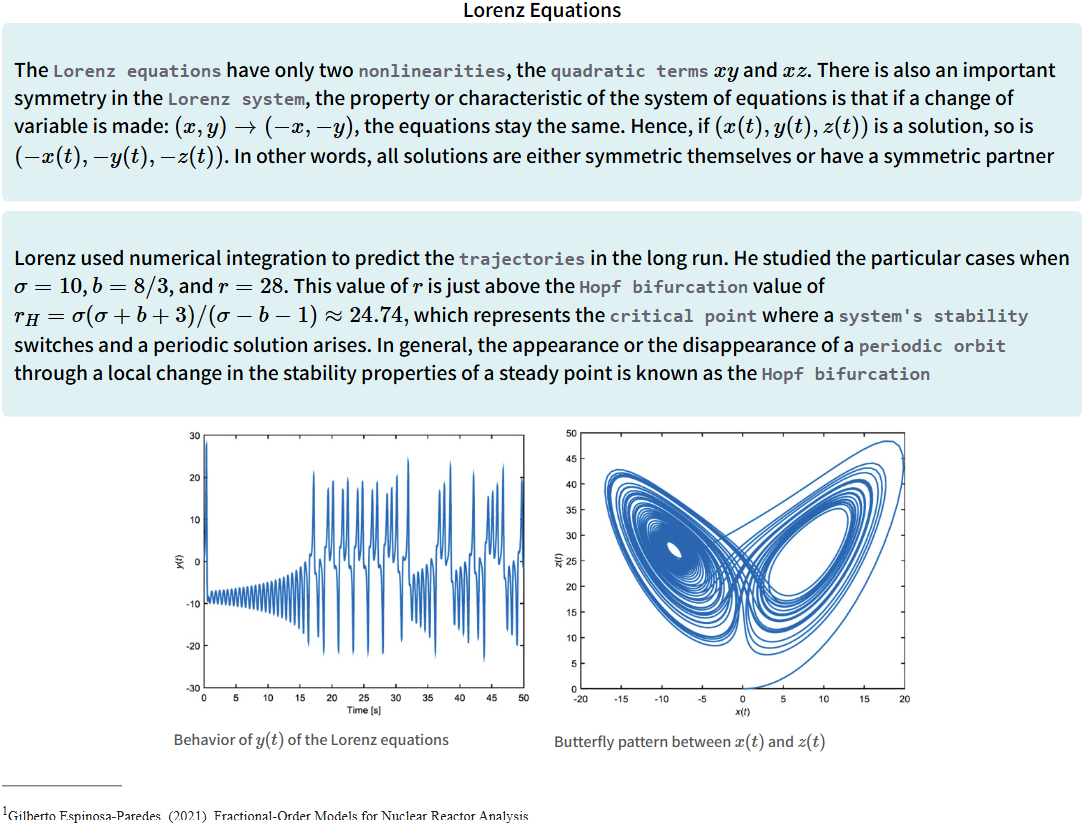

Slide 36

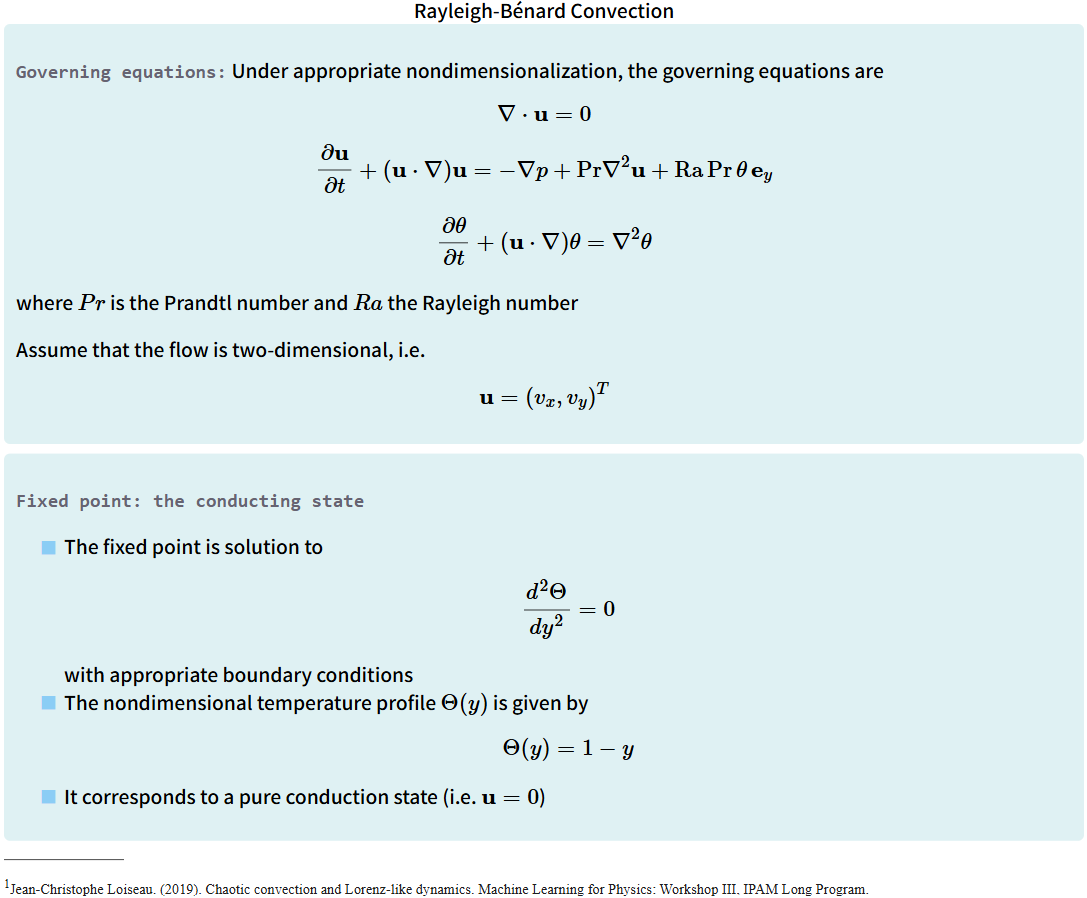

Slide 37

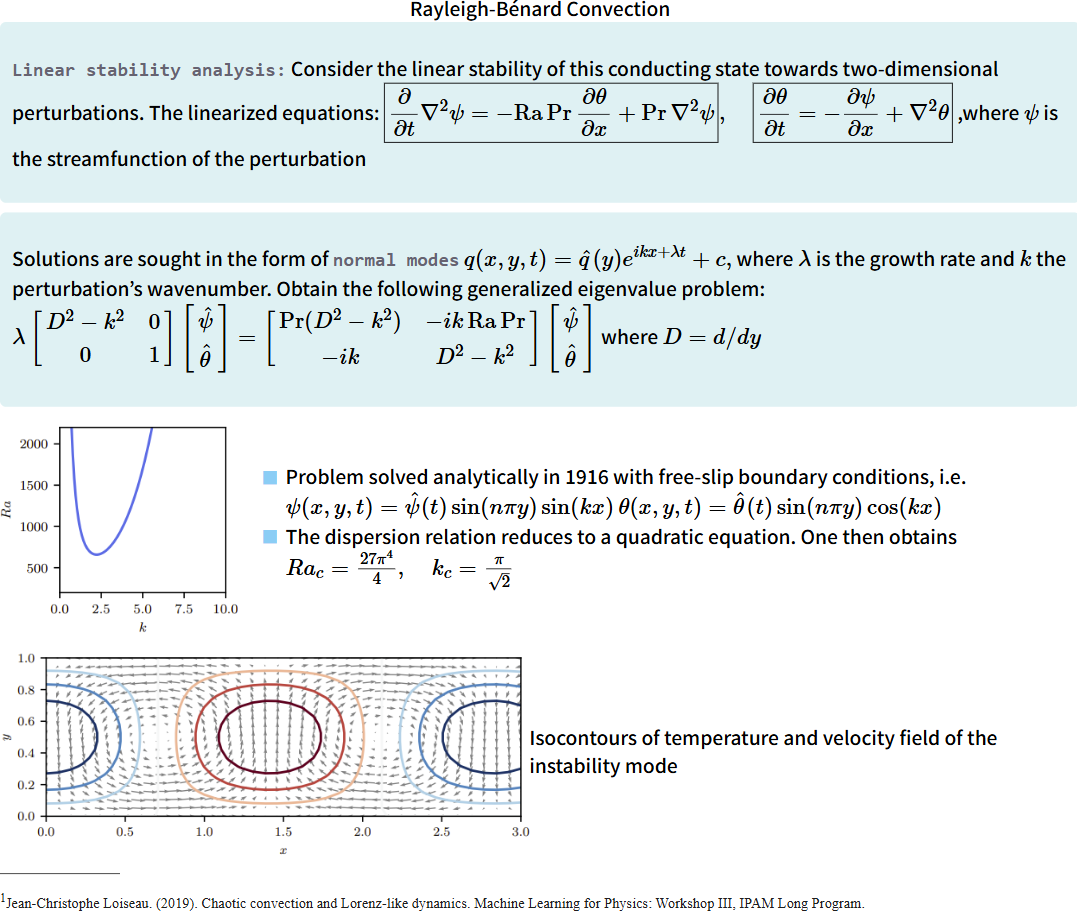

Slide 38

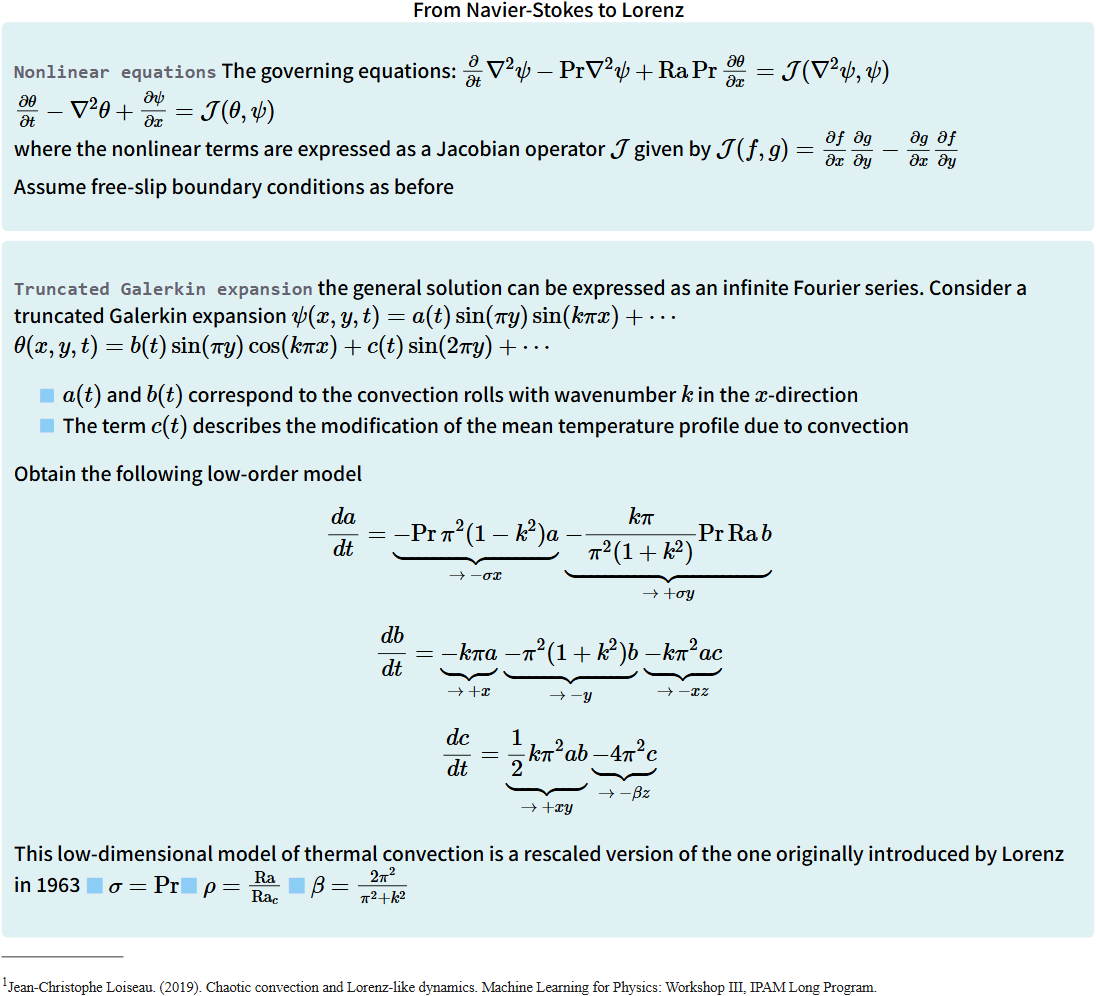

Slide 39

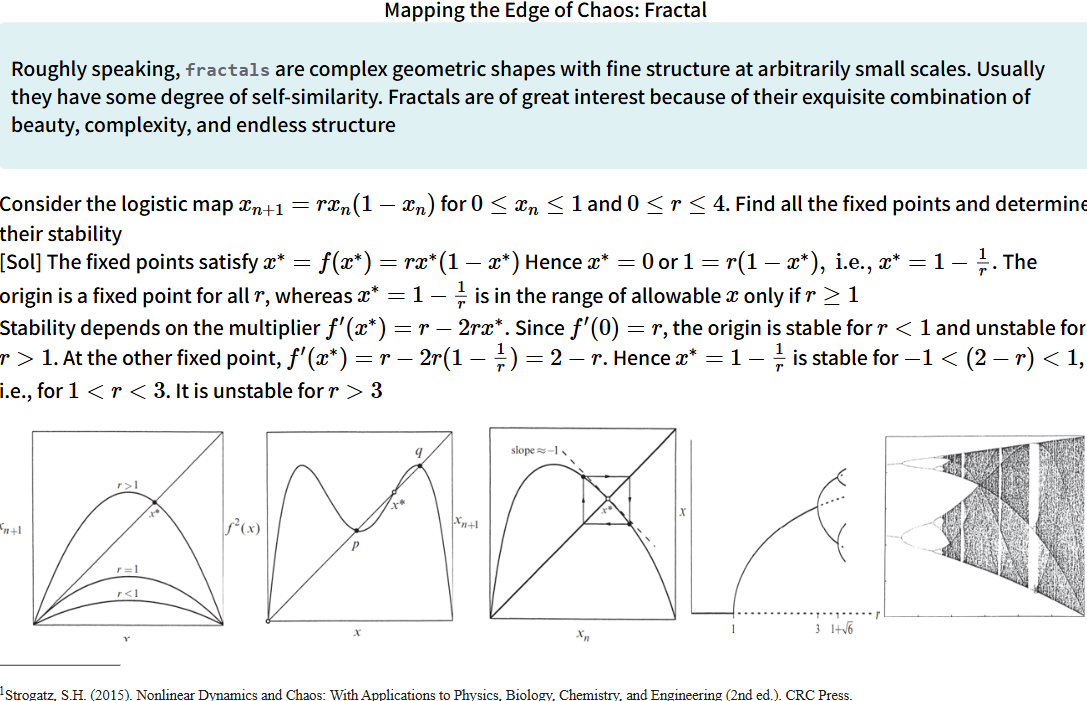

Slide 40
