Lecture 8 – Waves

Internal Gravity Waves

Rotation effects will only be important for long waves with low frequencies – so we can assume outright that these are shallow water waves, even in the open ocean. These waves have the same dynamics as shallow-water surface gravity waves, with the addition of the Coriolis force: $$ \frac{\partial u}{\partial t} - fv = -g \frac{\partial \eta}{\partial x} $$ $$ \frac{\partial v}{\partial t} + fu = -g \frac{\partial \eta}{\partial y} $$ Rotating surface gravity waves are called Poincare waves or inertia-gravity waves. Away from land boundaries, the tide propagates as an inertia-gravity wave. Take \(x\) to be in the direction of propagation of the wave (which is not changed by rotation) and \(y\) in the horizontal direction perpendicular to the direction of propagation. The sea surface elevation has the same cosine function as for non-rotating waves, but water parcel motions are modified by rotation. Again, we are working on very large horizontal scales (in order for rotation to be important), so vertical velocity is negligible. Water parcel motions are nearly horizontal.

Shallow-Water Waves

Dispersion Relation

A dispersion relation relates the wavelength or wavenumber \(k\) of a wave to its frequency \(\omega\).

• For waves in which the phase speed varies with k, the various sinusoidal components of a disturbance originating at a given location are at a later time found in different places. Such waves are dispersive.
• For nondispersive waves, their phase speeds are independent of the wave number

Internal Waves in Continuous Stratification

The dispersion relation for internal waves in a continuously stratified ocean is: $$ \omega^2 = N^2 \cos^2 \varphi $$ One immediate consequence of this expression is that internal waves have frequencies less than $N$. Let’s look at two extreme limits of this dispersion relationship.

• Let the wave number vector be horizontal: $$ \lim_{\phi \to 0^\circ} \omega^2 = N^2 \cos^2 \phi = N^2 $$ This corresponds to nearly vertical oscillations of water parcels, where internal waves resemble buoyancy oscillations.

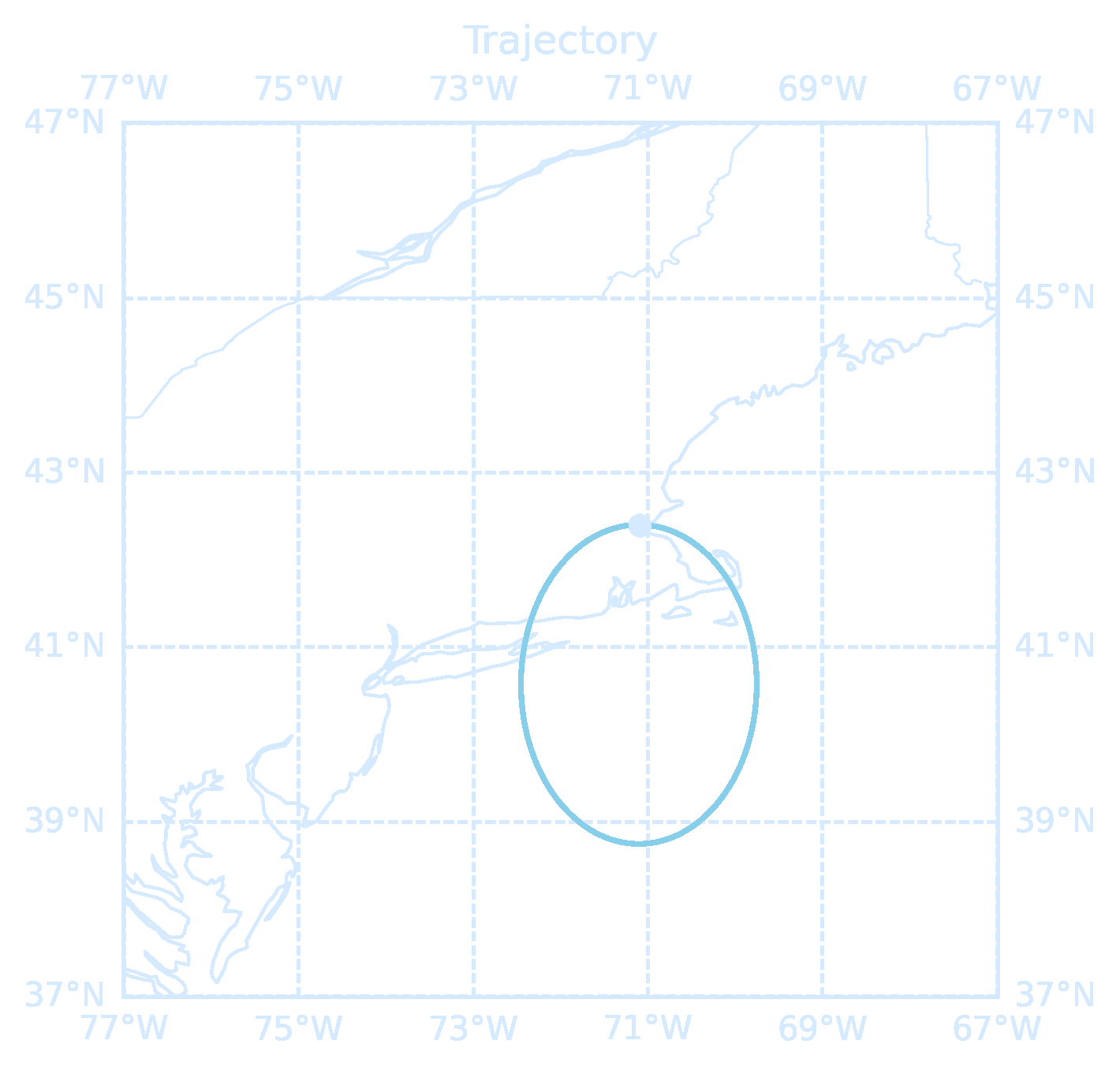

• Let the wave number vector be nearly vertical: $$ \lim_{\phi \to 90^\circ} \omega^2 = N^2 \cos^2 \phi = 0 $$ The restoring force on purely horizontal water parcel displacements is the Coriolis force alone and internal waves in this limit approach inertial oscillations. In this limit, the frequency of internal waves approaches the inertial frequency $f$, due to the Coriolis force dominating the restoring mechanism: $$ \omega \to f $$

In a stratified fluid, an energy source at a fixed frequency will produce different responses depending on the frequency.

• For low frequency, the response will be in beams that extend at a low angle away from the source with respect to the horizontal
• For higher frequencies, the beams of energy point more and more vertically

This can be understood in terms of the direction of energy propagation relative to the frequency. Note that in the limit that the source oscillates at very high frequency (higher than N), the response would not propagate.

Kelvin Waves

The Kelvin wave is a unidirectional coastally trapped wave such that the amplitude of the wave decreases exponentially away from the coastline, f acing the direction of the phase velocity. The Kelvin wave always travels with the wall (coast) on its right side in the Northern Hemisphere. We work in a rotating shallow-water system, assuming constant mean depth $H$, gravity $g$, and Coriolis parameter $f$. The variables are:

• $u(x, y, t)$: zonal velocity
• $v(x, y, t)$: meridional velocity
• $\eta(x, y, t)$: free surface displacement

Assume wave propagation along a boundary (e.g., coastline aligned with $x$-direction), with the boundary at $y = 0$, and velocity normal to the boundary vanishing: $$ v = 0 \quad \text{at all times} $$ Here's the system of linearized shallow water equations: $$ \left\{ \begin{aligned} \frac{\partial u}{\partial t} &= -g \frac{\partial \eta}{\partial x} \quad &&\text{(Zonal momentum)} \\ f u &= -g \frac{\partial \eta}{\partial y} \quad &&\text{(Meridional momentum with $v = 0$)} \\ \frac{\partial \eta}{\partial t} + H \frac{\partial u}{\partial x} &= 0 \quad &&\text{(Continuity)} \end{aligned} \right. $$ Differentiate continuity in time: $$ \frac{\partial^2 \eta}{\partial t^2} + H \frac{\partial}{\partial t} \left( \frac{\partial u}{\partial x} \right) = 0 $$ Use Zonal momentum equation: $$ \frac{\partial u}{\partial t} = -g \frac{\partial \eta}{\partial x} \quad \Rightarrow \quad \frac{\partial}{\partial t} \left( \frac{\partial u}{\partial x} \right) = -g \frac{\partial^2 \eta}{\partial x^2} $$ Plug in: $$ \boxed{ \frac{\partial^2 \eta}{\partial t^2} + g H \frac{\partial^2 \eta}{\partial x^2} = 0 } $$ This is a wave equation with wave speed $c = \sqrt{g H}$. The dispersion relation is: $$ \omega^2 = g H k^2 \quad \Rightarrow \quad \omega = \sqrt{g H} \, k $$ So the phase speed and group speed are:

• Phase speed $c = \frac{\omega}{k} = \sqrt{g H}$
• Group speed $c_g = \frac{d\omega}{dk} = \sqrt{g H}$

These are equal and constant, so Kelvin waves are non-dispersive. All wave components travel at the same speed → wave shape is preserved over time.

Rossby Waves

Rossby waves are large-scale, low-frequency waves influenced by the variation of the Coriolis force with latitude (the β-effect). They are dispersive, westward-propagating, and essential for explaining oceanic and atmospheric responses to slow, large-scale forcing like climate change. Since Rossby waves are very slow, we assume periods longer than weeks: $$ \frac{1}{T} \ll f \quad \Rightarrow \quad \frac{\partial u}{\partial t} \approx 0, \quad \frac{\partial v}{\partial t} \approx 0 \quad \text{(drop them)} $$ For Rossby waves, the local acceleration terms are negligible compared to the Coriolis and pressure gradient forces.
Define Rossby deformation radius: $$L_D = \frac{\sqrt{gH}}{f_0}$$ Then: $$ \omega = -\beta \frac{gk}{H f_0^2} = -\beta \frac{k}{f_0^2} \frac{g}{H} = -\beta L_D^2 k $$ It should be mentioned that for long Rossby waves (i.e., large wavelength, small $k$), we approximate: $$ \omega = -\frac{\beta k}{k^2 + \frac{1}{L_D^2}} \quad \Rightarrow \quad c = \frac{\omega}{k} = -\frac{\beta}{k^2 + \frac{1}{L_D^2}} $$ $$ k^2 \ll \frac{1}{L_D^2} \quad \Rightarrow \quad \omega \approx -\beta L_D^2 k $$ The final expression only appears independent of $k$ because it is the limit for very small $k$. So final dispersion relation is: $$ \boxed{\omega = -\beta L_D^2 k} \quad \text{or} \quad \boxed{c = \frac{\omega}{k} = -\beta L_D^2} $$ Rossby waves are dispersive waves whose phase speeds increase rapidly with increasing wavelength. This negative phase speed shows Rossby waves propagate westward (always).
Below shows a special case of barotropic flow with no internal stratification (1-layer fluid):

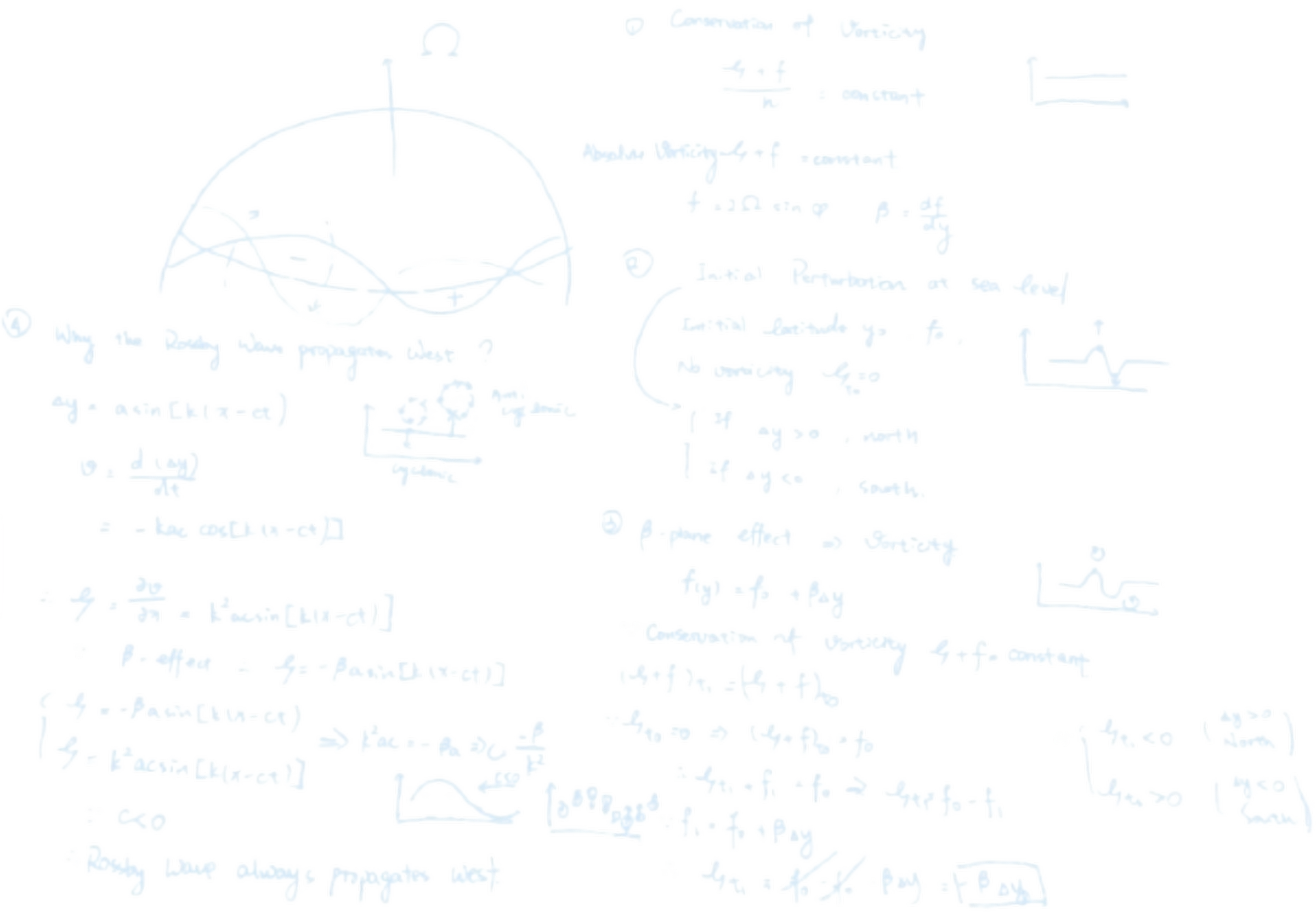

β Effect

Consider a closed chain of fluid parcels initially aligned along a circle of latitude at time $t_0$, with no initial relative vorticity: $$ \zeta_{t_0} = 0 $$ Then, the entire chain is displaced meridionally by a small amount $\delta y$ at time $t_1$. We assume the absolute vorticity is conserved for each fluid parcel: $$ (\zeta + f)_{t_1} = f_{t_0} $$ Substituting $\zeta_{t_0} = 0$: $$ \zeta_{t_1} = f_{t_0} - f_{t_1} $$ Using Taylor expansion of the Coriolis parameter, the $\delta y$ is the meridional displacement (northward is positive): $$ f_{t_1} = f_{t_0} + \frac{df}{dy} \, \delta y = f_{t_0} + \beta \, \delta y $$ So the relative vorticity at $t_1$ becomes: $$ \boxed{\zeta_{t_1} = -\beta \, \delta y} $$ The $\beta$ effect induces vorticity \[ \left\{ \begin{aligned} &\zeta_{t_1} = -\beta \, \delta y < 0 && \text{(northward displacement: } \delta y > 0\text{)} \\ &\zeta_{t_1} = -\beta \, \delta y > 0 && \text{(southward displacement: } \delta y < 0\text{)} \end{aligned} \right. \]

• This perturbation vorticity field will induce a meridional velocity field, which advects the chain of fluid parcels southward west of the vorticity maximum and northward west of the vorticity minimum.
• The fluid parcels oscillate back and forth about their equilibrium latitude, and the pattern of vorticity maxima and minima propagates to the west.

Bonus: Breaking Wave

All of our discussion thus far has been based on a linear (small-amplitude) approximation of the full problem. Using this approximation, we have been able to explain many commonly observed properties of surface water waves. However, there is at least one familiar aspect of these waves that cannot be explained by linear theory: breaking, which is most commonly observed as waves run up a beach. A wave crest becomes unstable and starts breaking when the particle velocity exceeds the velocity of the wave crest (the wave celerity). This happens for two reasons:

• As the waves run up the beach, the energy in the wave becomes focused into a shallower layer (once $D \leq k^{-1}$ or so), thus concentrating the energy and increasing the wave amplitude
• when $D \leq k^{-1}$ or so, the phase speed becomes dependent on depth, being greater where the water is deeper. In a finite amplitude wave, the water is deeper at the wave crest than in the wave trough. Hence the crests travel faster than the troughs; the crest therefore tend to catch up with and, eventually, overtake the troughs. This produces the overturning of the wave that is familiar in breakers.

Baroclinic Instability and the Eady Model

Baroclinic instability generates eddies/waves from a geostrophically balanced, vertically sheared flow. Because of the thermal wind relationship, the shear flow has horizontal buoyancy gradients, meaning that the height of isentropes varies from place to place. Thus potential energy is stored in the field and can be released by allowing these deviations to relax, lowering some of the dense fluid that's been raised and raising some of the lighter fluid that's been pushed down. We shall analyze this using the Boussinesq, quasi-geostrophic equations.

Eddies

Large rotating masses of water called vortexes (vortexes = to turn), which are more commonly known as eddies or rings.

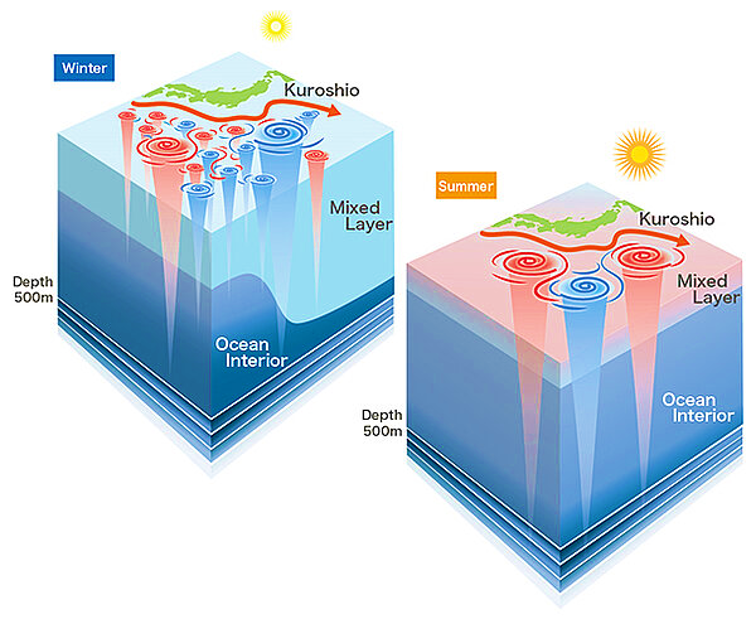

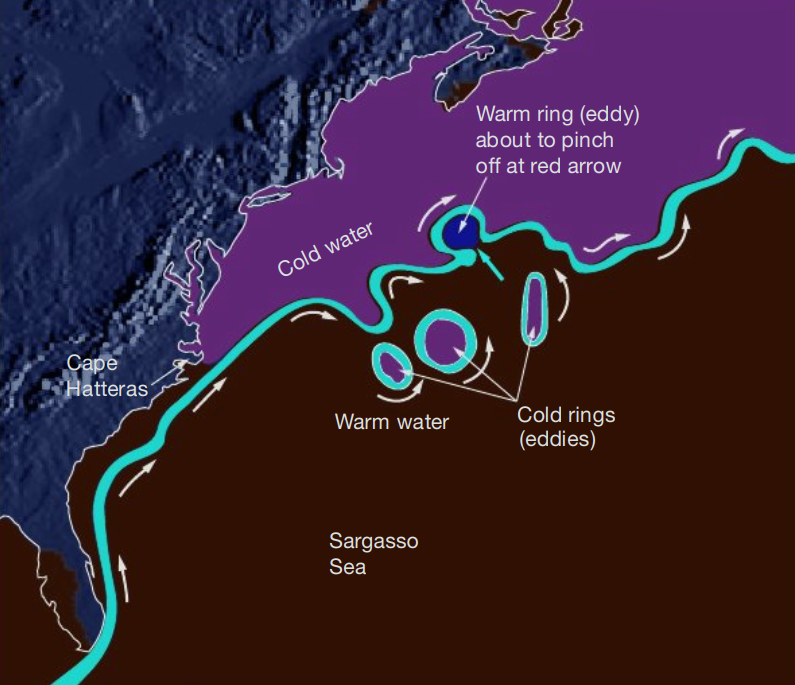

For example, Meanders (Menderes = a river in Turkey that has a very sinuous course, snakelike bends) along the north boundary of the Gulf Stream pinch off and trap warm Sargasso Sea water in eddies that rotate clockwise, creating warm-core rings surrounded by cooler water.
Cold nearshore water spins off to the south of the Gulf Stream as counter-clockwise-rotating cold-core rings surrounded by warmer water. The cold rings consist of spinning cone-shaped masses of cold water that extend over 3.5 kilometers deep. These rings may exceed 500 kilometers in diameter at the surface. The diameter of the cone increases with depth and sometimes reaches all the way to the sea floor, where cones have a tremendous impact on sea floor sediment. Cold rings move southwest at speeds of 3 to 7 kilometers per day toward Cape Hatteras, where they often rejoin the Gulf Stream.

Storms

In class we discussed that in the most simple way we can think of the Jetstream as a vertically sheared flow on a rotating disc. An analysis of the potential vorticity equation then showed that any perturbation on this background flow will have to obey: \[ \phi_{zz} - \frac{N^2 k^2}{f^2} \phi = 0 \] the boundary conditions being no normal flow at the bottom (i.e., the ground) and top of the atmosphere (with fixed height \( D \)).
$\because \phi(x, z, t) = B \sinh\left( \alpha(z - D/2) \right) e^{i(kx + ly - \omega t)} \text{ with } \alpha = \frac{N k}{f}$
$\because e^{-i\omega t} = e^{-i k c t}, \quad \text{where} \quad c = \frac{\omega}{k}$
$\therefore \text{Let } c = c_r + i c_i\quad \text{(real part + imaginary part)}$
$ e^{-i k c t} = e^{-i k c_r t} \cdot e^{k c_i t}$
$\therefore \begin{cases} c_i > 0 & \Rightarrow \text{Instability (perturbation grows)} \\ c_i < 0 & \Rightarrow \text{Stability (perturbation decays)} \\ c_i = 0 & \Rightarrow \text{Neutral (pure oscillation)} \end{cases} $

Ocean Tides

(The atmosphere and solid Earth also experience tides — just dig a hole here and take a note for later.)

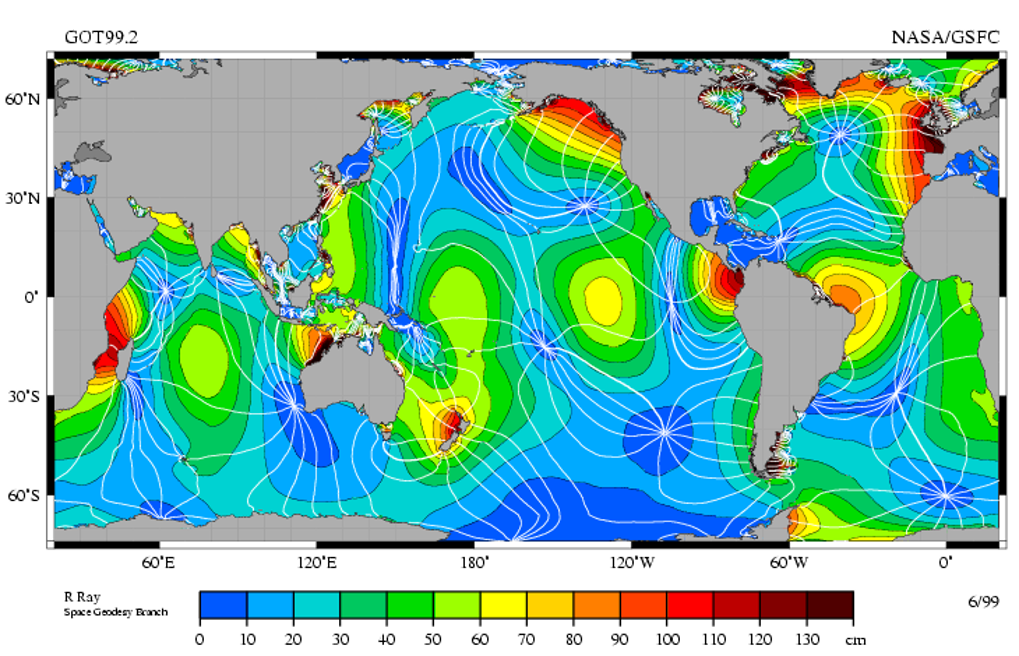

In a nutshell, ocean tides refer to the periodic motion of seawater caused by tidal forces exerted by astronomical object (mainly the Sun and the Moon). By convention, the vertical rise and fall of sea level is called the tide, while the horizontal motion is referred to as the tidal current.
In 1687, the physicist Isaac Newton proposed the law of universal gravitation. Following this, the equilibrium theory of the tide (also known as static tide theory) was developed. This theory assumes that the Earth's surface is entirely covered by a layer of ocean with uniform depth, and that the seawater has no inertia.
Regarding tidal force, it is often confused with gravitational force. In fact, the tidal force is the resultant of the gravitational force from a astronomical object and the inertial centrifugal force associated with the Earth's orbital motion around that body.
For the whole year, the sun is in the middle and the earth revolves around the sun. One circle is one year. The moon revolves around the earth once and returns to roughly the same relative position, which takes about one month. The earth's equatorial plane has an angle of intersection with the white plane of the moon orbiting the earth, and the ecliptic plane of the earth orbiting the sun also has an angle. Therefore, in addition to the equator, tides in other places on the earth also occur. The phenomenon varies from day to day. This is the equilibrium tide theory, which was mainly proposed by Newton. Above is a distribution map of the global tidal component (the main half-day tidal component of the lunar), and you can roughly understand the global tidal distribution.

El Niño/La Niña

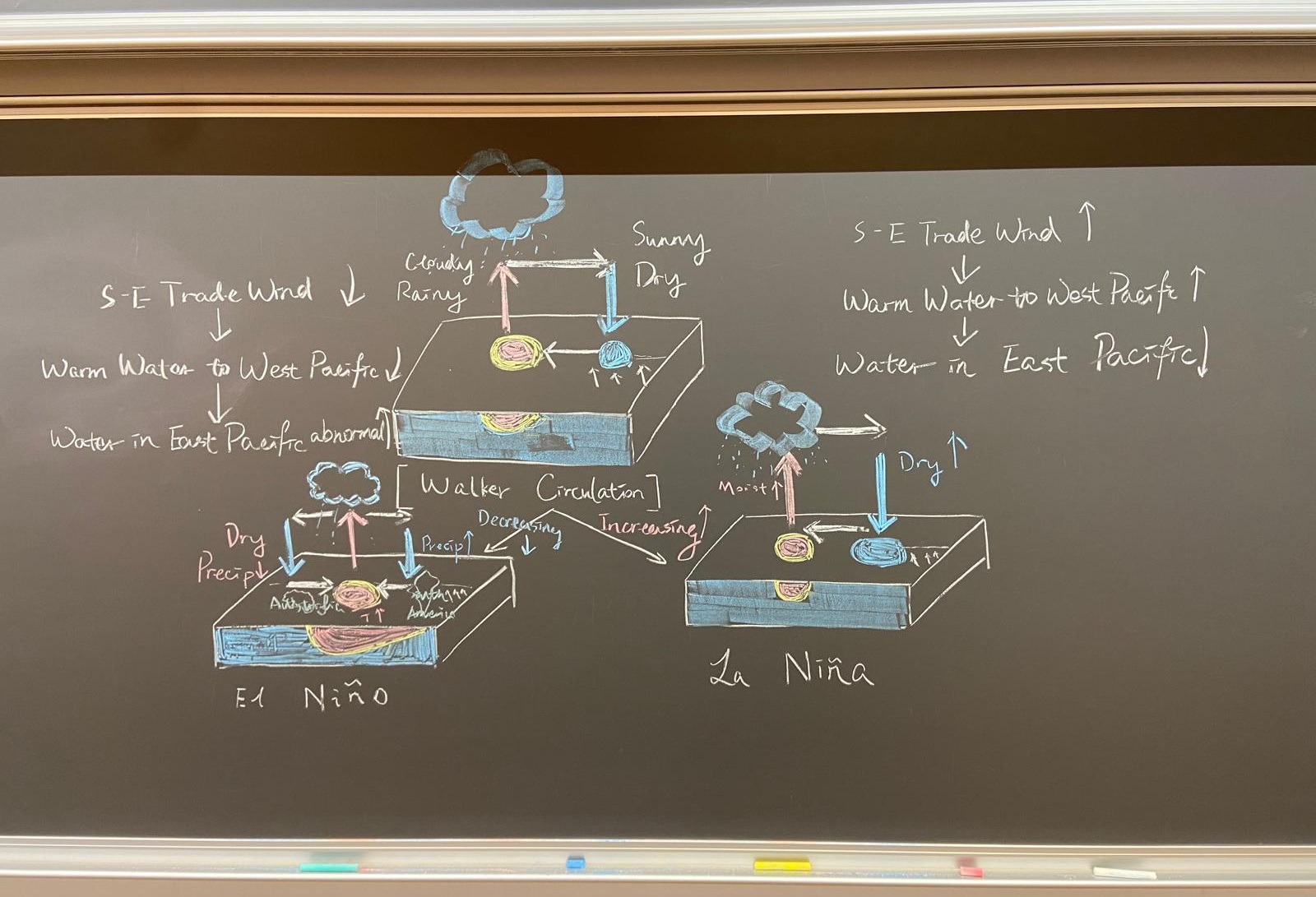

The tropical Pacific-wide circuit of air proceeding westward at the surface, rising over the (warm) region of persistent precipitation, returning eastward aloft, and descending over the cool eastern 2 Pacific, is called the Walker circulation, it is associated with the Walker circulation is the low surface pressure in the western Pacific and the high surface pressure in the east.
El Niño–Southern Oscillation (ENSO) is one of the most important climate phenomena on Earth due to its ability to change the global atmospheric circulation, which in turn, influences temperature and precipitation across the globe.
It has three phases, the two opposite phases “El Niño” and “La Niña,” require certain changes in both the ocean and the atmosphere because ENSO is a coupled climate phenomenon. “Neutral” is in the middle of the continuum.
The phases of ENSO evolve differently each time they appear. The general recurrence time for warm and cold phases is around 4 years, with large variations around this mean. The literature often speaks of an ENSO band from 2 to 7 years. One way of describing ENSO evolution with time is to examine the SST anomalies in various regions of the Pacific.
ENSO can also have direct impacts on marine life. For example, during normal years, upwelling along the west coast of South America bring the nutrients to eupohotic zone, and thus favor marine life and fishery. During El Niño, however, upwelling is suppressed and thus the marine food chain is significantly affected, thus fishery declines.

Pacific Decadal Oscillation (PDO)

Pacific decadal oscillation (PDO) is one of the dominant modes of sea surface temperature (SST) variability in the North Pacific, and it shifts phases on an inter-decadal time scale usually covering more than 10 years. When the PDO index is positive (negative), SSTs in the central part of the North Pacific are likely to be lower (higher) than their normals (i.e., typical SST anomalies in the positive phase of the PDO). In addition, when the index is positive (negative), sea level pressures (SLPs) values in the high latitudes of the North Pacific are likely to be lower (higher) than their normals. This indicates that the Aleutian Low is stronger (weaker) than its normal in winter and spring (typical SLP anomalies in the positive phase of the PDO). The PDO has positive and negative phases.

• Positive phases of the PDO tend to be associated with periods of more rapid global warming whilst cold PDO events have been linked to severe droughts spanning many years in south western USA, as well as increased rainfall over eastern Australia.
• It is thought that negative phases could be linked to times of slower warming. This is because cold phases of the PDO tend to increase mixing of colder, deep ocean waters with warmer surface waters. This temporarily reduces the rate of global warming caused by increasing greenhouse gas emissions. Positive phases have the opposite effect.

The cause of changes in the PDO has yet to be identified and it may even be due to a combination of factors including long-lasting fingerprints of El Nino and La Nina events in the tropical Pacific Ocean; changes in atmospheric pressure the northern Pacific; the impact of industrial pollution; and natural variability.
