Lecture 3 – Origin of Carbon and Water on Earth

import numpy as np
import matplotlib
import matplotlib.pyplot as plt
from matplotlib.ticker import MultipleLocator, FormatStrFormatter, AutoMinorLocator
import math

# Solar parameters
L_sun = 3.83 * 10**26  # J/s
R_sun = 6.96 * 10**8   # meter
T_sun = 5780.          # Kelvin

rotated_labels = []

def text_slope_match_line(text, x, y, line):
    global rotated_labels
    xdata, ydata = line.get_data()
    x1 = xdata[0]
    x2 = xdata[-1]
    y1 = ydata[0]
    y2 = ydata[-1]
    rotated_labels.append({"text": text, "line": line, "p1": np.array((x1, y1)), "p2": np.array((x2, y2))})

def update_text_slopes(ax):
    global rotated_labels
    for label in rotated_labels:
        text, line = label["text"], label["line"]
        p1, p2 = label["p1"], label["p2"]
        sp1 = ax.transData.transform_point(p1)
        sp2 = ax.transData.transform_point(p2)
        rise = (sp2[1] - sp1[1])
        run = (sp2[0] - sp1[0])
        slope_degrees = math.degrees(math.atan(rise / run))
        text.set_rotation(slope_degrees)

def HRD(ADDSTAR, Temperature, Luminosity):
    cm = plt.cm.get_cmap('coolwarm_r')  # reversed colormap
    ax.scatter(xhr, yhr, c=xhr, cmap=cm, s=zhr, zorder=2, alpha=0.8)
    if ADDSTAR == 'yes':
        thestar = ax.scatter(Temperature, Luminosity, color='lightseagreen', lw=2, s=500,
                             marker='*', facecolor='none', zorder=3)
        return thestar

# Read the star data extracted with online plot digitizer.
HRstars = np.genfromtxt('HRstars.csv', delimiter=',')
xhr = HRstars[:, 0]
yhr = HRstars[:, 1]
zhr = (np.array(yhr) / (np.array(xhr) / T_sun)**4)**0.25
zhr = 12 * zhr / min(zhr)
# Read the Sun evolution data
SunEvoldata = np.genfromtxt('SunEvol.csv', delimiter=',')
xse = SunEvoldata[:, 0]
yse = SunEvoldata[:, 1]
MainStagedata = np.genfromtxt('MainStage.csv', delimiter=',')
xms = MainStagedata[:, 0]
yms = MainStagedata[:, 1]
# Generate constant radii lines
R = np.array([0.001, 0.01, 0.1, 1., 10., 100., 1000.])
T = np.linspace(1000., 50000., num=50)
xloc = np.array([48000, 48000, 48000, 48000, 48000, 28000, 8000])
yloc = (xloc / T_sun)**4 * R**2

fig = plt.figure(figsize=(12, 8), dpi=300)
ax = plt.gca()
fig.patch.set_facecolor('none')

# Constant radius lines
for i in range(len(R)):
    L = (T / T_sun)**4 * R[i]**2
    greyline, = ax.plot(T, L, '--', c='silver', lw=0.8, zorder=1)
    t = ax.annotate(str(R[i]) + '$R_{\odot}$', xy=(xloc[i], yloc[i]), xytext=(12, 0),
                    textcoords='offset points', ha='left', va='center_baseline',
                    color='#d6ebff')
    text_slope_match_line(t, 40000, L[-1], greyline)

cm = plt.cm.get_cmap('coolwarm_r') # Inversed color bar
sc = ax.scatter(xhr, yhr, c=xhr, cmap=cm, s=zhr, zorder=2, alpha=0.8)

cbar = plt.colorbar(sc, ax=ax)
cbar.set_label('Temperature (K)', color='#d6ebff')
cbar.ax.yaxis.set_tick_params(color='#d6ebff')
plt.setp(cbar.ax.get_yticklabels(), color='#d6ebff')
for spine in cbar.ax.spines.values():
    spine.set_edgecolor('#d6ebff')

ax.set_facecolor('none')
ax.tick_params(axis='both', which='both', colors='#d6ebff')
ax.xaxis.label.set_color('#d6ebff')
ax.yaxis.label.set_color('#d6ebff')
ax.title.set_color('#d6ebff')
for spine in ax.spines.values():
    spine.set_color('#d6ebff')

ax.set_xlim(2000, 50000)
ax.set_ylim(1e-5, 1e7)
ax.invert_xaxis()
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_xlabel(r'$Temperature\ (K)$')
ax.set_ylabel(r'$Luminosity\ (L/L_{\odot})$')

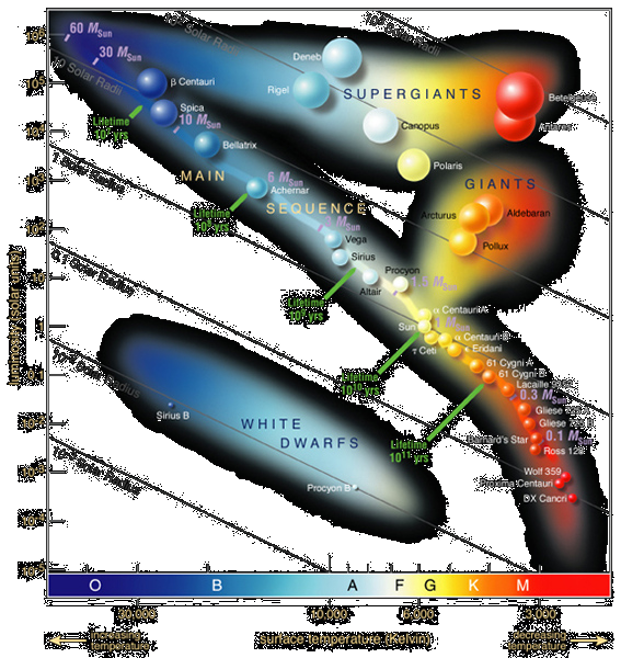

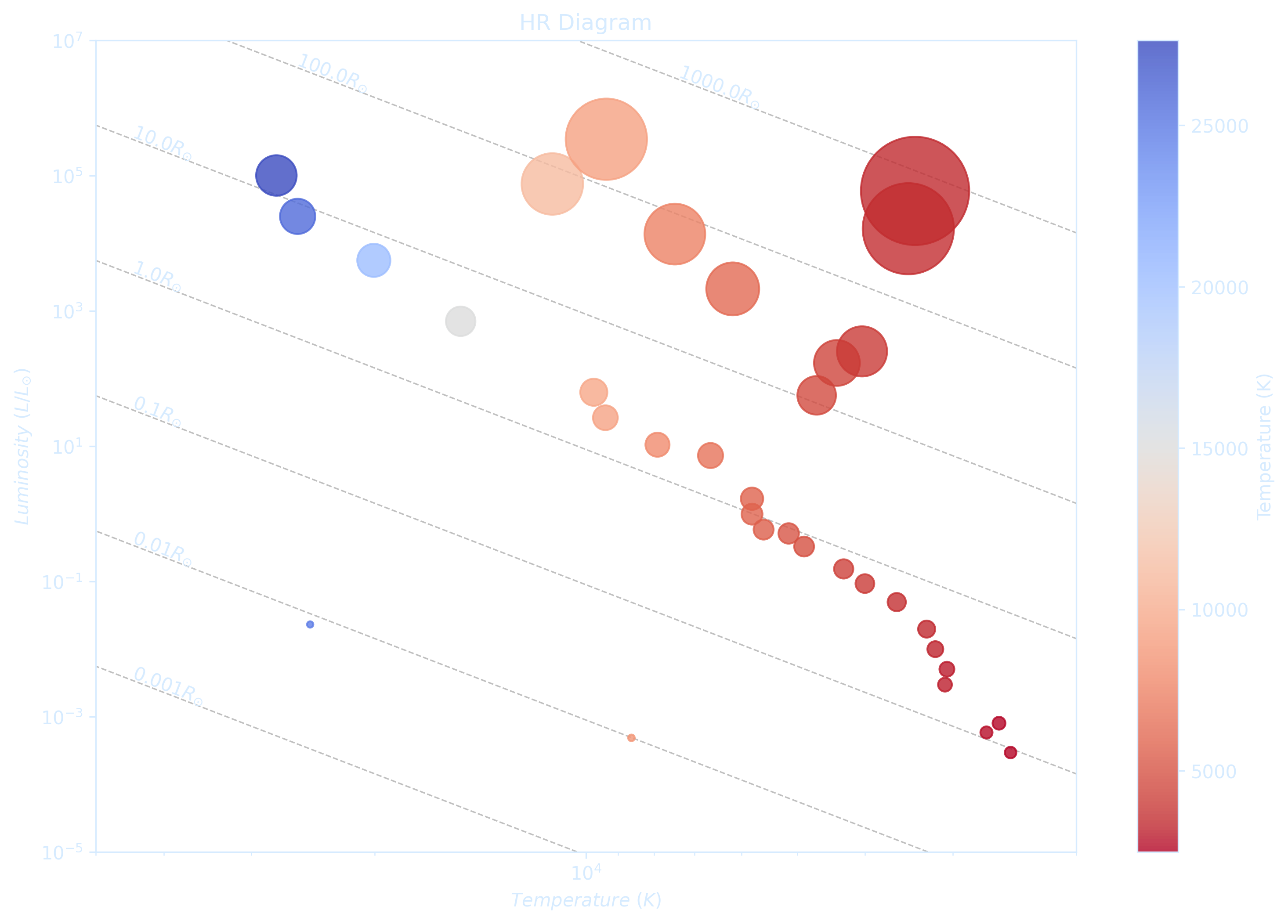

ax.set_title('HR Diagram')

update_text_slopes(ax)
plt.show()
