NFYB21003U Fluid Mechanics

Vorticity and Potential Vorticity

Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7

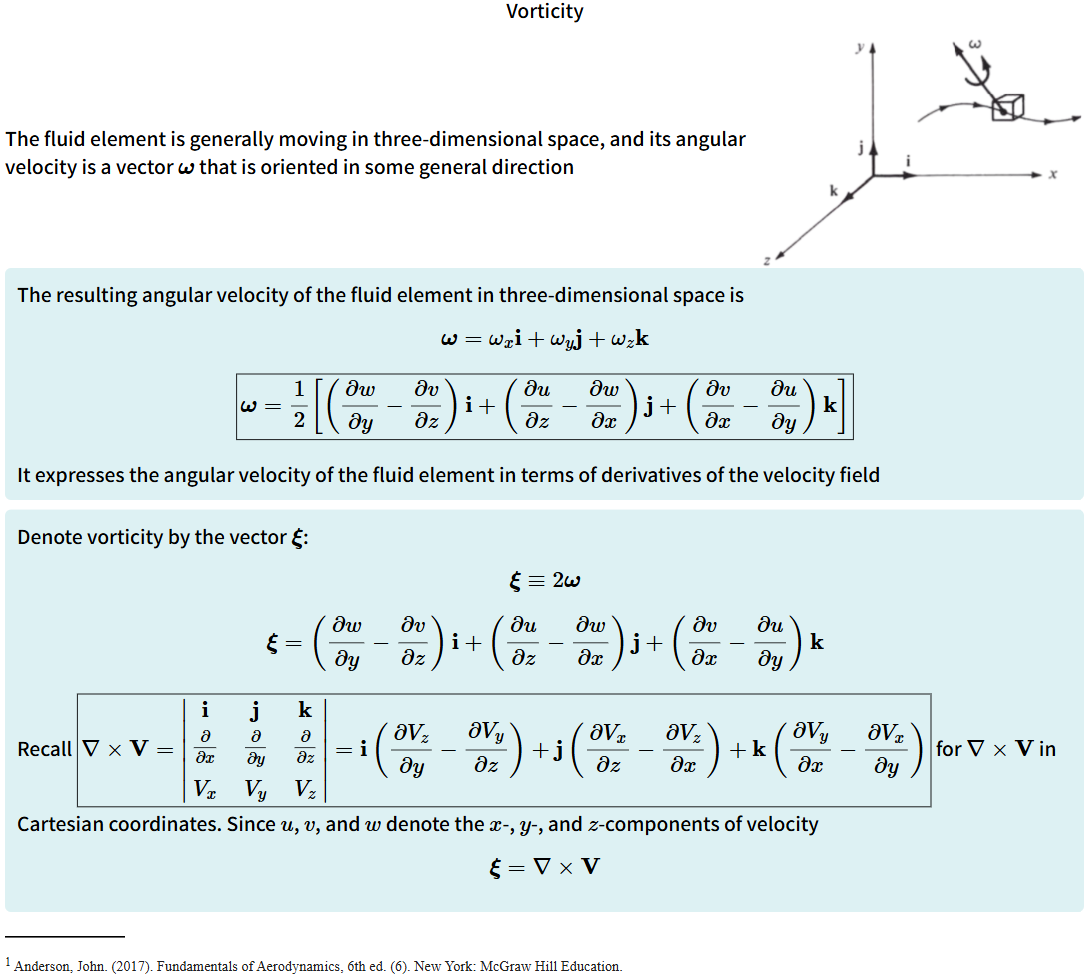

Slide 8

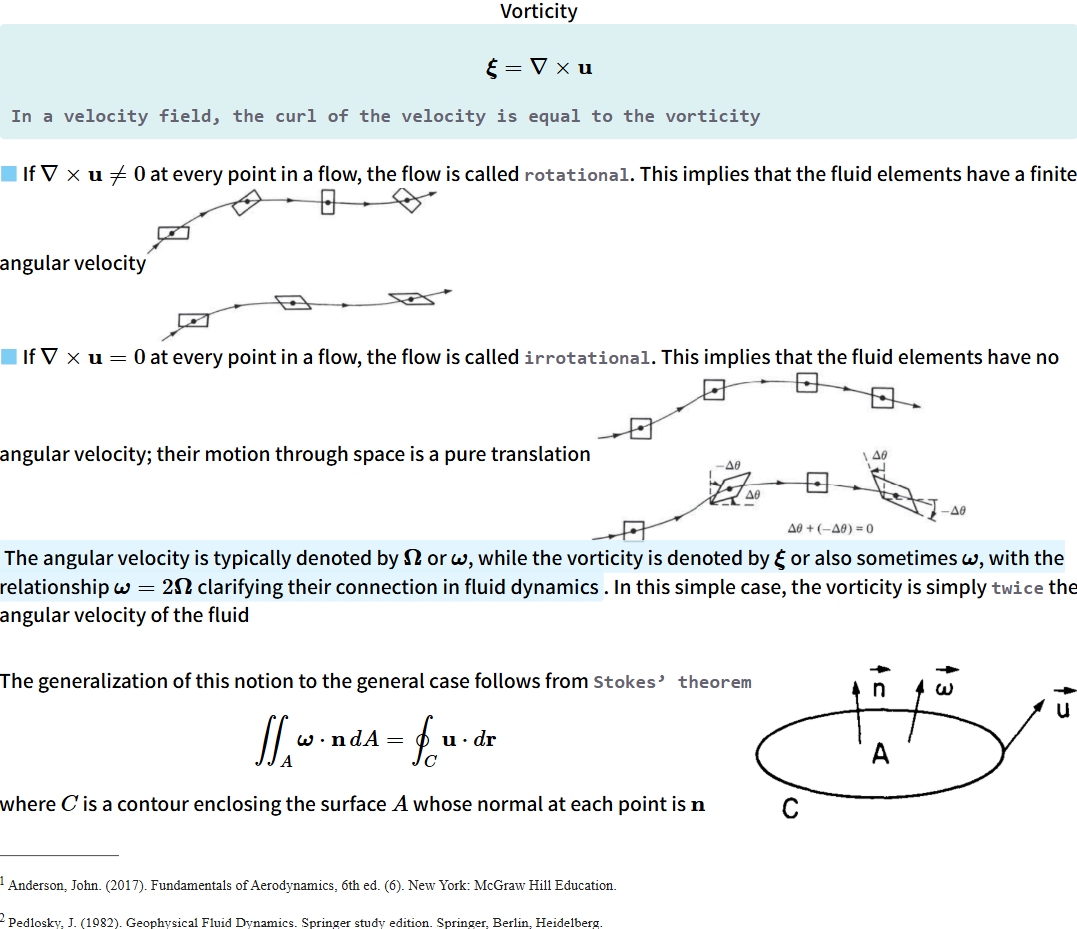

Slide 9

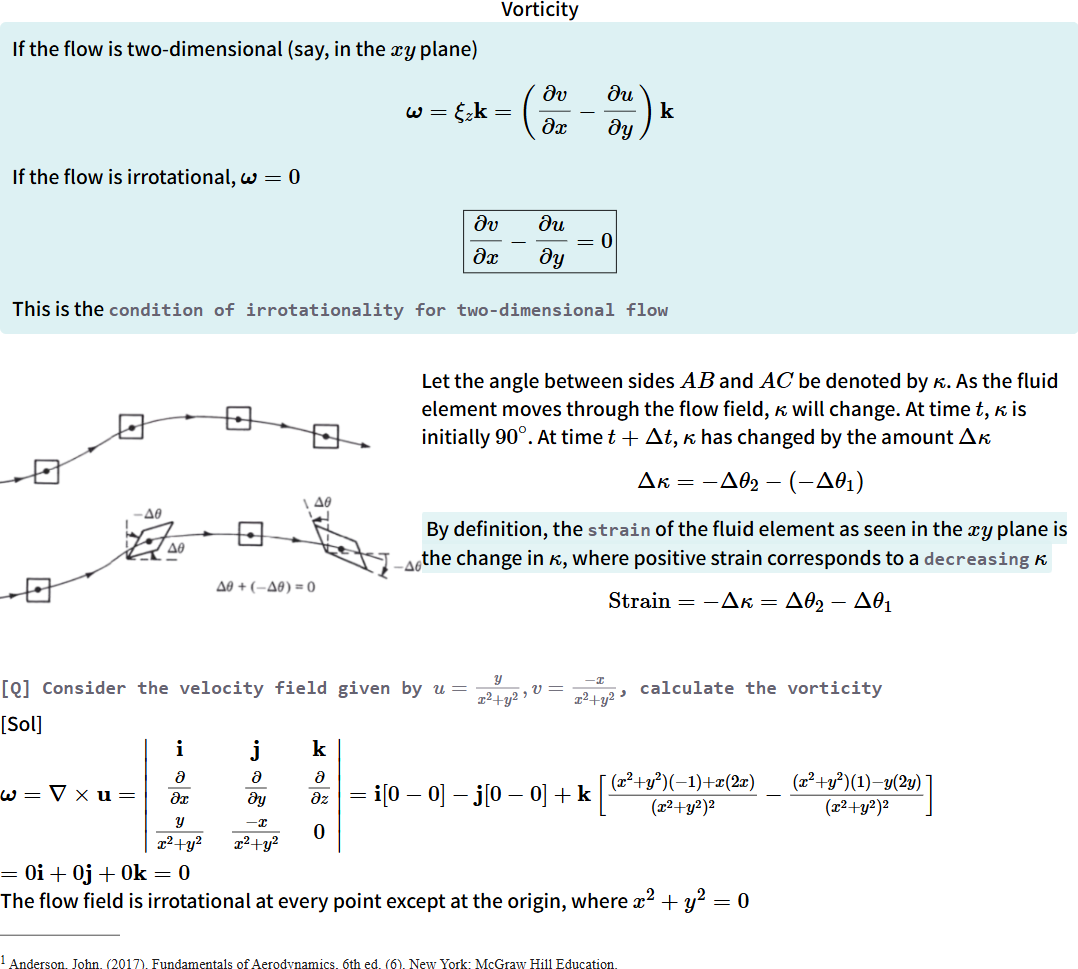

Slide 10

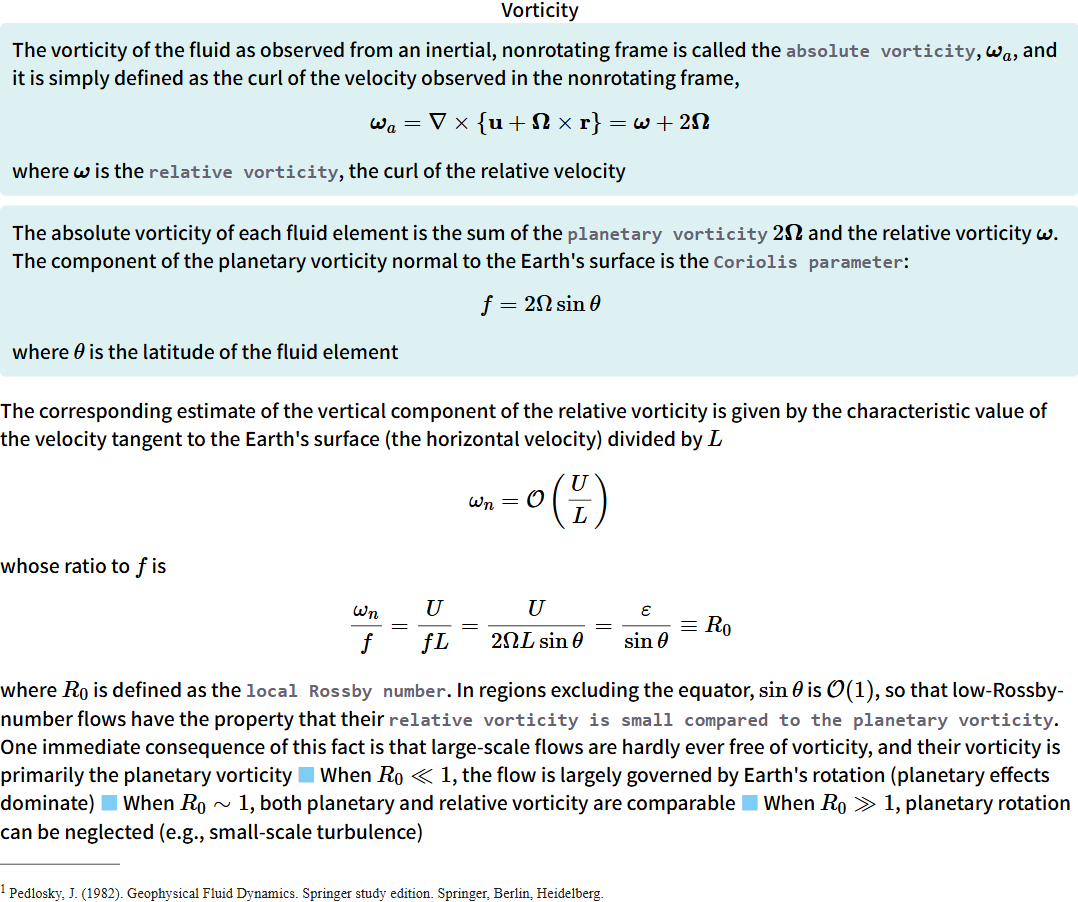

Slide 11
Slide 12
Slide 13
Slide 14
Slide 15
Slide 16

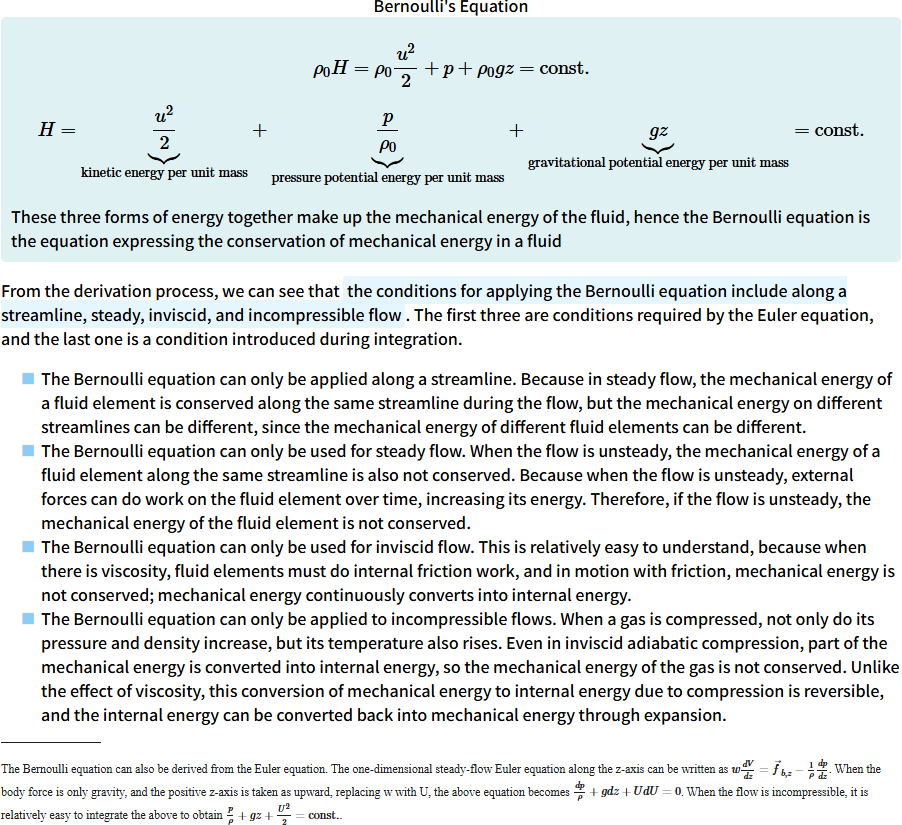

Slide 17

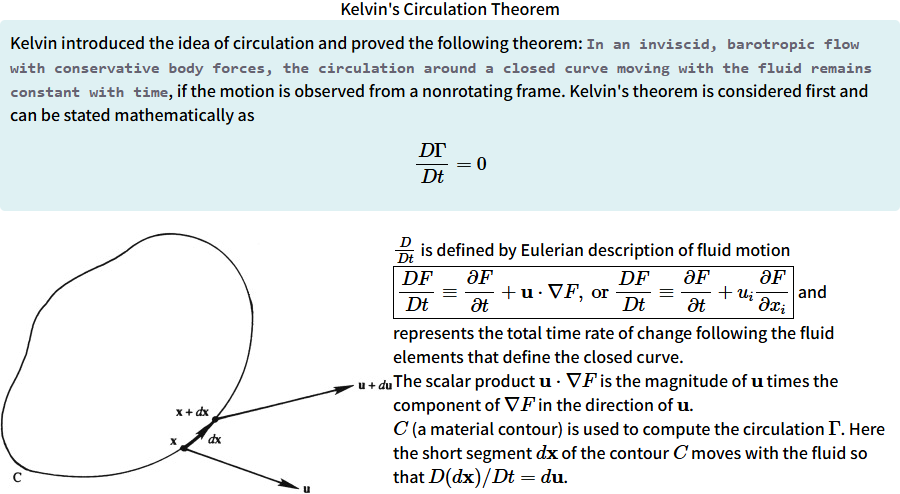

Slide 18

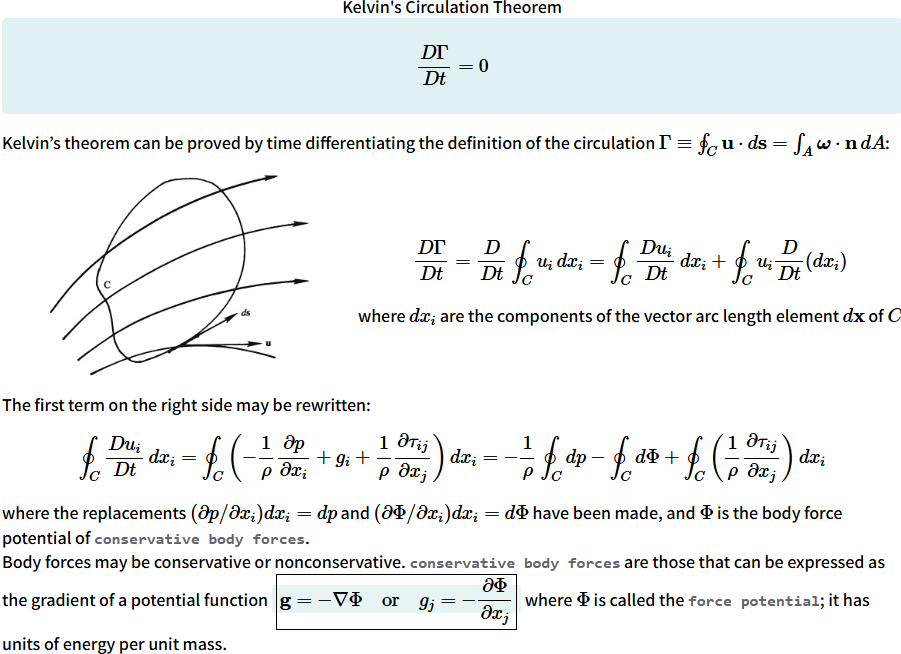

Slide 19

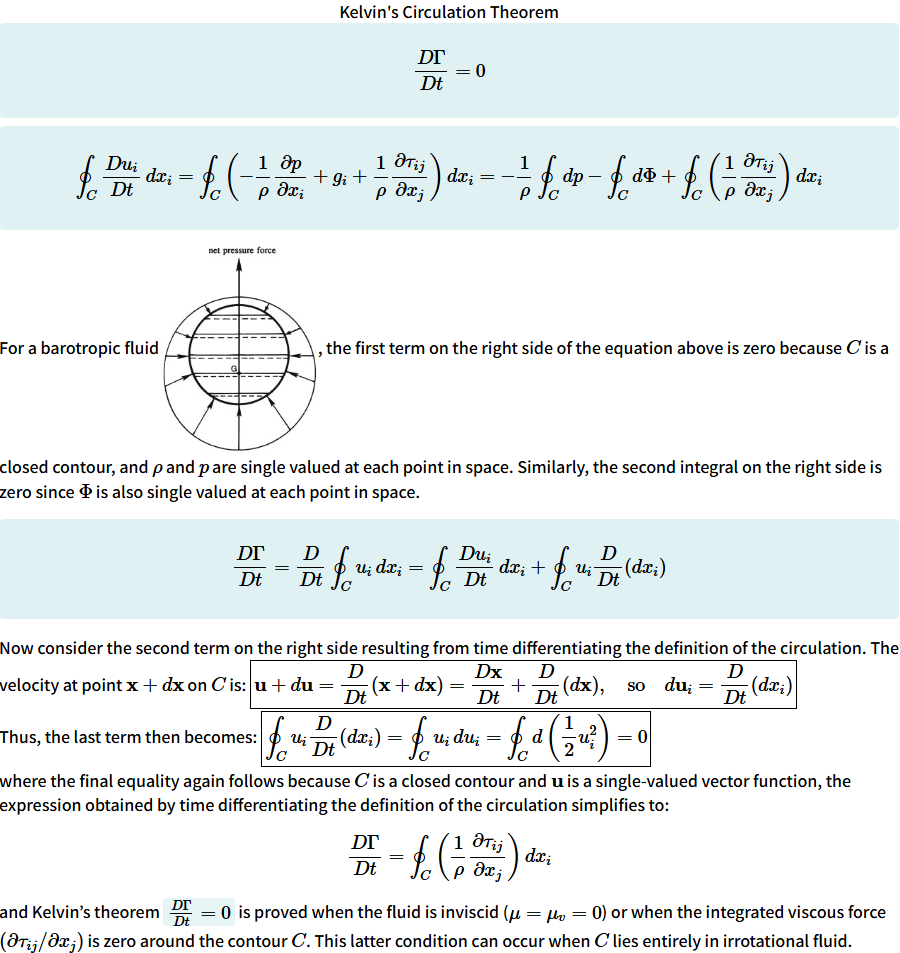

Slide 20

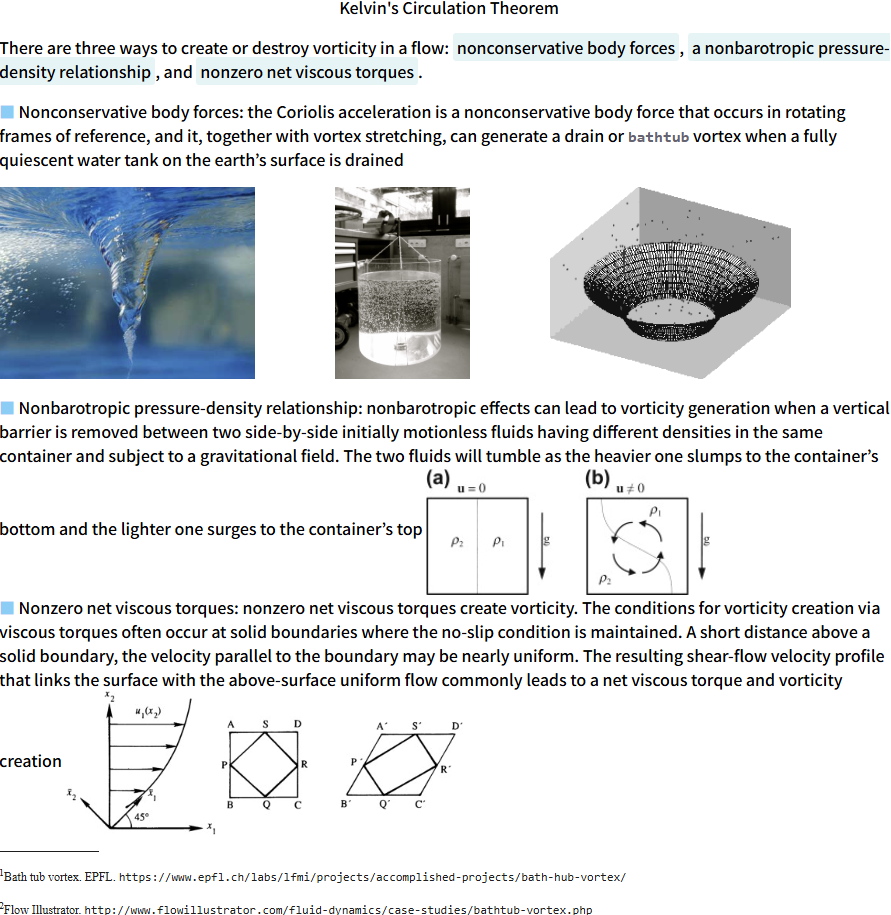

Slide 21

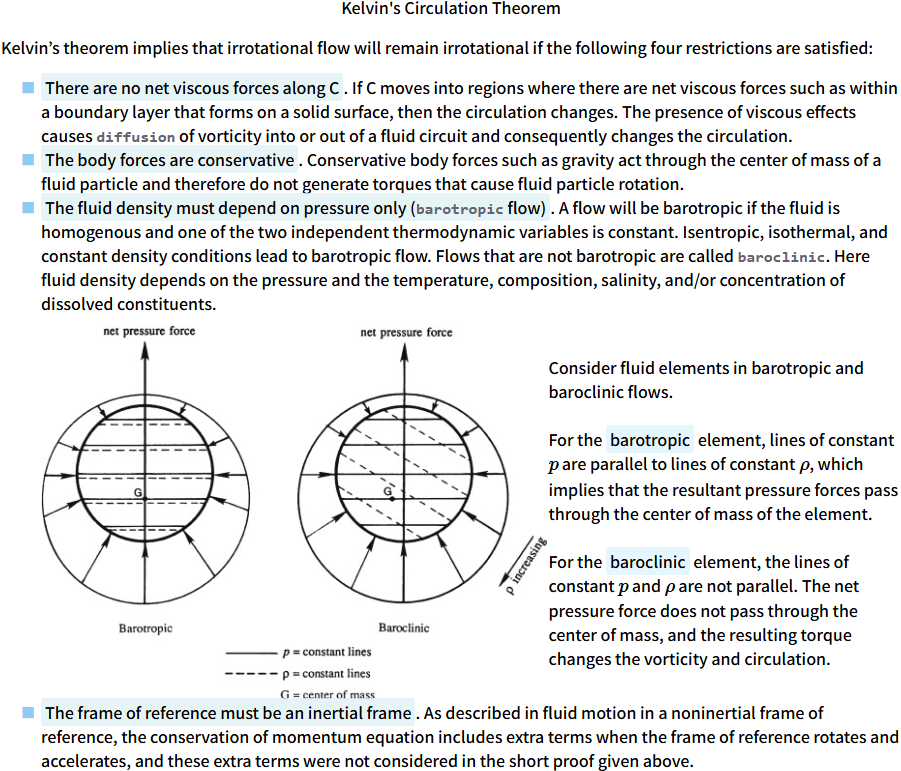

Slide 22

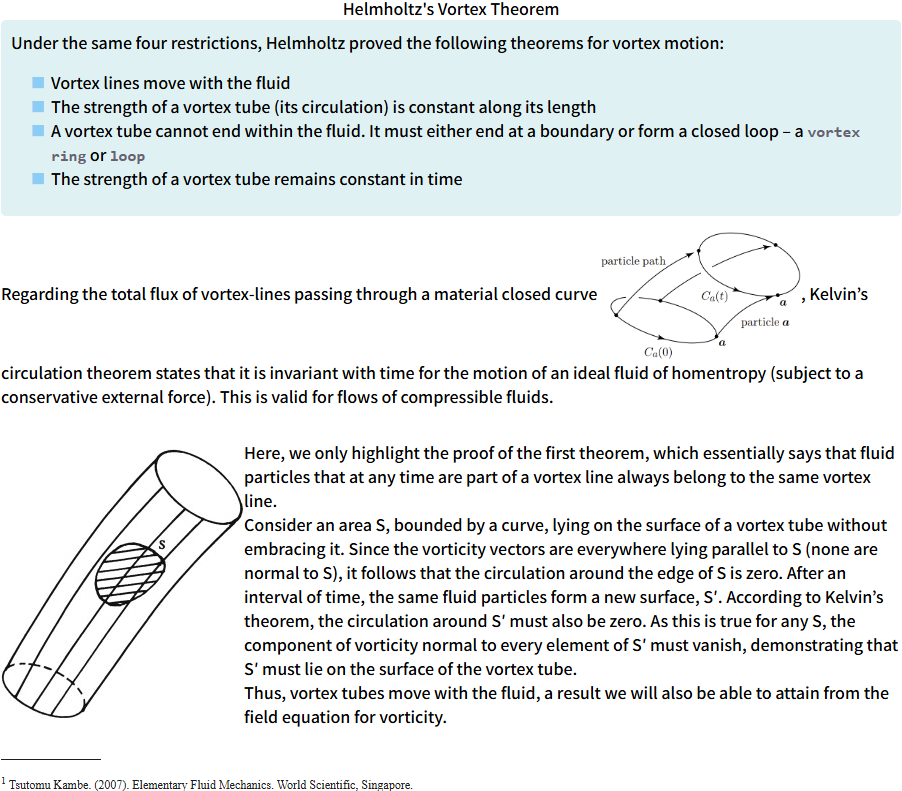

Slide 23

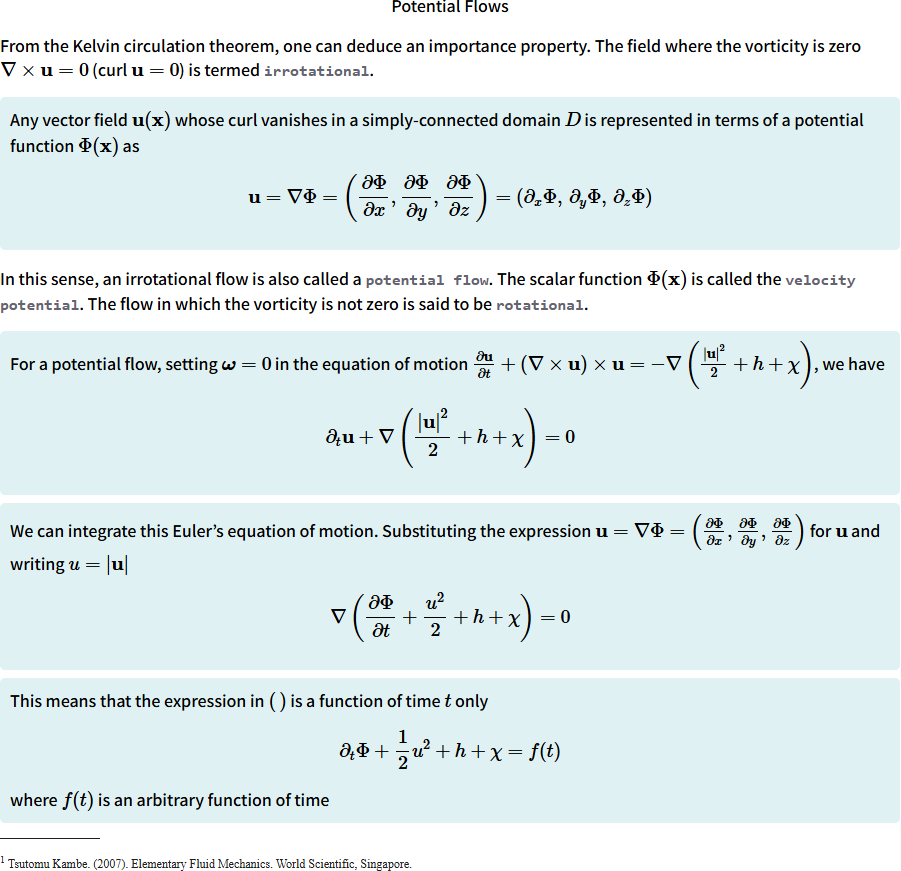

Slide 24

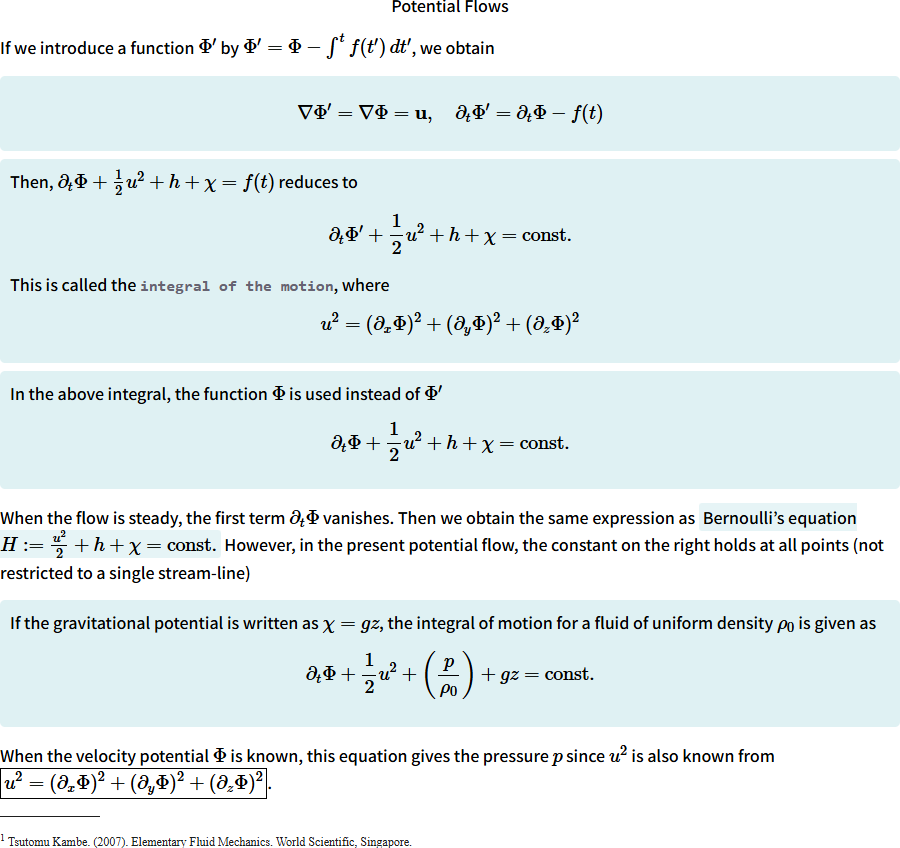

Slide 25

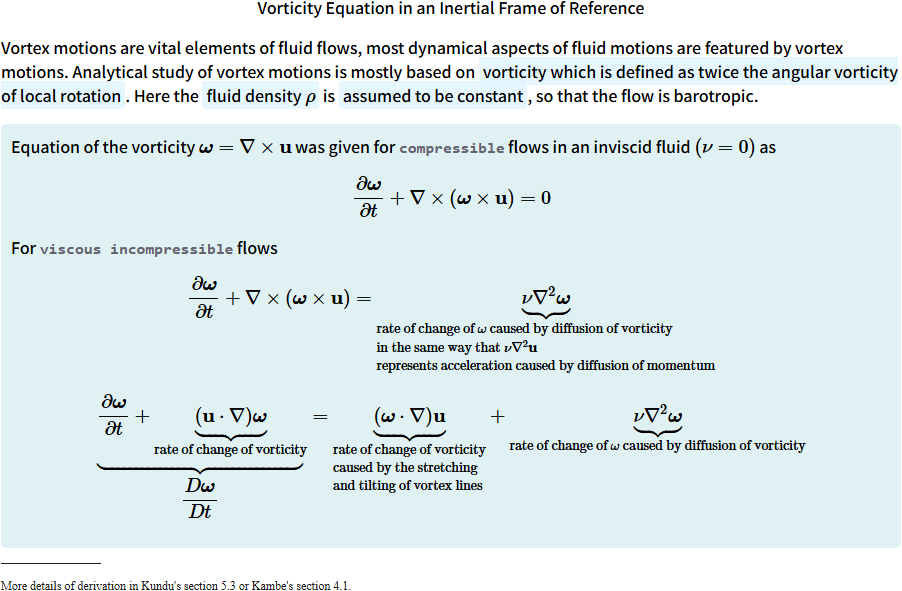

Slide 26

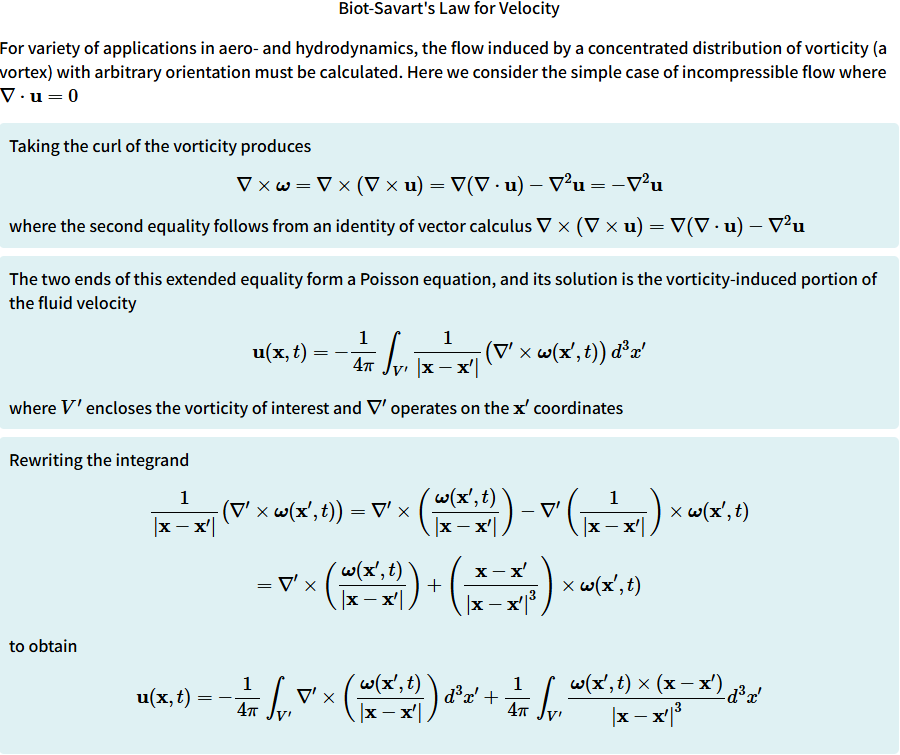

Slide 27

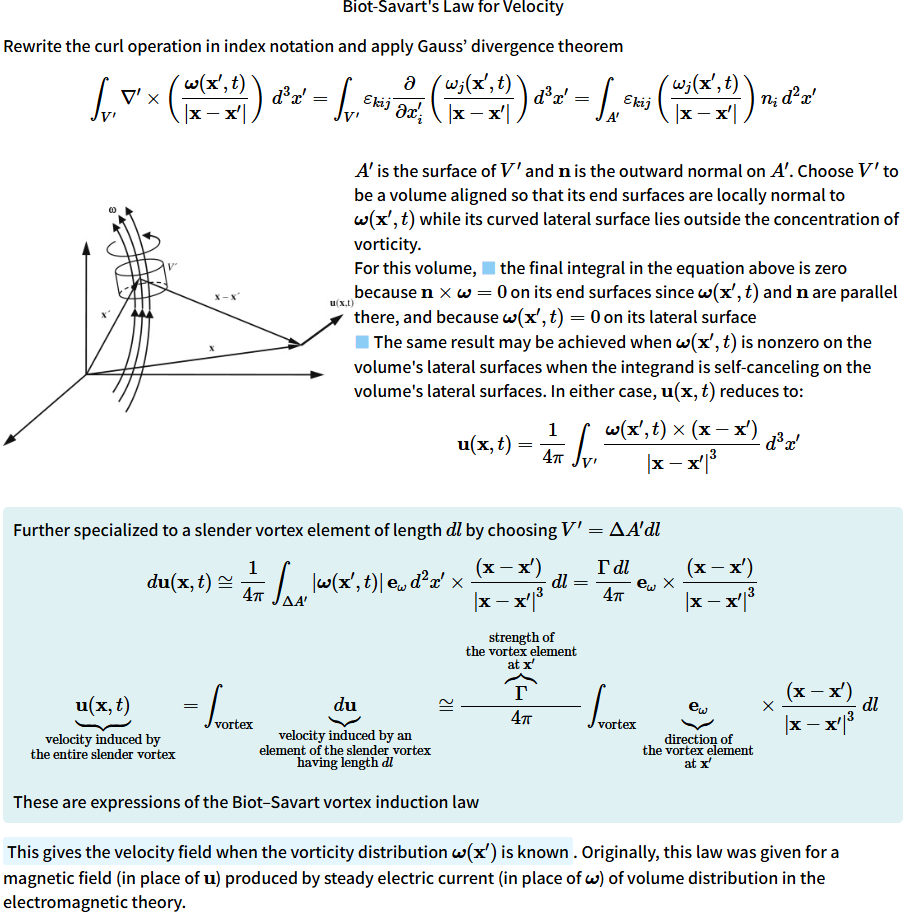

Slide 28

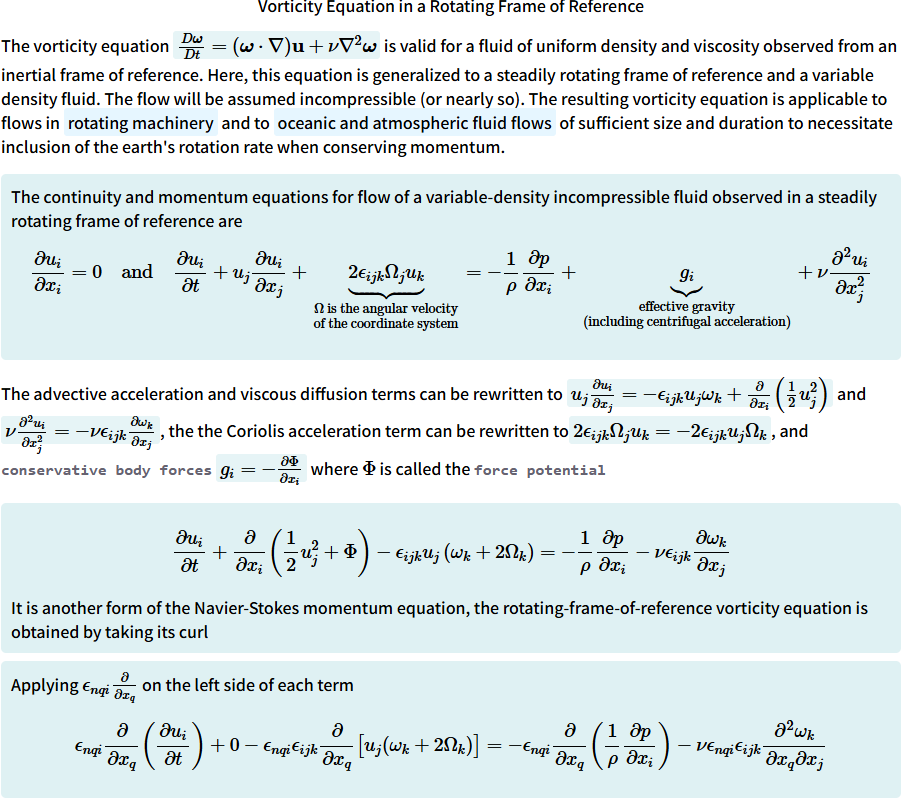

Slide 29

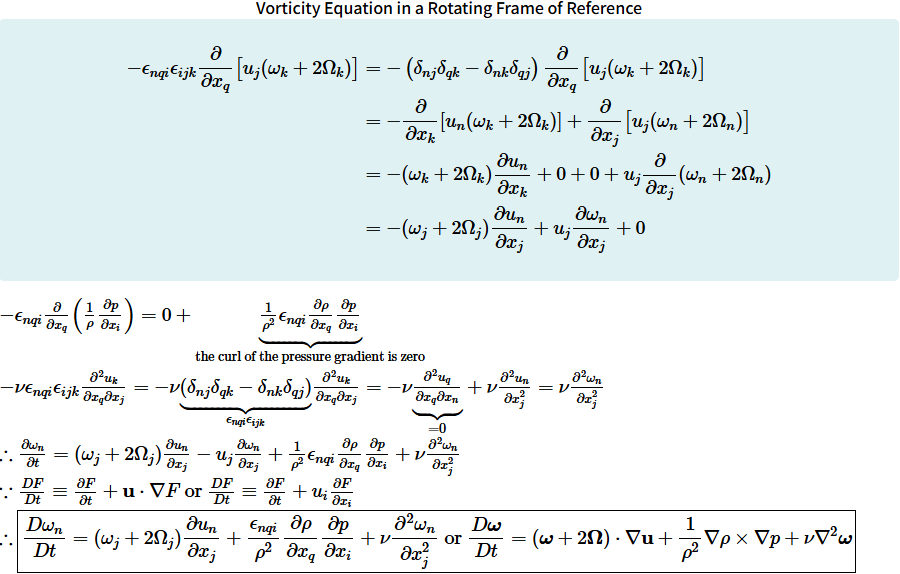

Slide 30
Slide 31

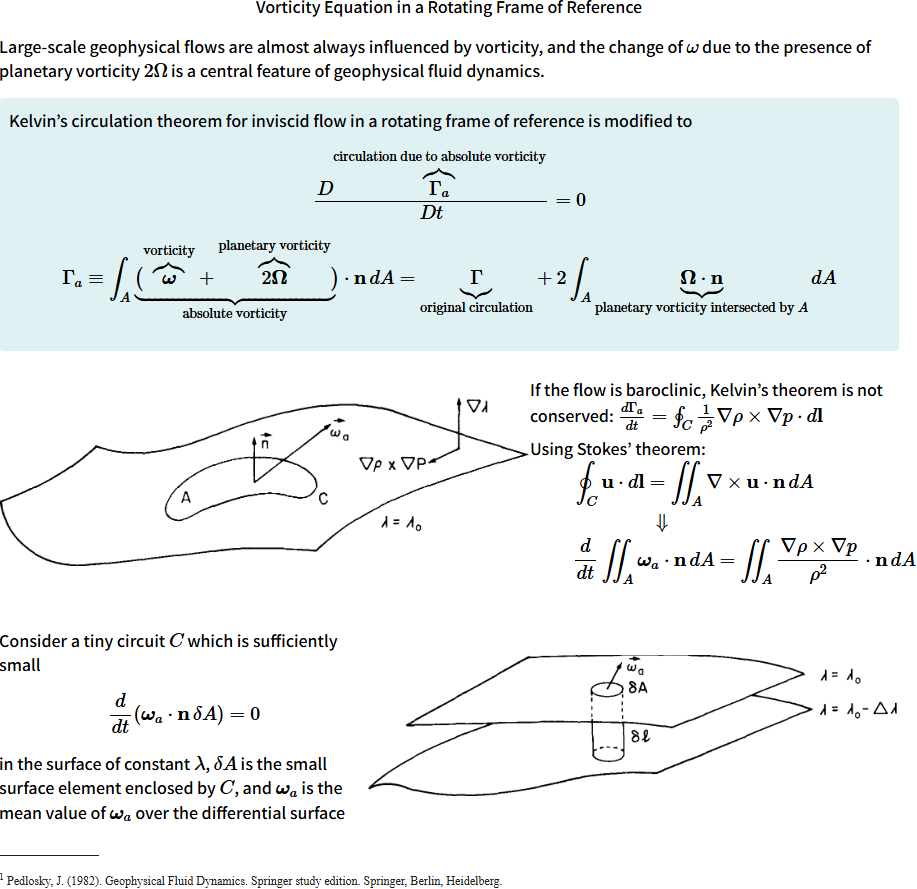

Slide 32

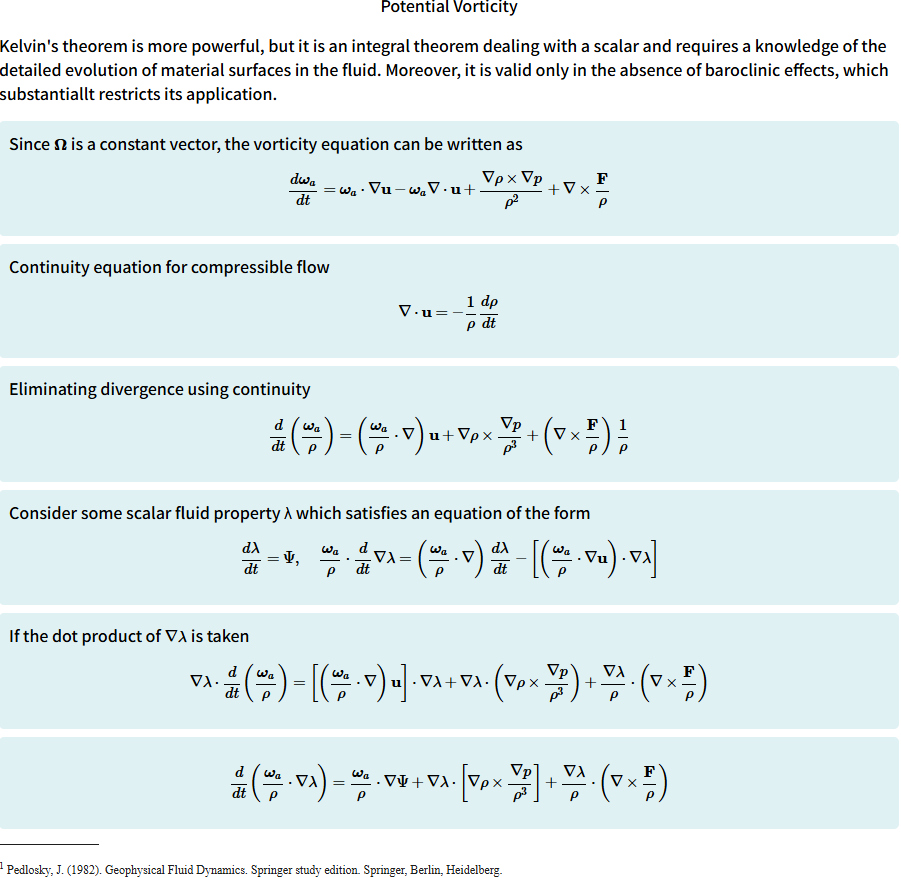

Slide 33
Slide 34

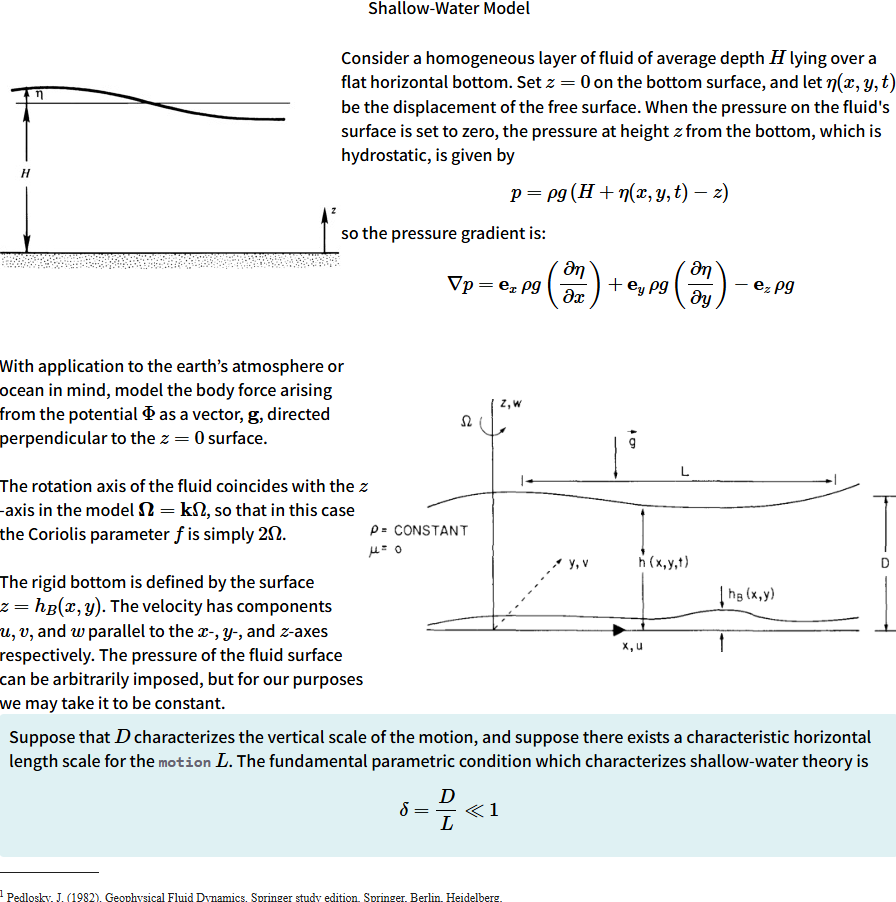

Slide 35

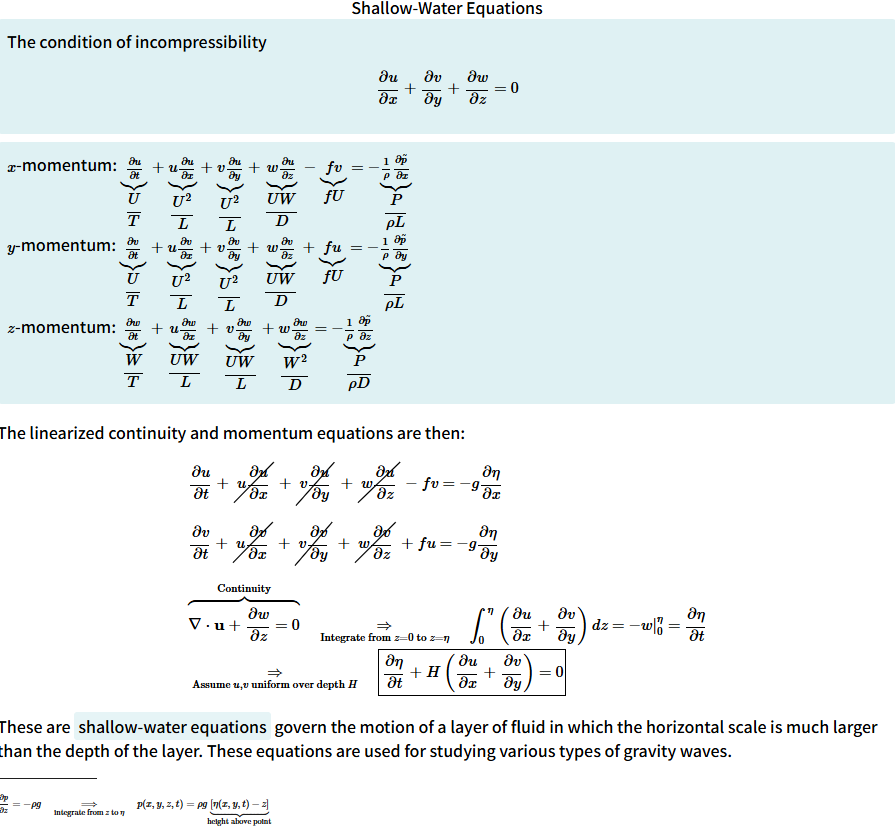

Slide 36
Slide 37

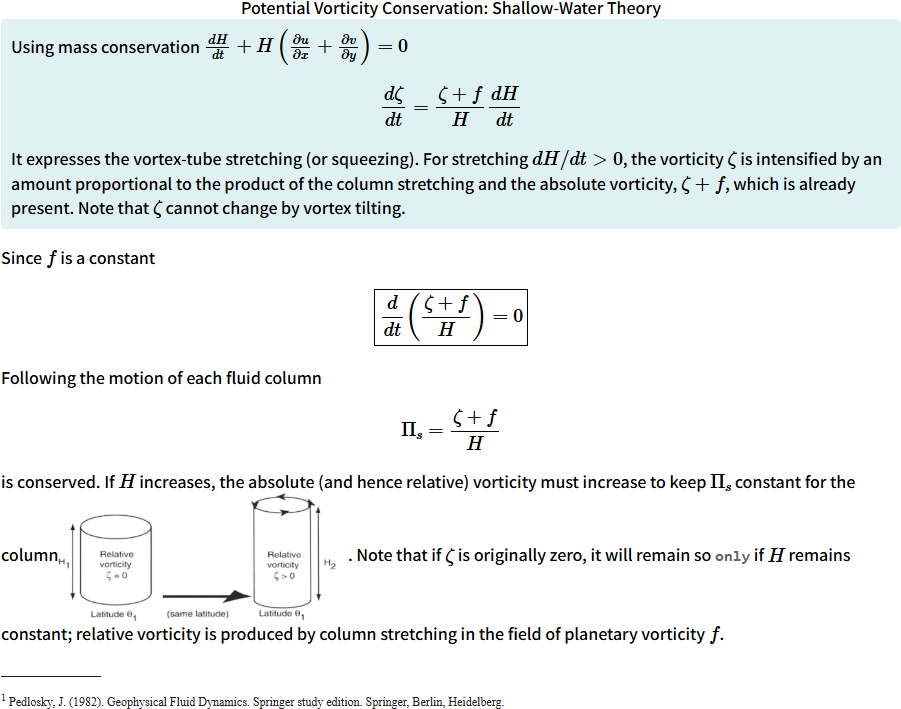

Slide 38
Slide 39
