NFYB21003U Fluid Mechanics

Vorticity Budget on a Rotating Sphere

Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Slide 12

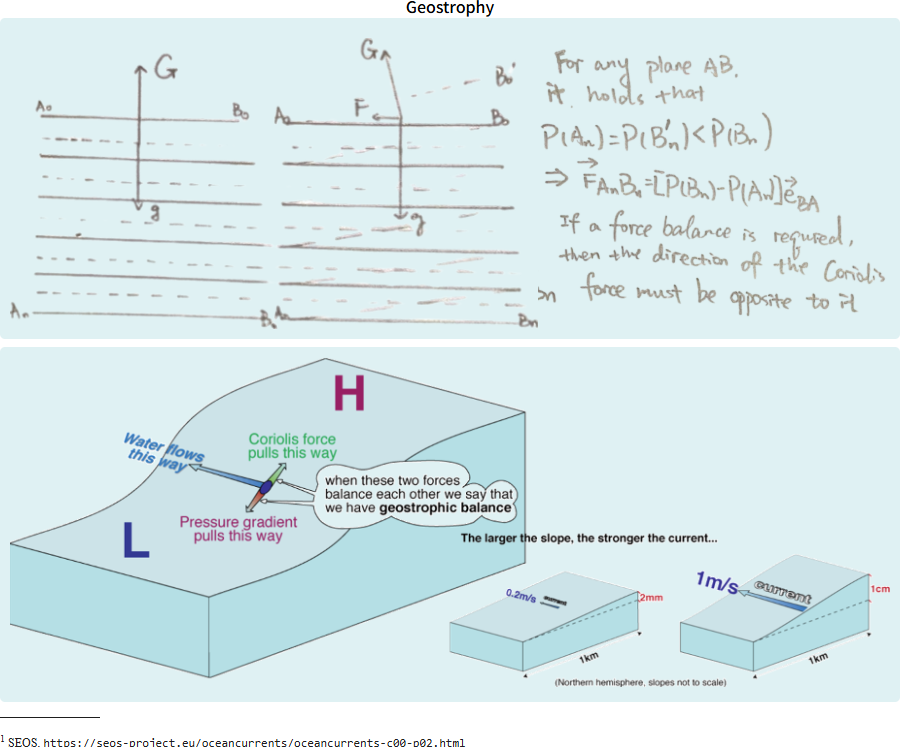

Slide 13
Slide 14

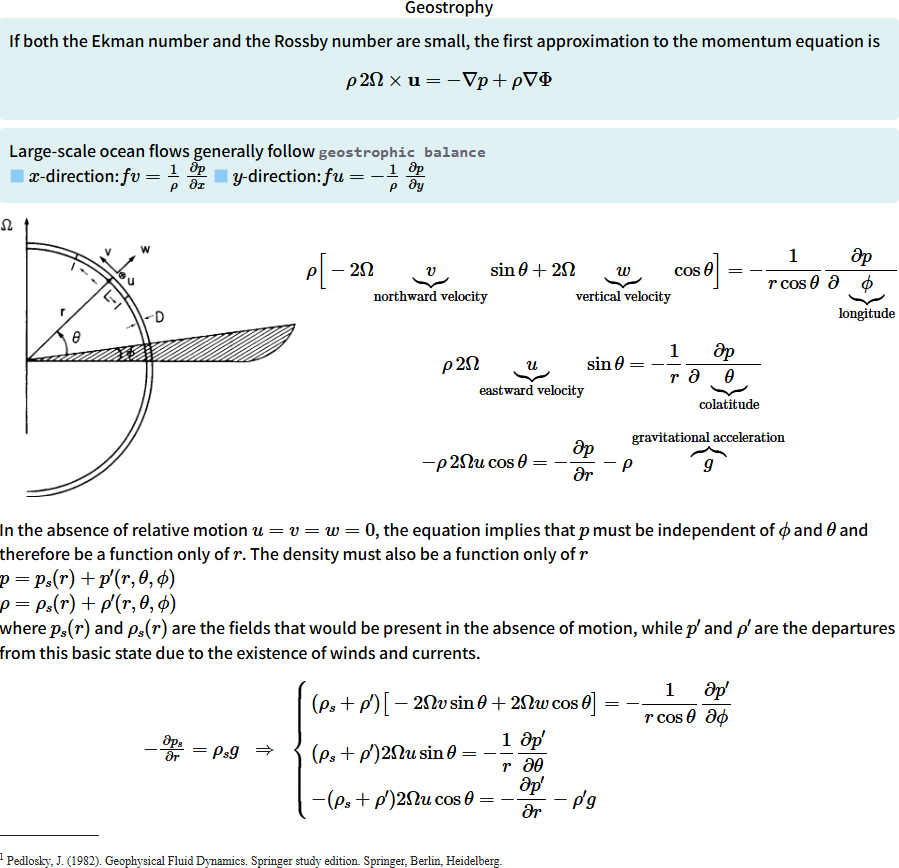

Slide 15
Slide 16

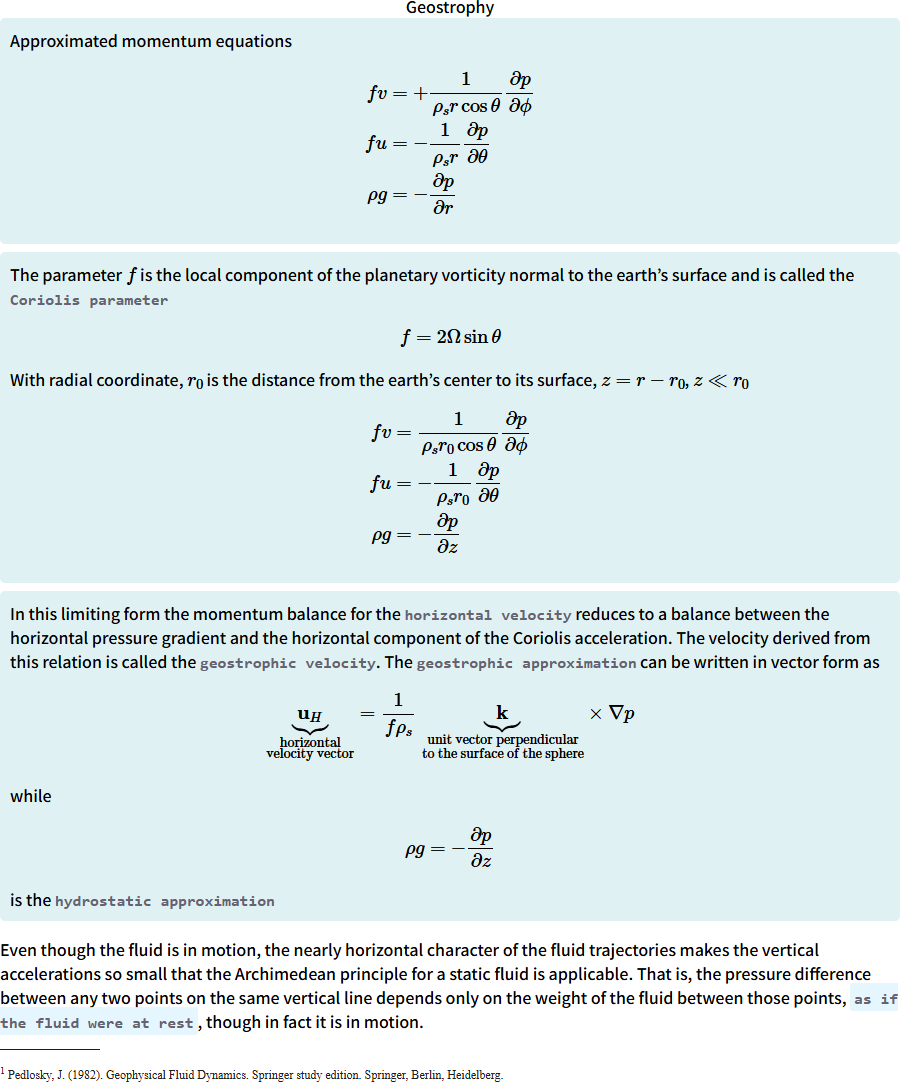

Slide 17
Slide 18
Slide 19
Slide 20
Slide 21
Slide 22
Slide 23
Slide 24
Slide 25
Slide 26

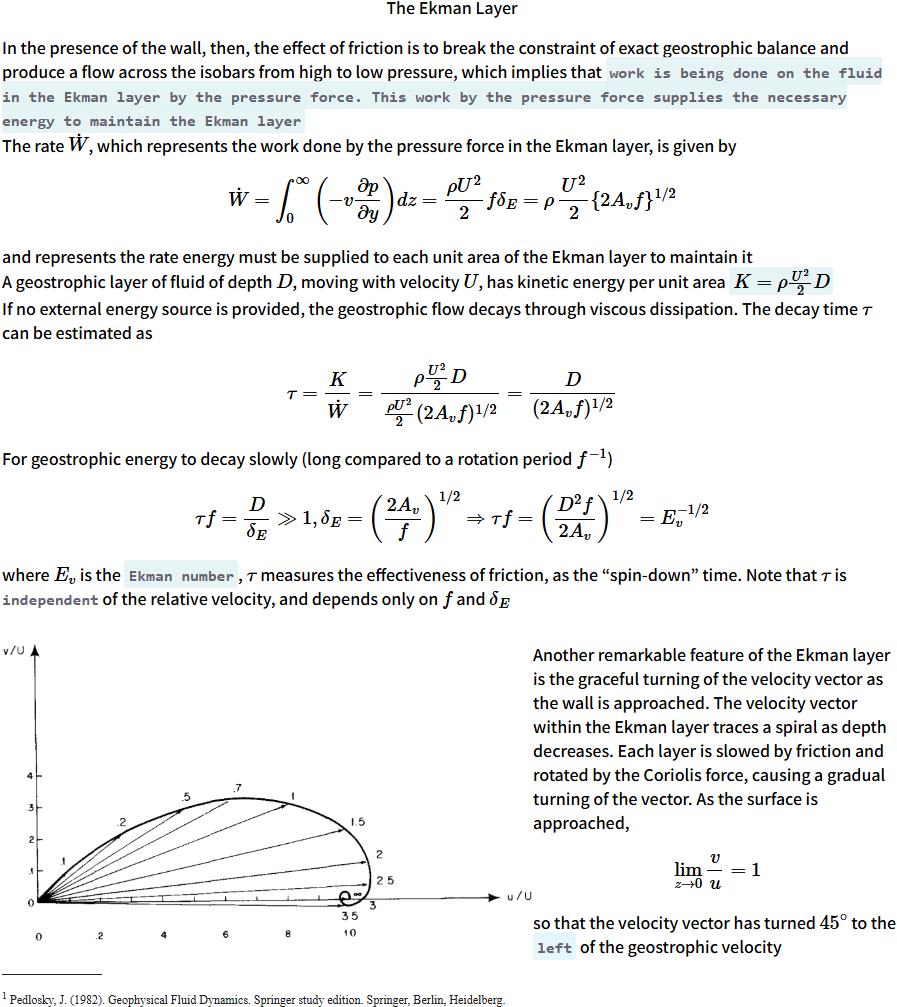

Slide 27
Slide 28
Slide 29
Slide 30
Slide 31
Slide 32
Slide 33

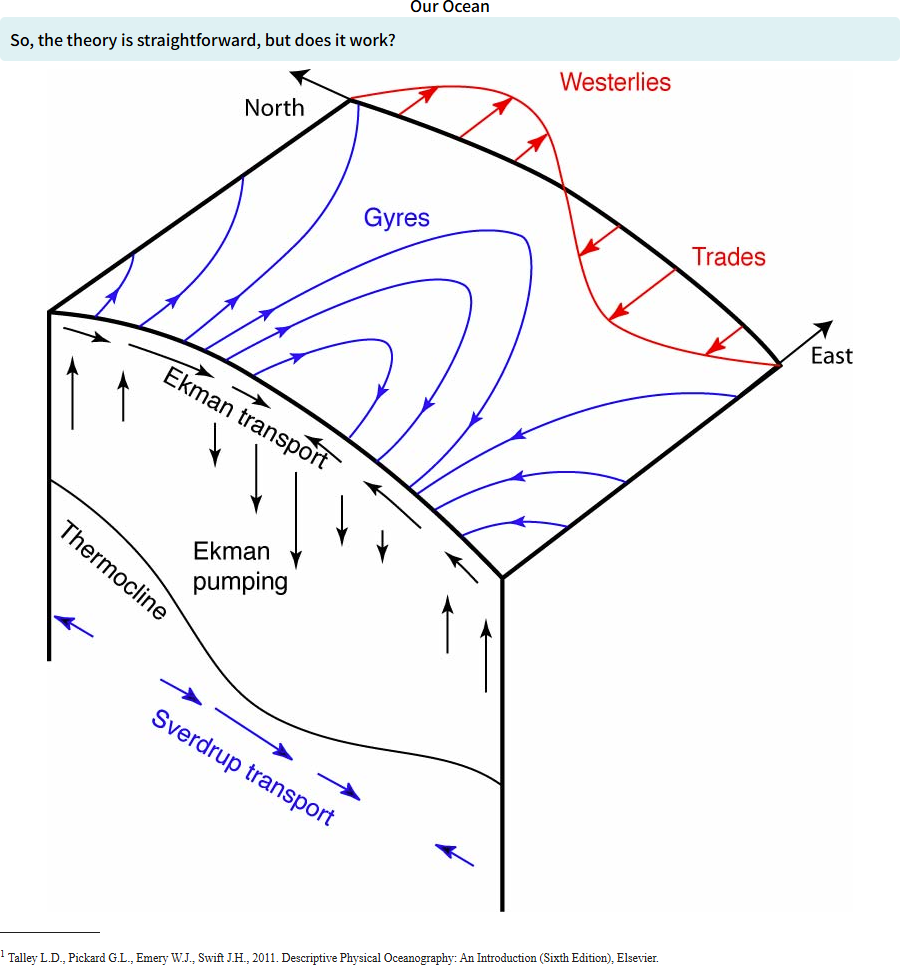

Slide 34
