NFYB21003U Fluid Mechanics

Slide 1

Slide 2

Slide 3

Slide 4

Slide 5

Slide 6

Slide 7

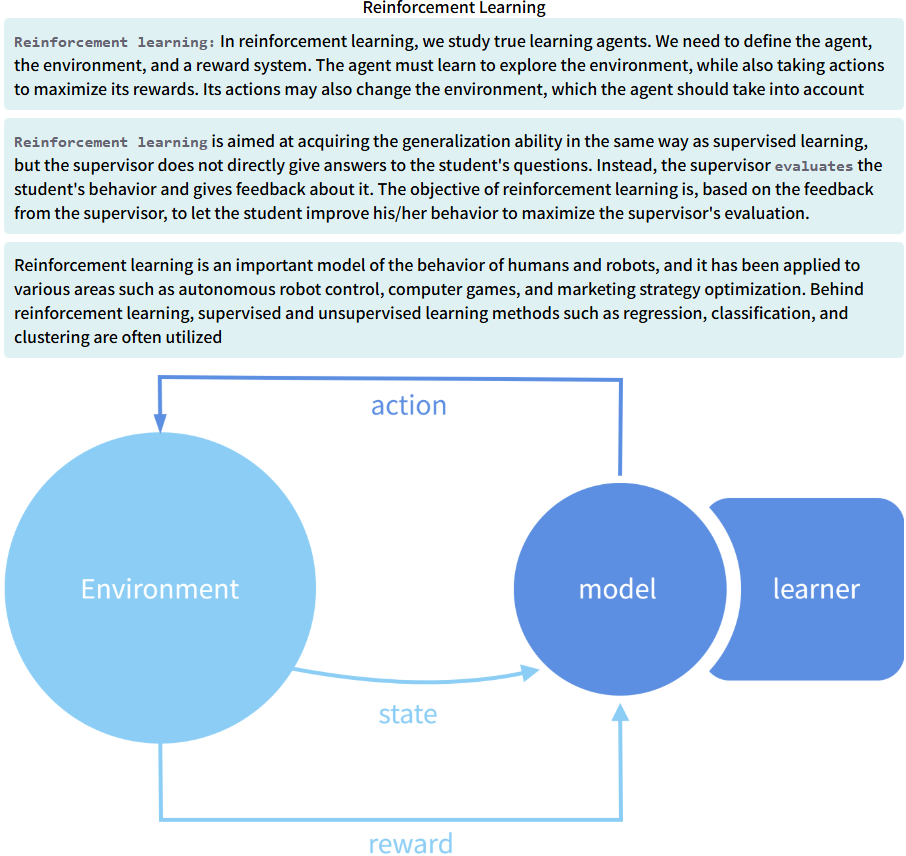

Slide 8

Slide 9

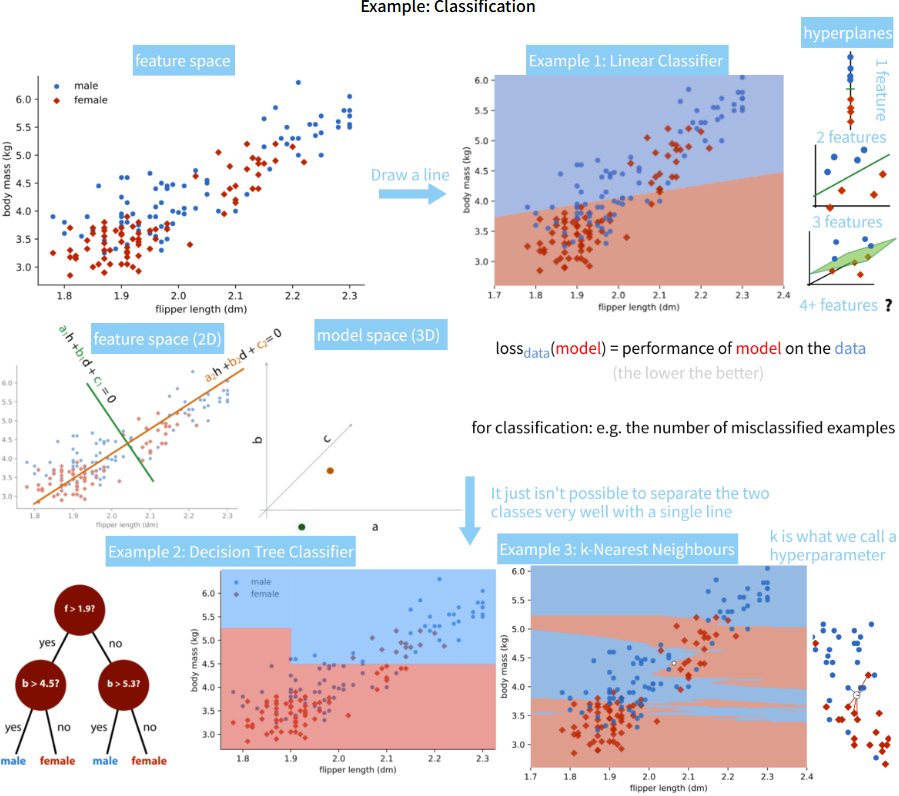

Slide 10

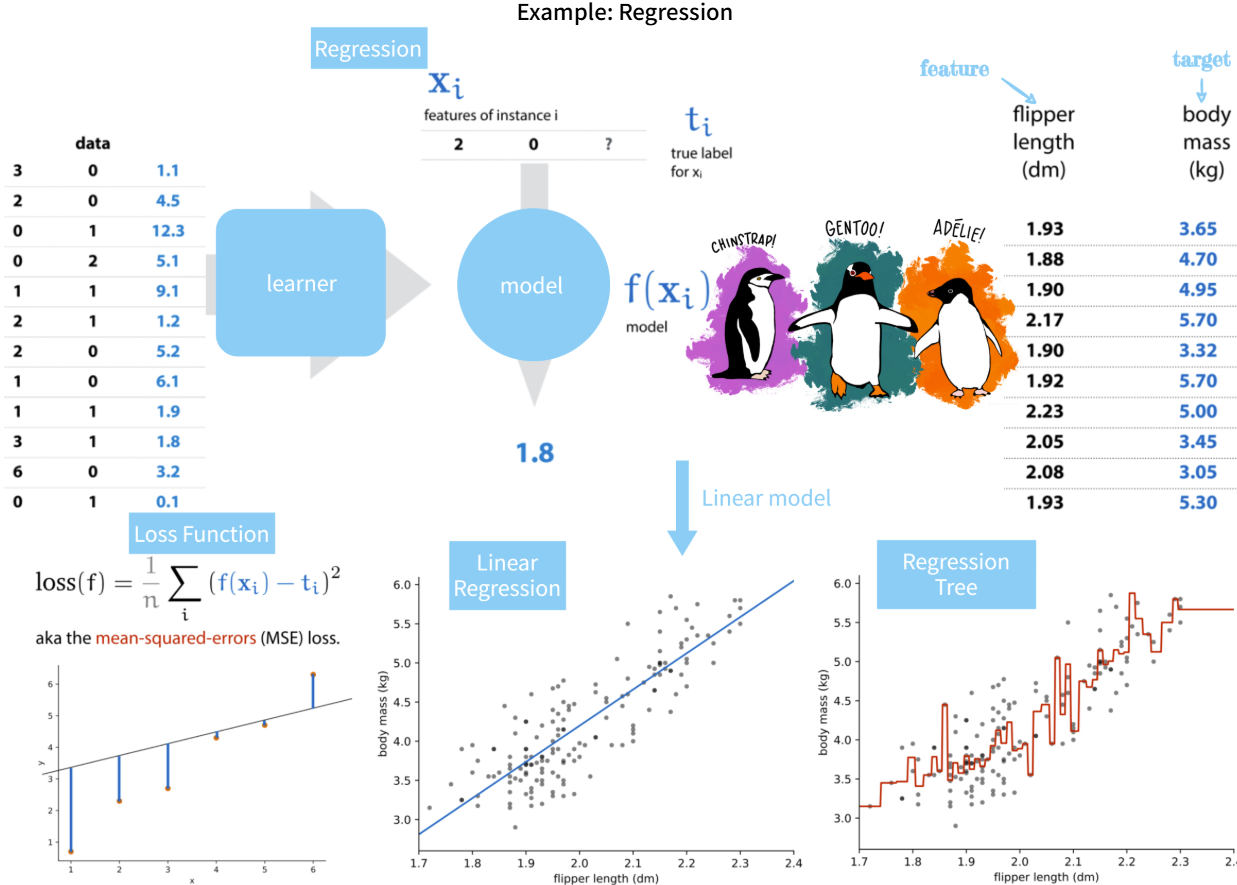

Slide 11

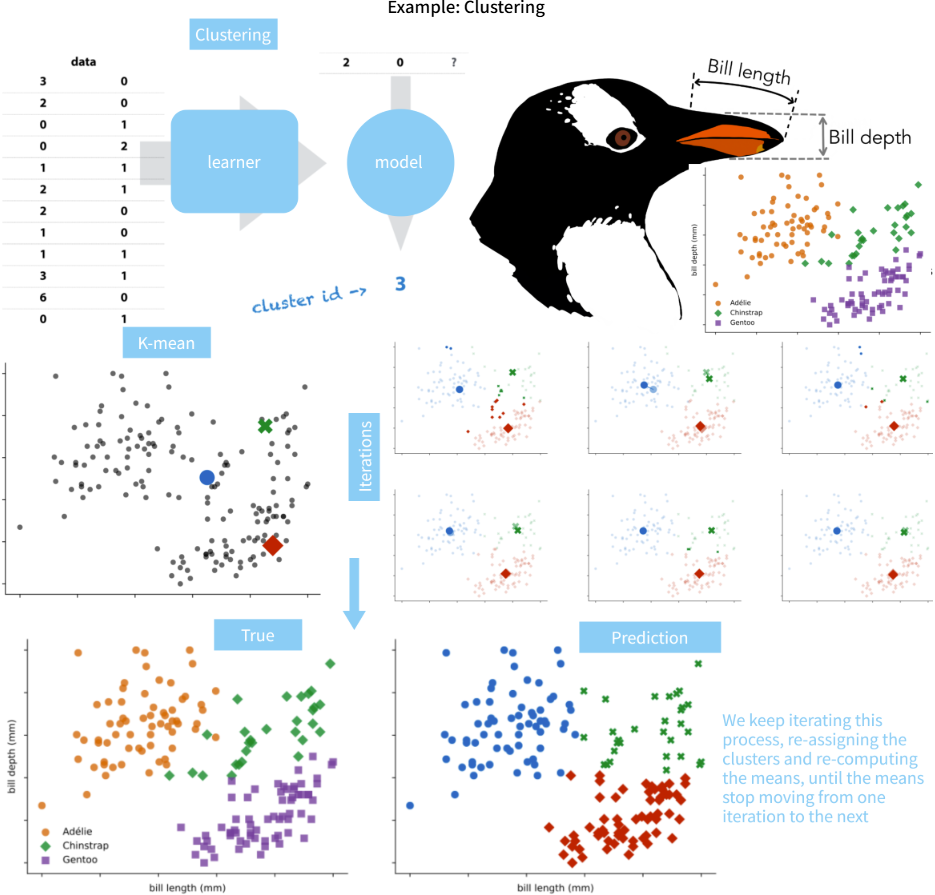

Slide 12

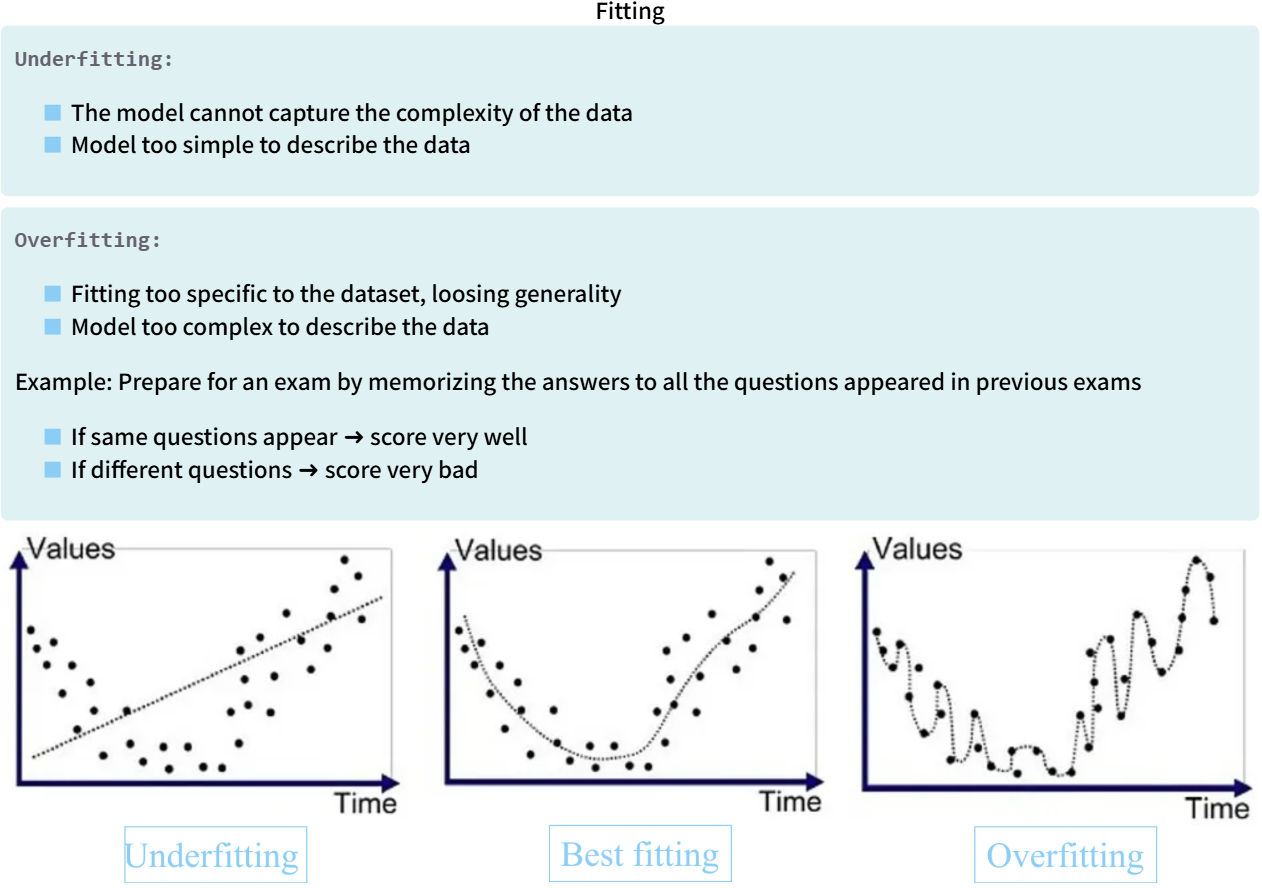

Slide 13

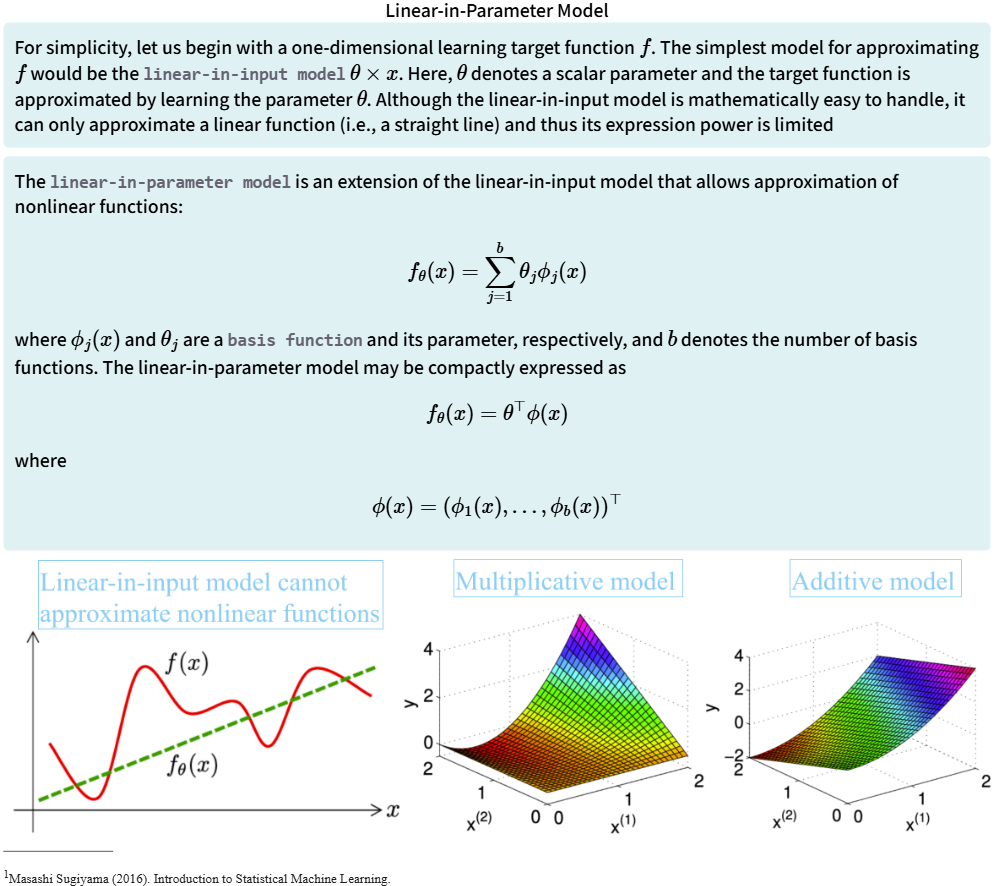

Slide 14

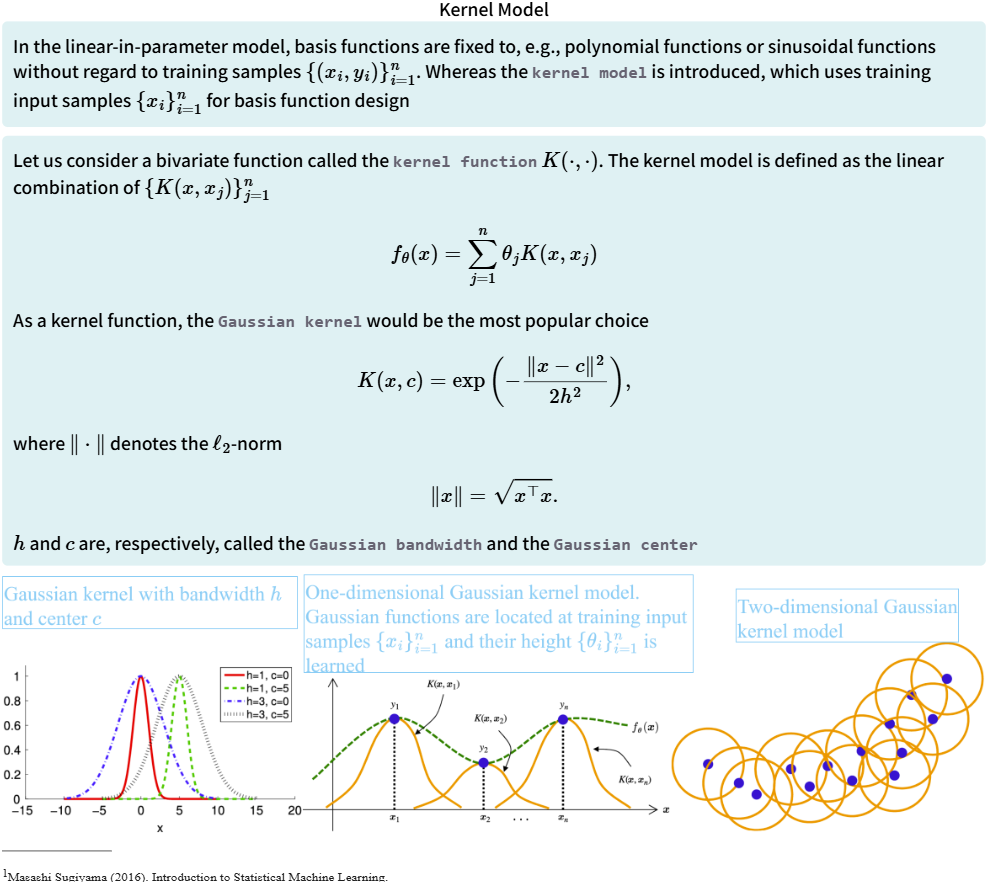

Slide 15

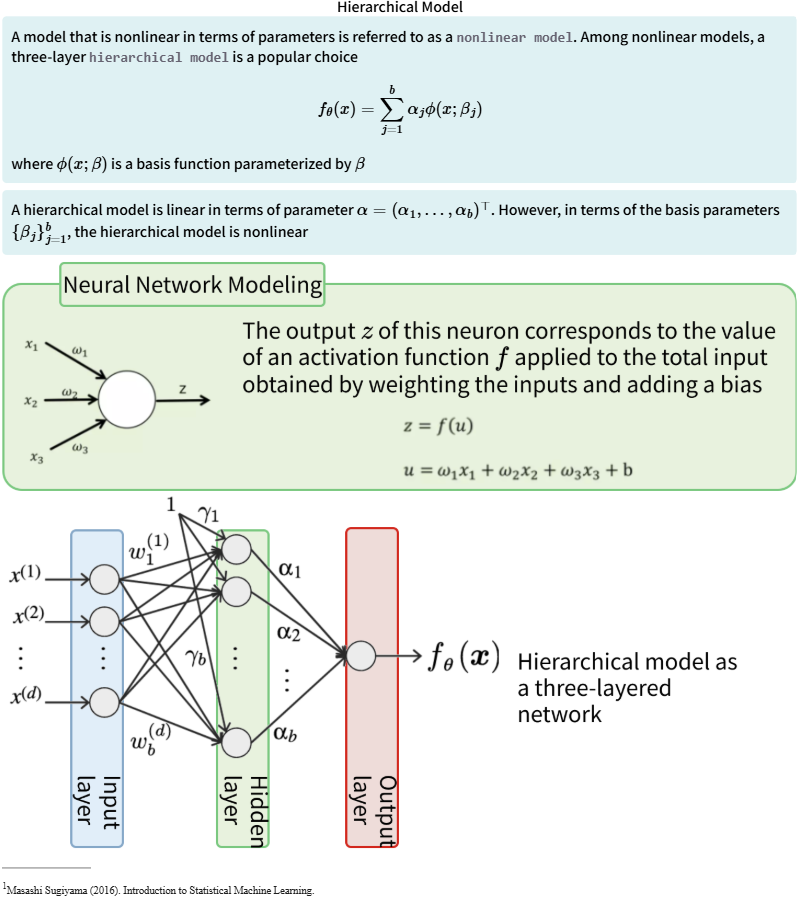

Slide 16

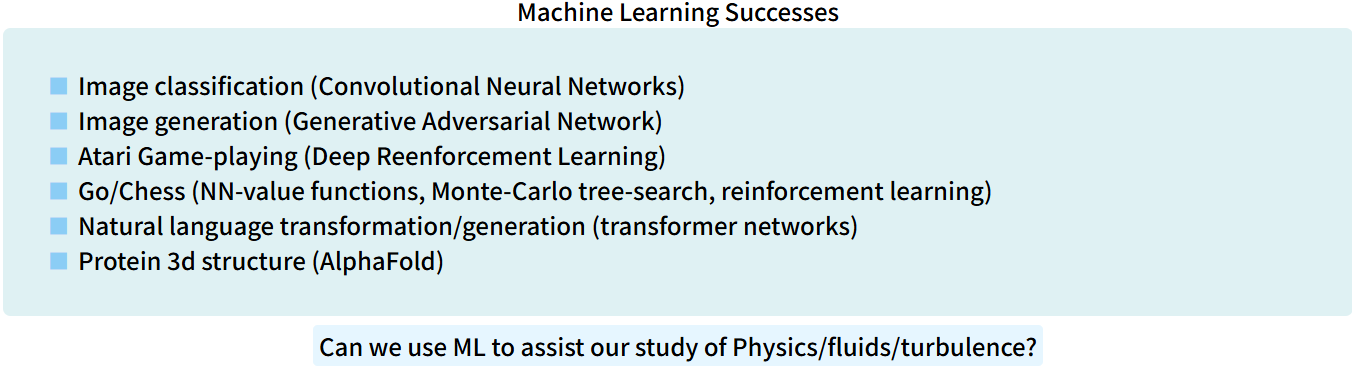

Slide 17

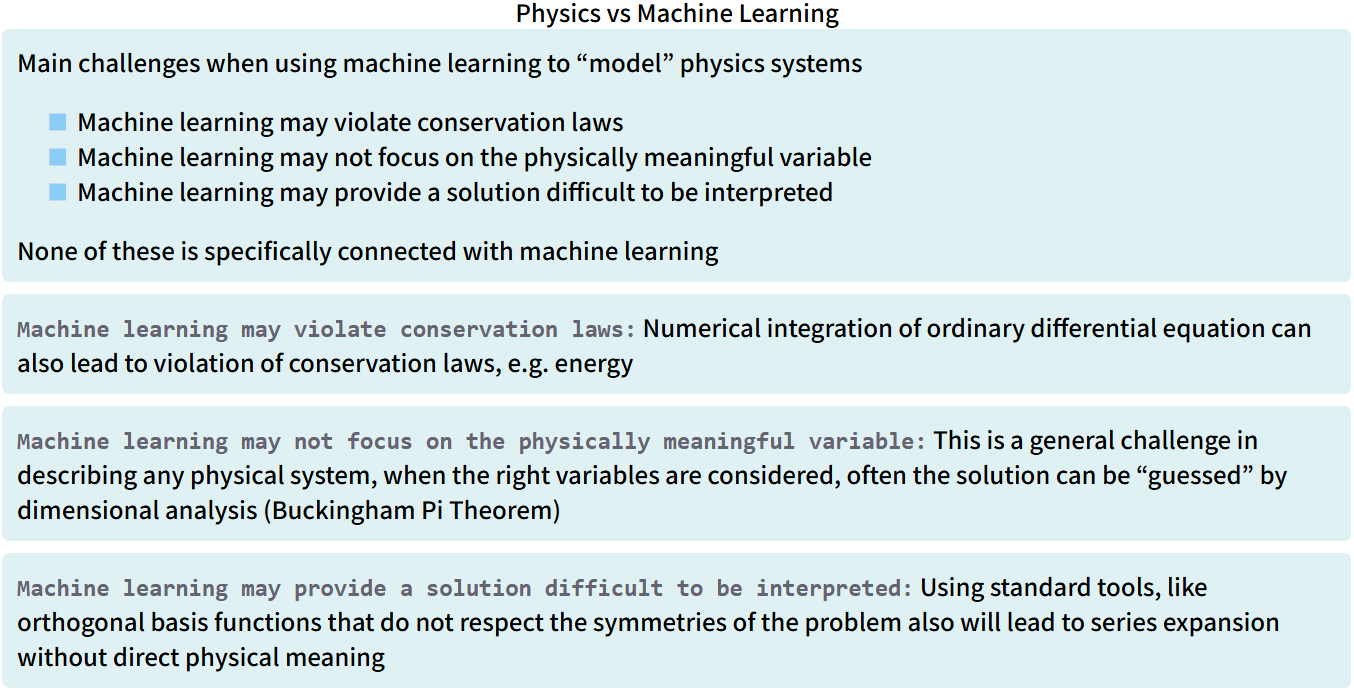

Slide 18

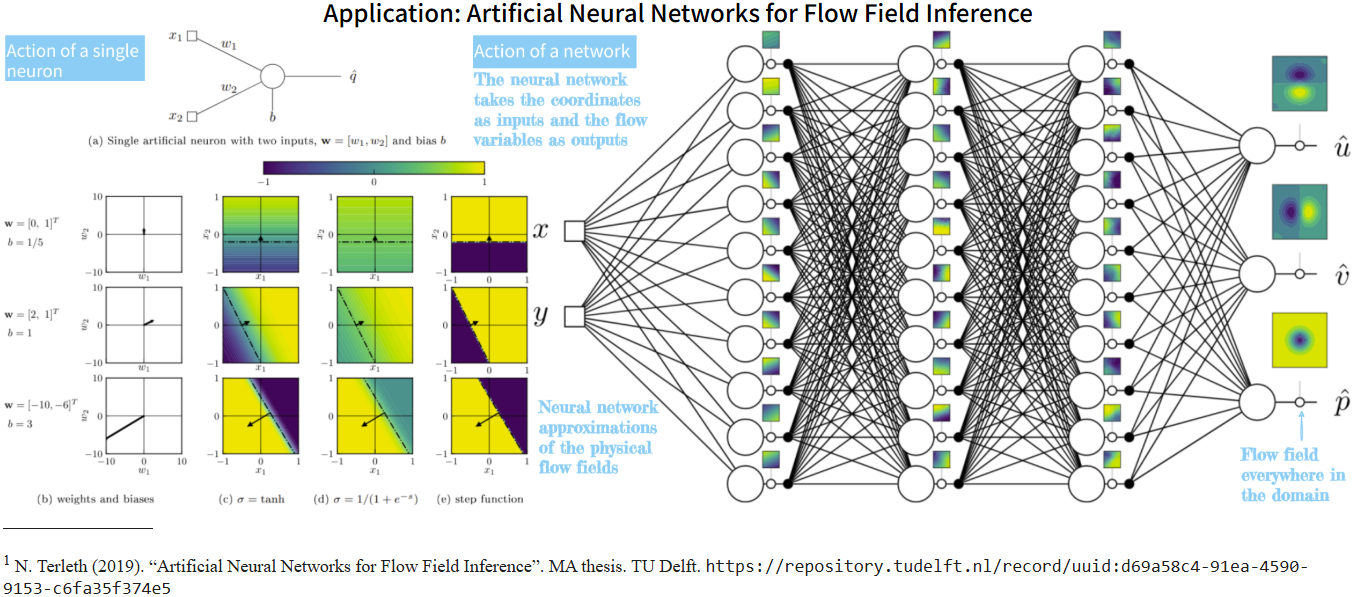

Slide 19

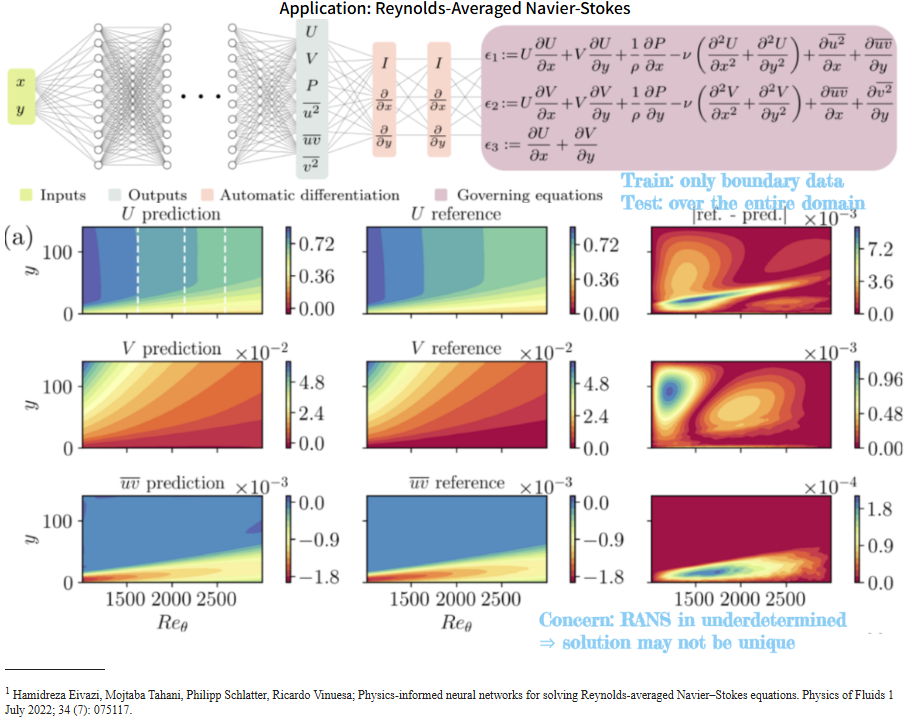

Slide 20

Slide 23

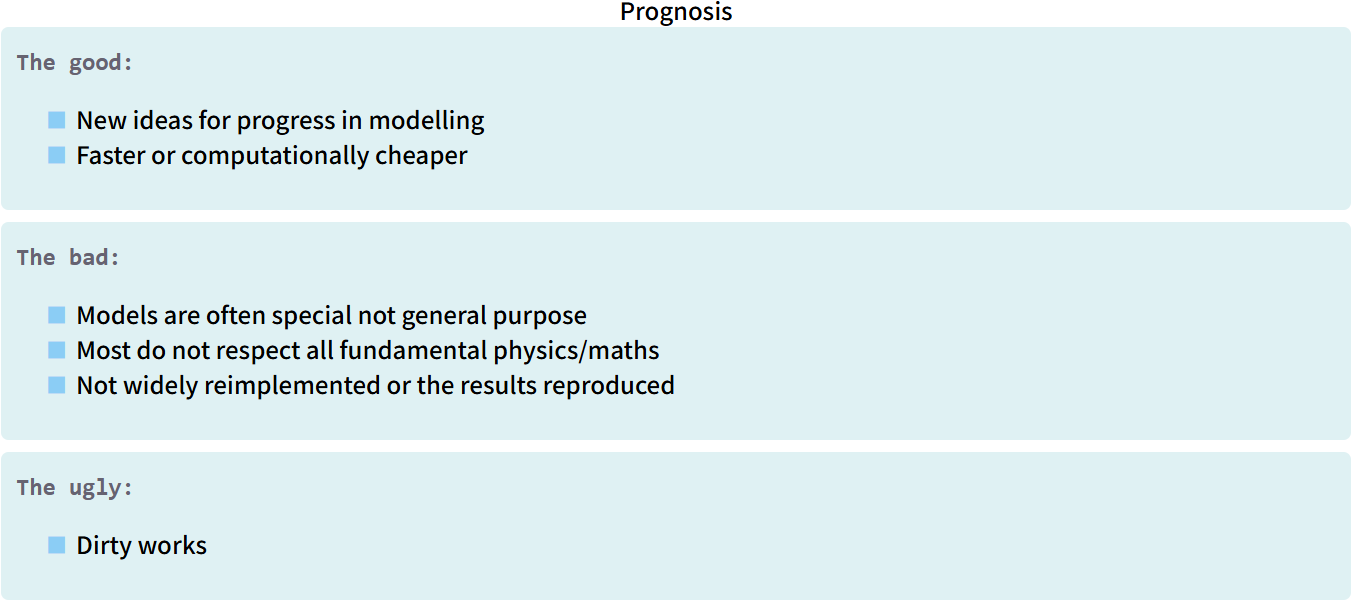

Slide 24

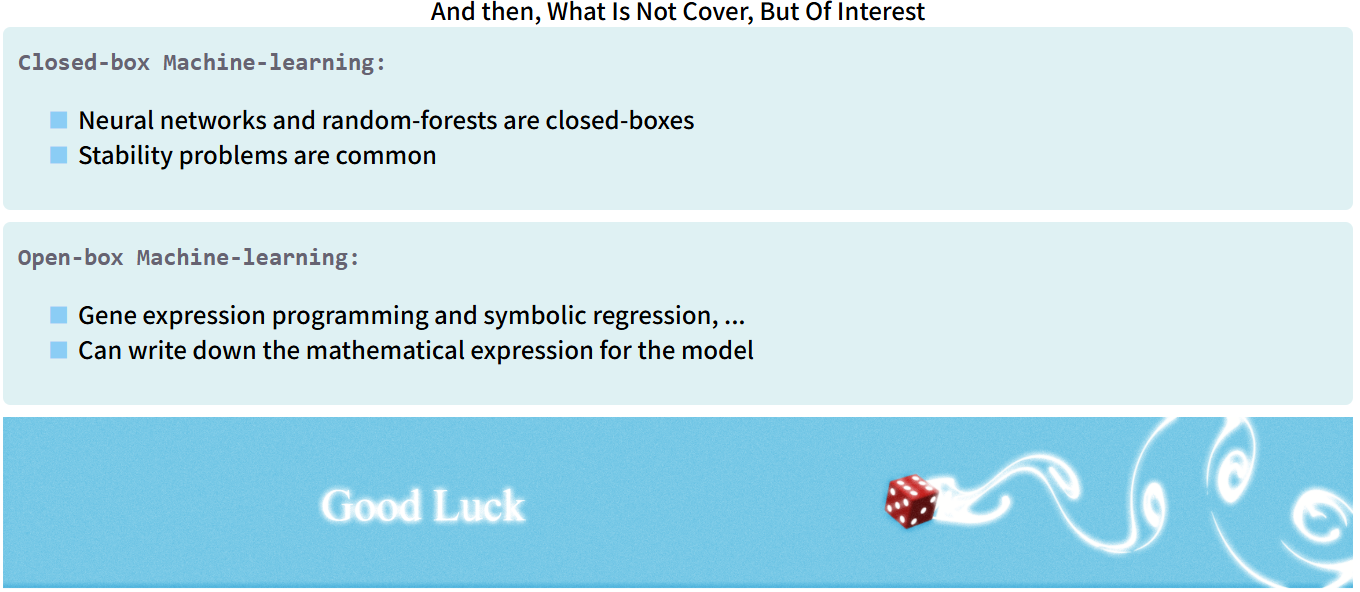

Slide 25
