Constant Surface Tension Boundary Condition

An integration variable substitution in the form \( \sin \xi = x/\sqrt{2R_1 \zeta} \) allows the integral to be evaluated: \[ (\mathbf{F}_{st})_z = \mathbf{e}_z \cdot \mathbf{F}_{st} = \pi \sigma \sqrt{2R_1 \zeta} \sqrt{2R_2 \zeta} \left( \frac{1}{R_1} + \frac{1}{R_2} \right) \] For static equilibrium, \( \mathbf{F}_p + \mathbf{F}_{st} = 0 \), so the evaluated results of \(\boxed{\mathbf{F}_p = - \iint_A \Delta p \, \mathbf{n} \, dA = - \Delta p \int_{-\sqrt{2R_1 \zeta}}^{+\sqrt{2R_1 \zeta}} \left[ \int_{-\sqrt{2R_2 \zeta - x^2 R_2/R_1}}^{+\sqrt{2R_2 \zeta - x^2 R_2/R_1}} (-x/R_1, -y/R_2, 1) \, dy \right] dx}\) and \(\boxed{\mathbf{F}_{st} = \sigma \oint_C \mathbf{t} \times \mathbf{n} \, ds}\) require \( \Delta p = \sigma \left( \frac{1}{R_1} + \frac{1}{R_2} \right) \), where the pressure is greater on the side of the surface with the centers of curvature of the interface. Thus in the absence of buoyant forces and fluid motion, a bubble in water will assume a spherical shape since that shape minimizes its radii of curvature, or equivalently, its surface area

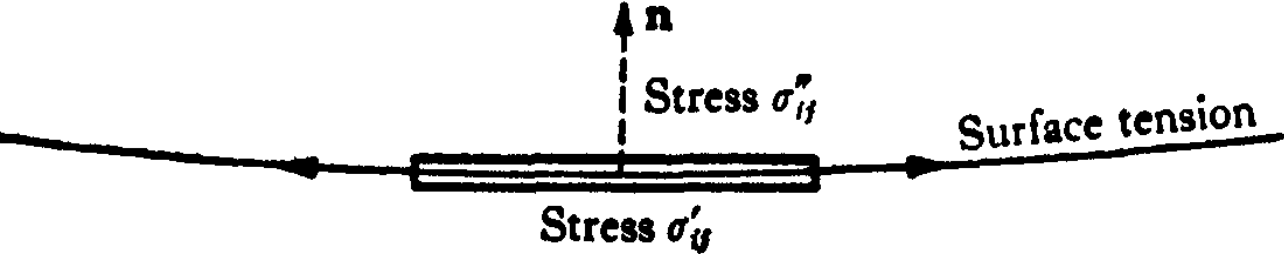

Relation between the stresses on the two sides of a boundary between two fluids

For air bubbles in water, gravity is an important factor for bubbles of millimeter size. The hydrostatic pressure in a liquid is obtained from \( p_L = p_0 - \rho g z \), where \( z \) is measured positively upwards from the free surface and gravity acts downwards and \( p_0 \) is the pressure at \( z = 0 \). For a gas bubble beneath the free surface: \[ p_G = p_L + \sigma \left( \frac{1}{R_1} + \frac{1}{R_2} \right) = p_0 - \rho g z + \sigma \left( \frac{1}{R_1} + \frac{1}{R_2} \right) \]Gravity and surface tension forces are of the same order over a length scale \( (\sigma / \rho g)^{1/2} \). For an air bubble in water at 288 K, this length scale is \[ (\sigma / \rho g)^{1/2} = [7.35 \times 10^{-2} \, \text{N/m} / (9.81 \, \text{m/s}^2 \times 10^3 \, \text{kg/m}^3)]^{1/2} = 2.74 \times 10^{-3} \, \text{m} \]

Analysis of surface tension effects results in the appearance of additional dimensionless parameters in which surface tension is compared with other effects such as viscous stresses, body forces such as gravity, and inertia

1 Batchelor GK. An Introduction to Fluid Dynamics. Cambridge University Press; 2000.
