Problem 4: Wave Packet and Group Velocity

Suppose that we have a linear system of waves characterized by a dispersion relation \(\omega = \omega(k)\) for the frequency \(\omega\) and wavenumber \(k\), and that there is a traveling wave solution of the form \[ \zeta(x, t) = A e^{i(kx - \omega t)} \] In view of the assumed linearity of the wave system, a general solution is represented in the form of the following integral (a Fourier representation): \[ \zeta(x, t) = \int_{-\infty}^{\infty} A(k) e^{i(kx - \omega t)} \, dk \] Consider a wavemaker which oscillates at a single frequency \(\omega_0\). Its amplitude first increased from zero to a maximum and then returned to zero again, slowly with a time scale much larger than the oscillation period \(2\pi / \omega_0\). By this wave excitation, it is found that most of the wave energy is concentrated on a narrow band of wavenumbers around \(k_0\). Hence, the dispersion relation is approximated by the following linear relation: \[ \omega(k) = \omega_0 + c_g (k - k_0), \quad \omega_0 = \omega(k_0), \quad c_g = d\omega/dk \] (The amplitude \(A(k)\) is regarded as zero for such \(k\)-values in which the above linear relation loses its validity.)

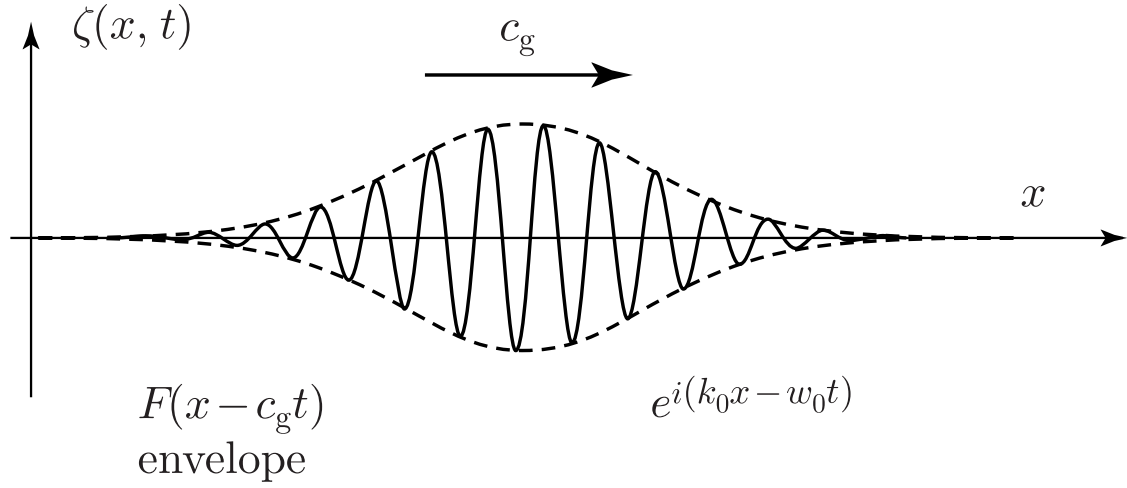

(1) Show that the resulting wave would be given by the following form of a wave packet, with \(\xi = x - c_g t\): \[ \zeta(x, t) = F(\xi) e^{i(k_0 x - \omega_0 t)} \] In addition, write down the Fourier representation of the amplitude function \(F(\xi)\). The function \(F(\xi)\) is an envelope moving with the group velocity \(c_g\) and enclosing carrier waves \(e^{i(k_0 x - \omega_0 t)}\) within it

(2) When the Fourier amplitude is given by \(A(k) = A_0 \exp[-a(k - k_0)^2]\), which is a Gaussian function centered around \(k_0\), derive an explicit expression for the wave packet.

WavePacketGroupVelocity

1 This problem set contains 6 problems, and your final score will be based on the 4 problems on which you earned the highest scores.
