Grid Generation and Grid Independence

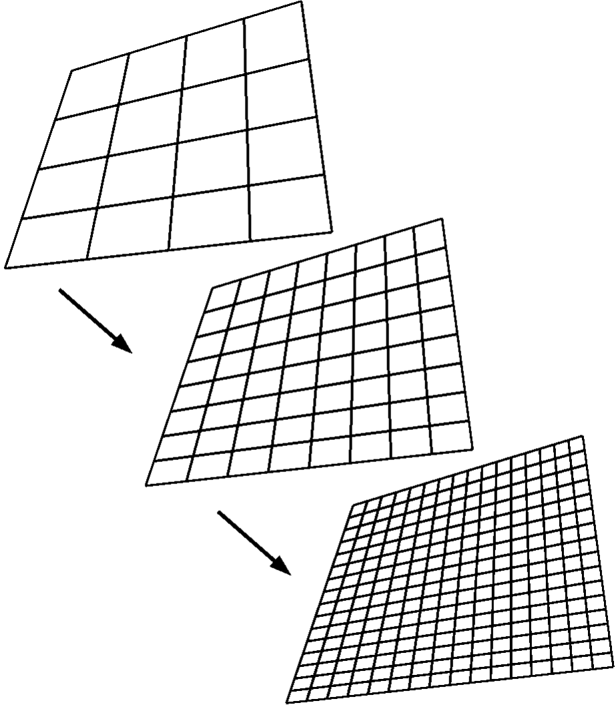

Multigridding is often used to reduce computation time, in which the flow field variables are updated first on a coarse grid so that gross features of the flow are quickly established. That solution is then interpolated to finer and finer grids, the final grid being the one specified by the user.

With multigridding, solutions of the equations of motion are obtained on a coarse grid first, followed by successively finer grids. This speeds up convergence.

Modern CFD codes include options for calculation of particle trajectories, species transport, heat transfer, and turbulence. The codes are easy to use, and solutions can be obtained without knowledge about the equations or their limitations. Herein lies the danger of CFD: When in the hands of someone without knowledge of fluid mechanics, erroneous results are likely to occur. CFD solutions are not guaranteed to be physically meaningful.

Multigridding

1Fluid Mechanics: Fundamentals and Applications Fourth Edition. Çengel and J. M. Cimbala, McGraw-Hill, New York (2018)
